TLS and SSL

Last Updated: • 2 min read

Provide security and data integrity between client and service.
TLS improves upon now-deprecated SSL: RFC 8996: Deprecating TLS 1.0 and TLS 1.1

  • Privacy – uses asymmetric and then symmetric Encryption and Encoding
  • Identity – server and client/server are verified
  • Reliability – protects connection against alteration of data in transit.

Though they don’t quite fit in OSI model:

Thus, in the OSI model, SSL/TLS must be in layer 6 or 7, and, at the same time, in layer 4 or below. The conclusion is inescapable: the OSI model does not work with SSL/TLS. TLS is not in any layer. packet - What layer is TLS? - Information Security Stack Exchange

TLS phases in when client initiates a connection to a server (the handshake).

Server Name Indication - Wikipedia which is an extension on TLS - is not supported by older browsers (One IP per multiple HTTPS websites with different certificates).

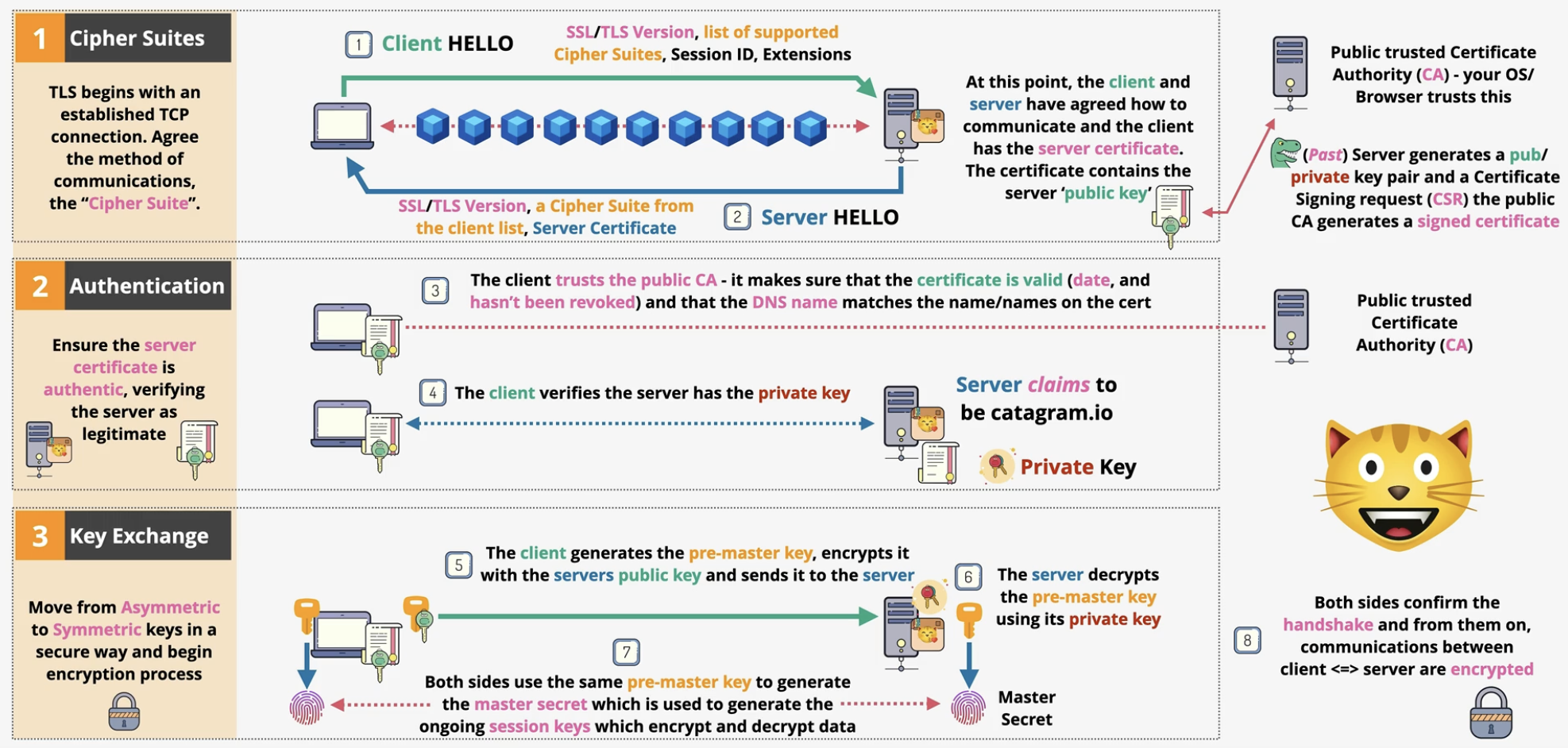

Stages

  • Cipher suite – a set of protocols used by TLS (including key exchange algorithm, bulk encryption algorithm and Message Authentication Code Algorithm (MAC)).
    • Client and a server must agree on cipher suite. Client provide cipher suites and SSL/TLS versions, Session ID, etc.
    • Server responds with Server Certificate with pub key and SSL/TLS versions, cipher suites
    • Asymmetric at transit encryption established
    • In the past, server has generated pub/priv key pair and CSR. Submitted it to public CA and in return received a Signing certificate
  • Authentication – ensure that Certificate is authentic, verifying the server as legitimate.
    • Client trusts public CA and verifies that the certificate was signed by CA, is not expired and wasn’t revoked and that the DNS name matches the name/names in the cert
    • Client attempts to encrypt some data and sends it to the server to verify that it has corresponding private key
  • Key exchange – here we move from asymmetric encryption to symmetric (for ease of computation)
    • Client generates Pre-Master Key, encrypts it with server’s public key and sends it to server.
    • Server decrypts it with Private key now it has Pre-Master Key.
    • Now both hosts convert Pre-Master Key into a Master Secret
    • Master key is used to generate session keys which will encrypt and decrypt data in a session.
    • Handshake is confirmed, encrypted connection is established
