Data Design and Pipelines

Data modelling

1. Conceptual data model
   1. Diagrams, papers, relationships to business requirements
2. Logical data model
   1. Schema definition, indexes
3. Physical data model
   1. How data stored physically, buckets disks, file structure etc.

Star and Snowflake schemas

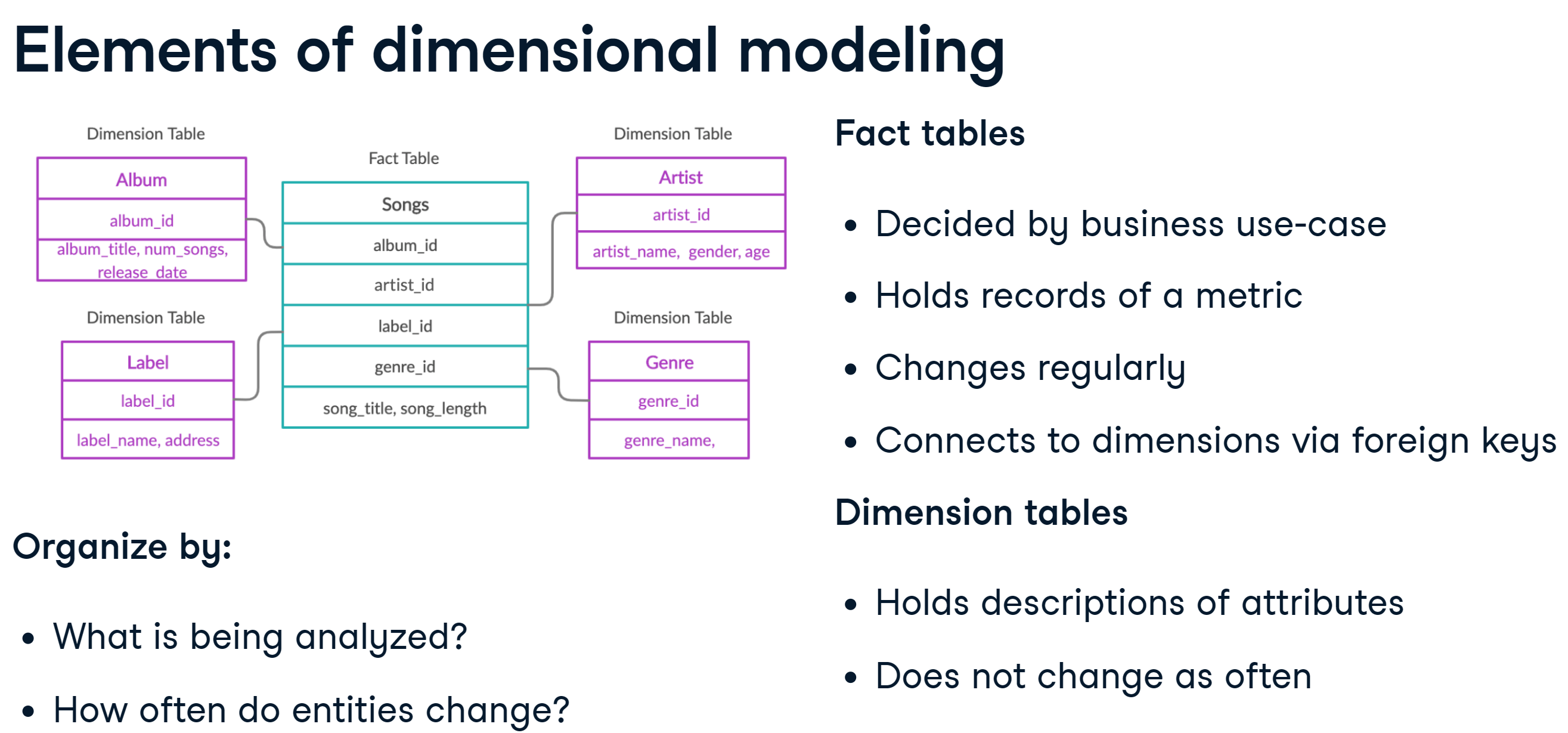

(Fact tables contain measurements and metrics, which this table has in song length, and unit price. In addition, the artist and genre ids can be used to join dimensional tables to provide more details about the song length or unit prices.)
Based on dimensional¹ modelling

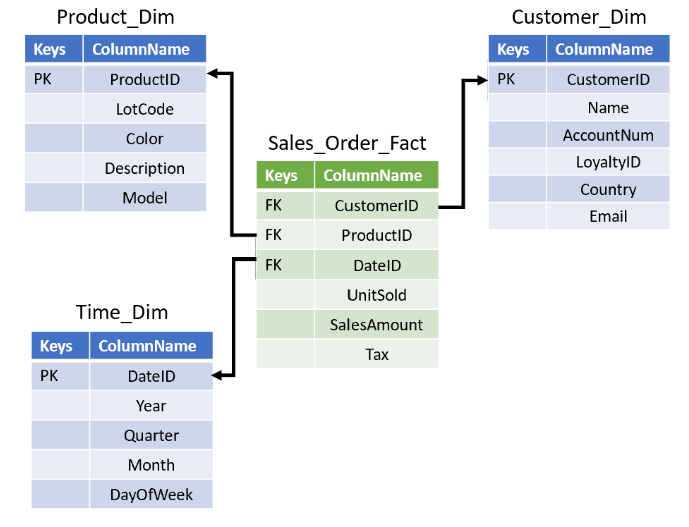

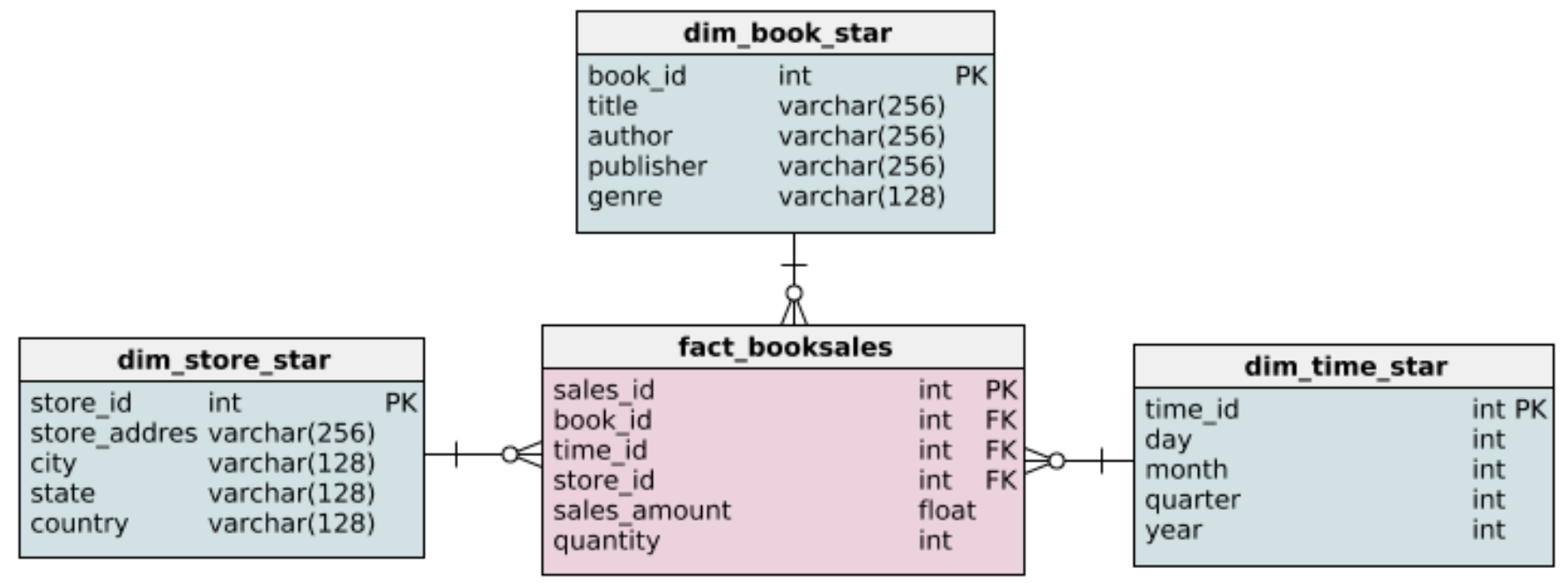

Start schema is one to many that look like a star.

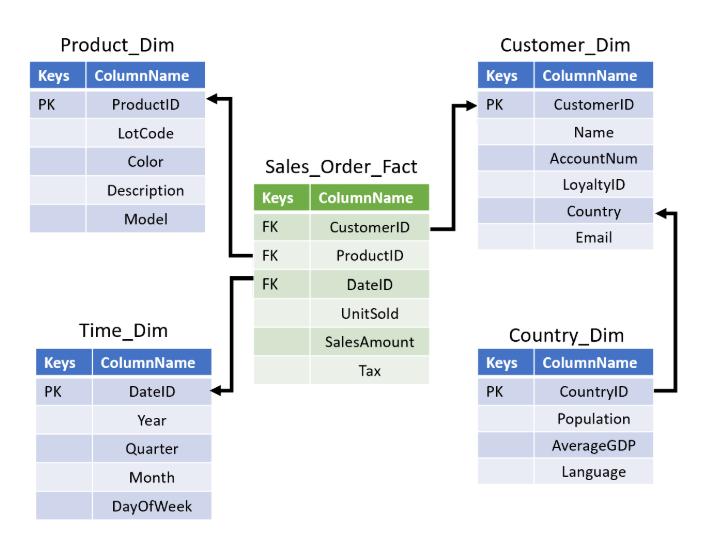

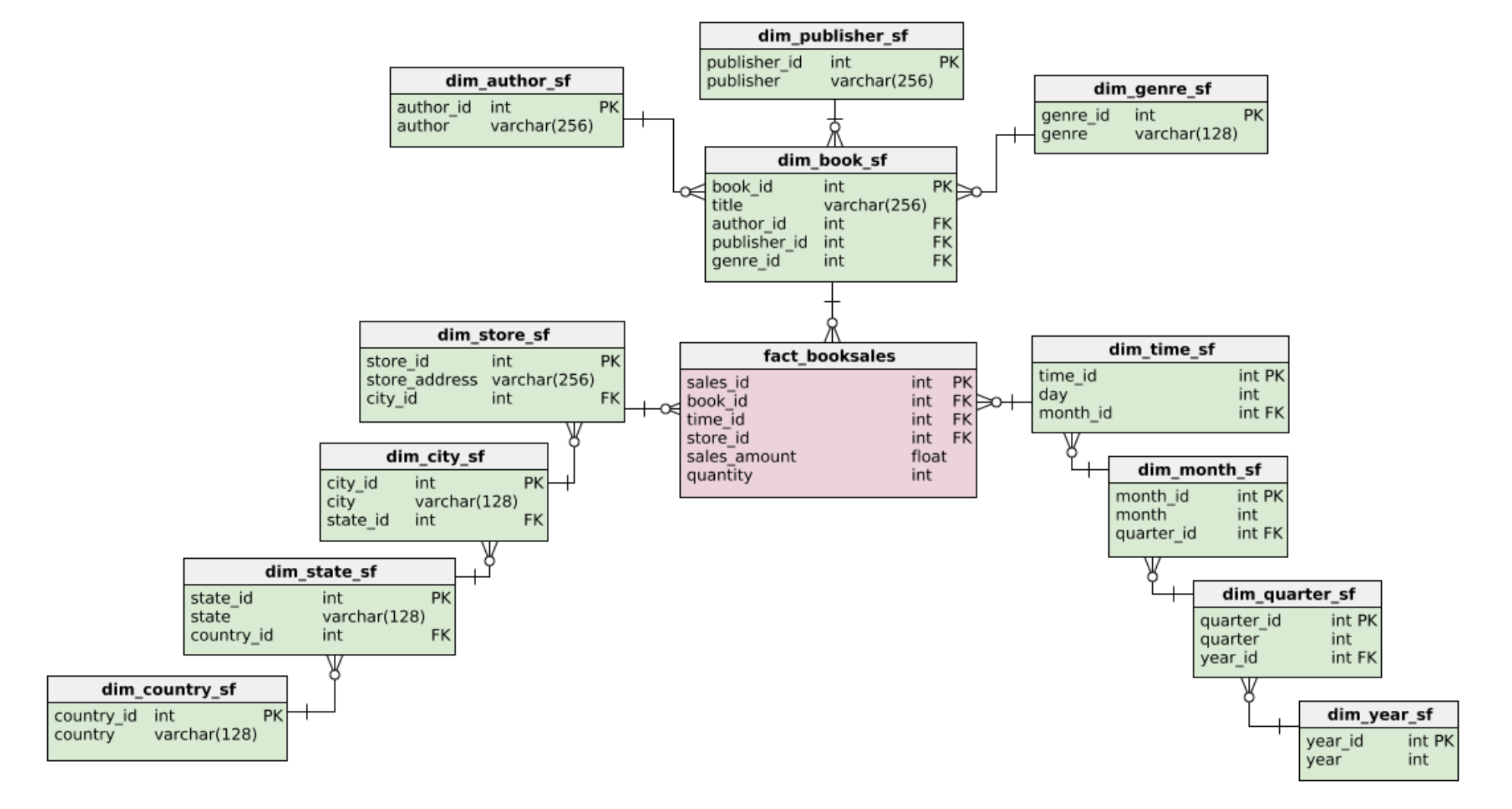

Snowflake is a cascading enchanced start schema

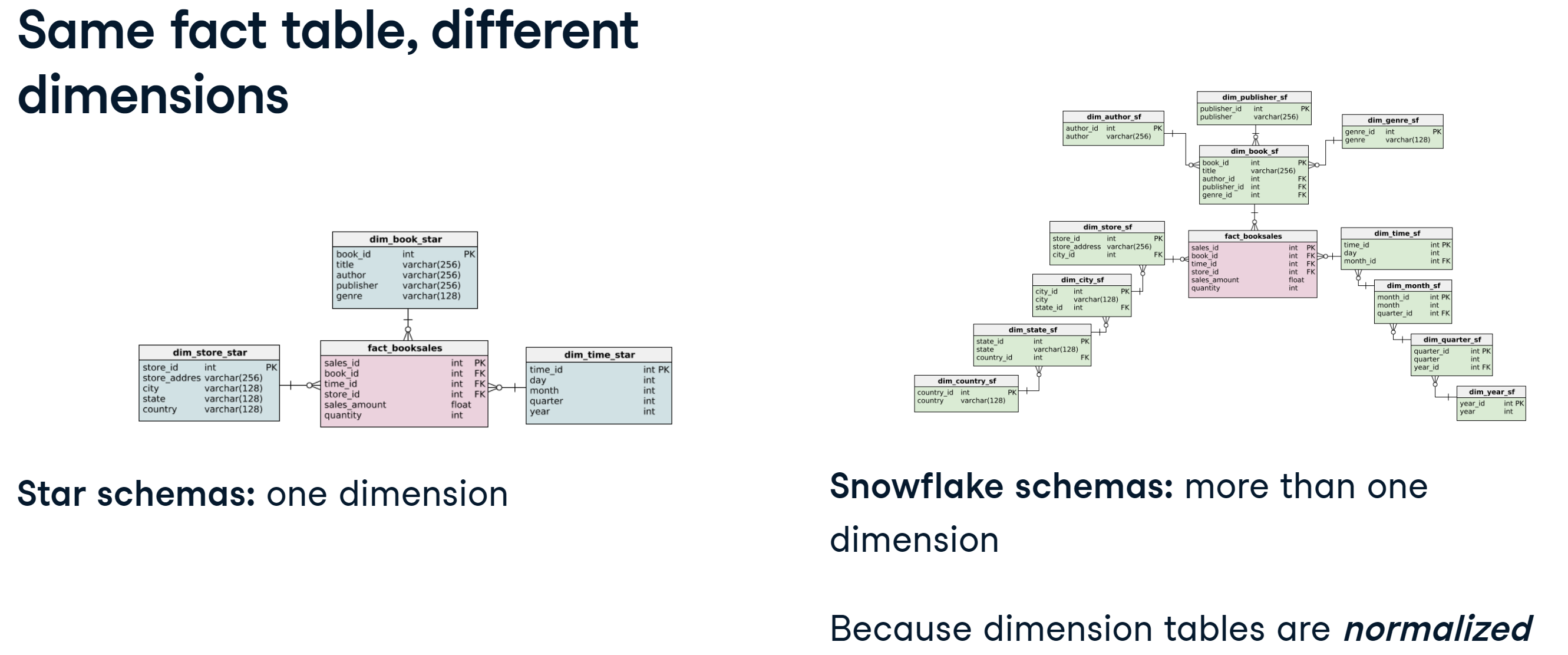

Schemas same in fact table, but snowflake does normalization while star is denormalized

Data storage

Note

Data stored in Data Lakes and after processing in can be used as information in Data Warehouses or elsewhere. Data lakehouses combine both concepts.

Database is a general term which can include RDBMS and Data warehouses.

• Data Lakes
  • Do not enforce models on data
  • schema-on-read
  • Any data type can be stored, especially all raw data
  • Generally much bigger than warehouses
  • Harder to analyze.
  • Optimized for cost efficiency

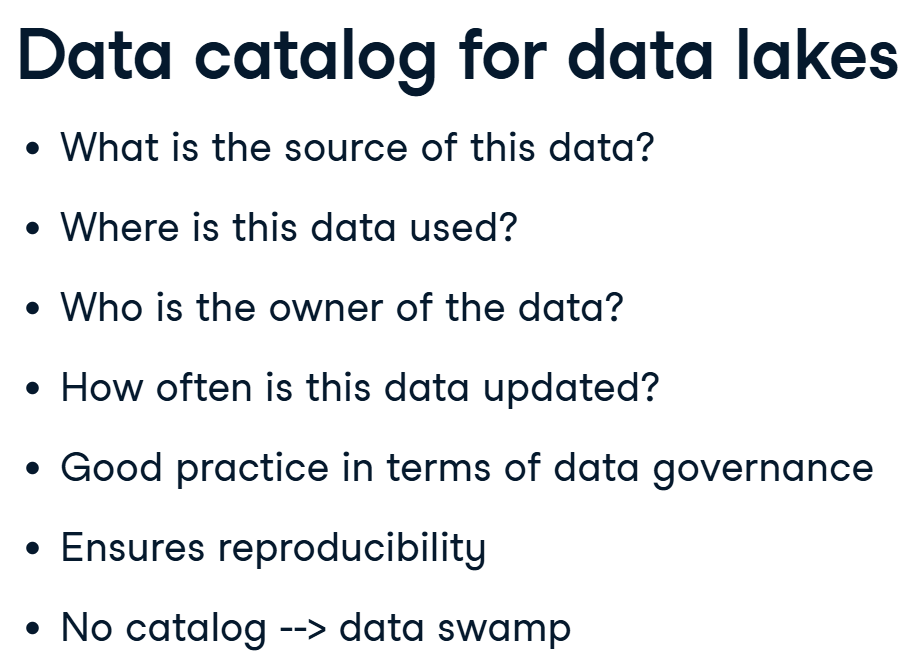

  • Requires up-to-date catalog

• Data warehouse
  • Enforce model and structures
  • Smaller than lakehouses
  • Easier to analyze
  • Generally use star schema for dimensional modelling which enables more effective OLAP queries.

Data integration

When integrating data, you need to ask several questions:

1. What is the purpose?
2. Who is the target audience of the data integration?
3. In what formats data is contained?
4. How often will you pull/receive data?

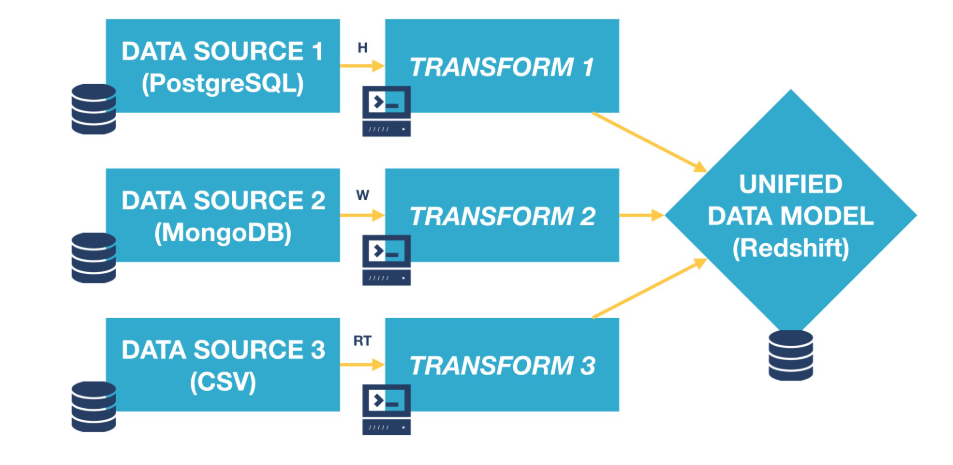

   Integration is done through transformations, they vary. If it’s a handcoded solution, then be wary and avoid maintenance costs if possible.

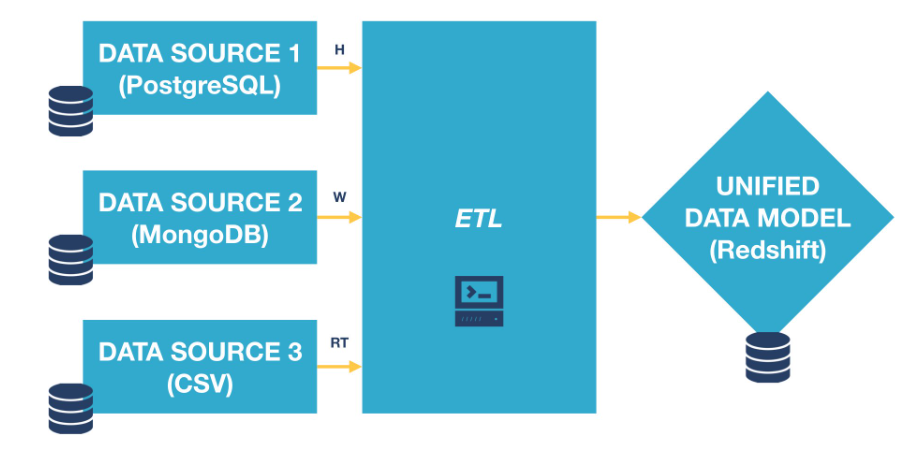

   An extension on the transformation idea is ETL and ELT. These approaches becoming a standard, they combine multiple stages of data integration and process data from multiple sources. Popular tools are Databricks, Apache Spark or Redshift. The tool must be flexible with many data formats, reliable and scalable, as always.

Pay attention to security and anonymization, to prevent access to PII, PHI and other sensitive information to unauthorized parties and employees.

Consider as a part of data governance consider data linage, you should know where data originated from can be achieved with DAG and how it works and other tools.

Processing

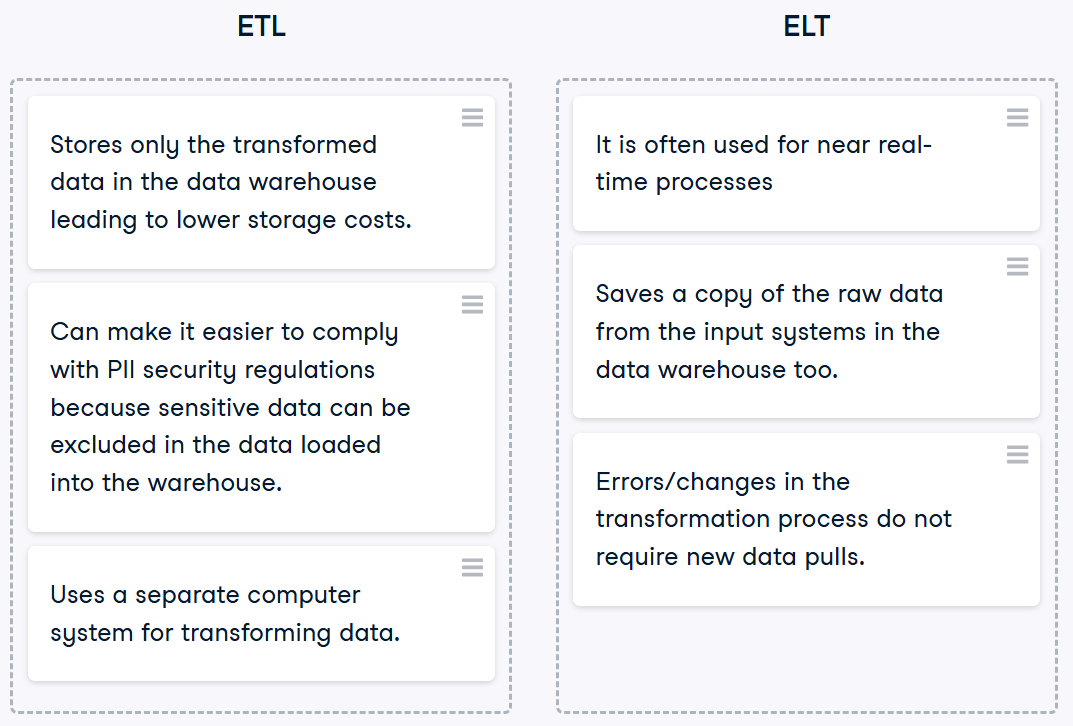

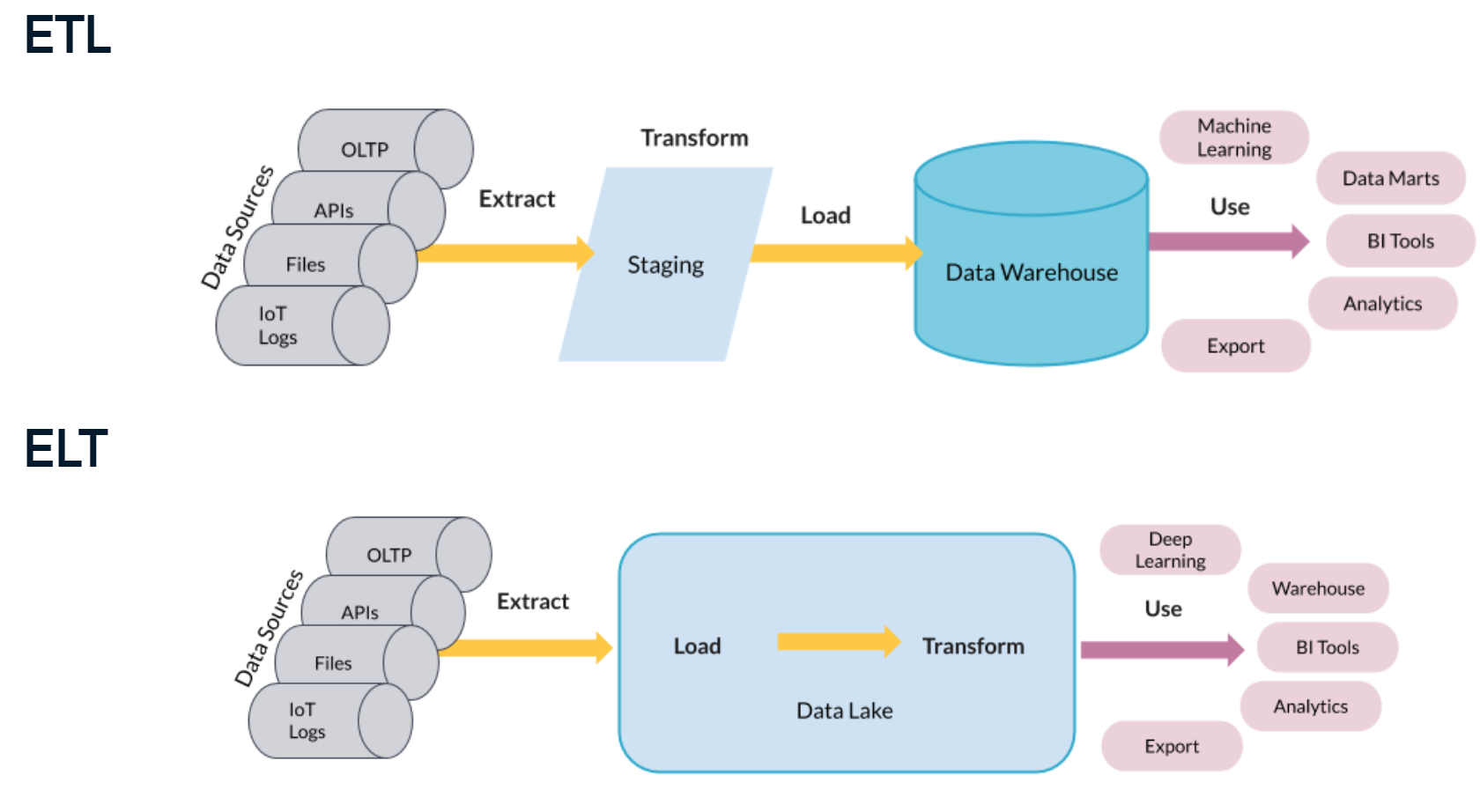

ETL and ELT

ABBREVIATION

E - Extract
T - Transform
L - Load

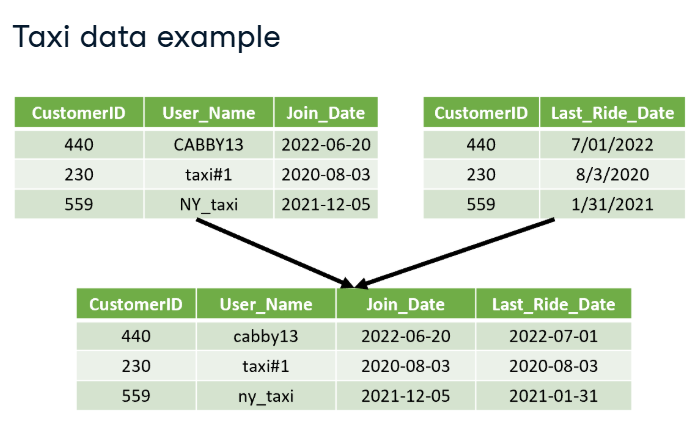

Data cleaning

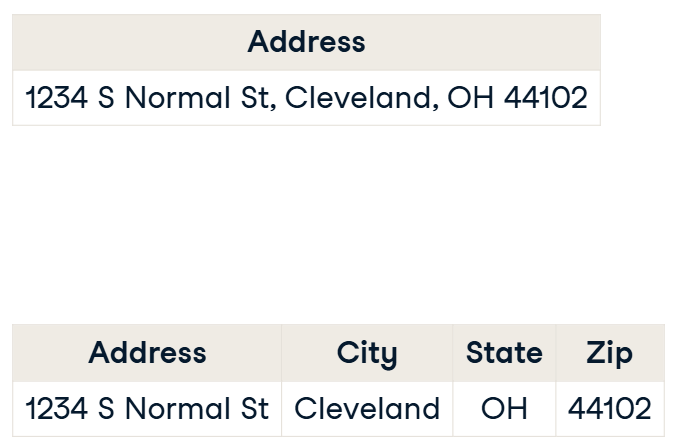

• Format



  Or adresses



Data validation and checks

Validate age, and data type. Best to fix it as the source.
Deduplication.
Having good data governance rules can reduce the ammount.

Link to original

Footnotes

1. A Data Dimension is a set of data attributes pertaining to something of interest to a business.  Examples of dimensions are things like “customers”, “products”, “stores” and “time”. ↩
