Apache Kafka

General Theory

Topics

Topic is a particular stream of data (can be compared to a table in db, but without constraints)

Topic replication

Replication is supported across brokers. Replication factor should be N > 1

Partition

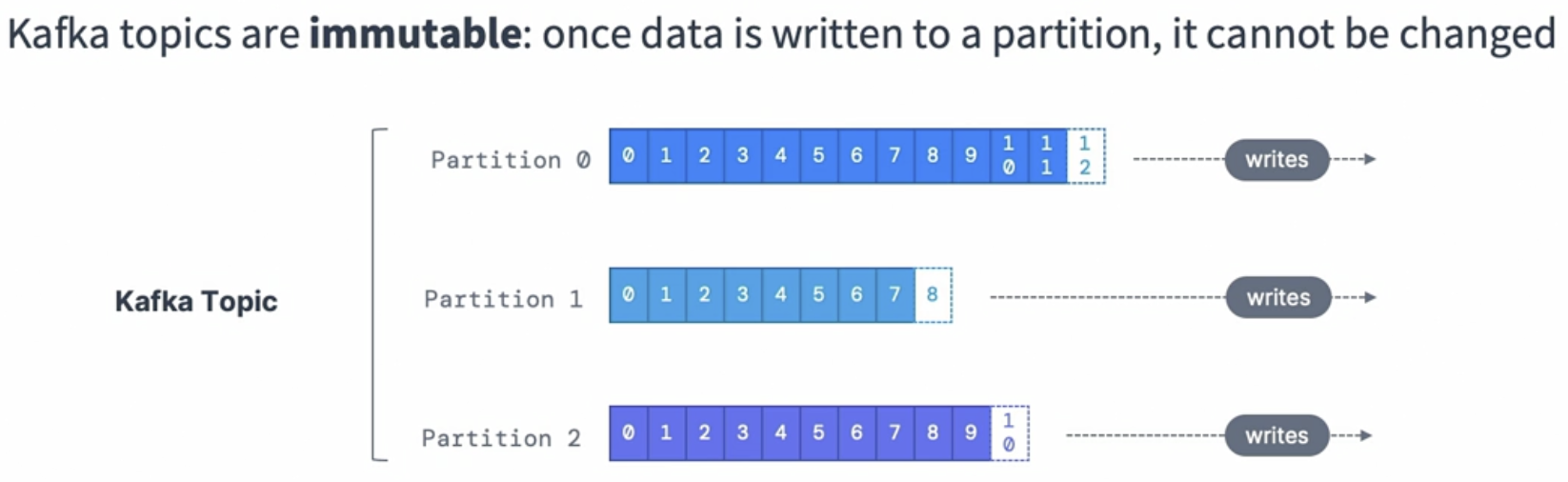

Partition is a division (categorization of stream) within topic.
Can’t be queried. Once written in - it is Immutable. Data is kept limited time.
Messages are ordered in partition with id, called offset, incrementally.

Offsets are not reused, so when you delete msg with offset 3, this number will not be applied again in the partition.
Data is ordered only within partition, not across.
If msg does not have partition key it will be assigned via round-robin.

Message magic

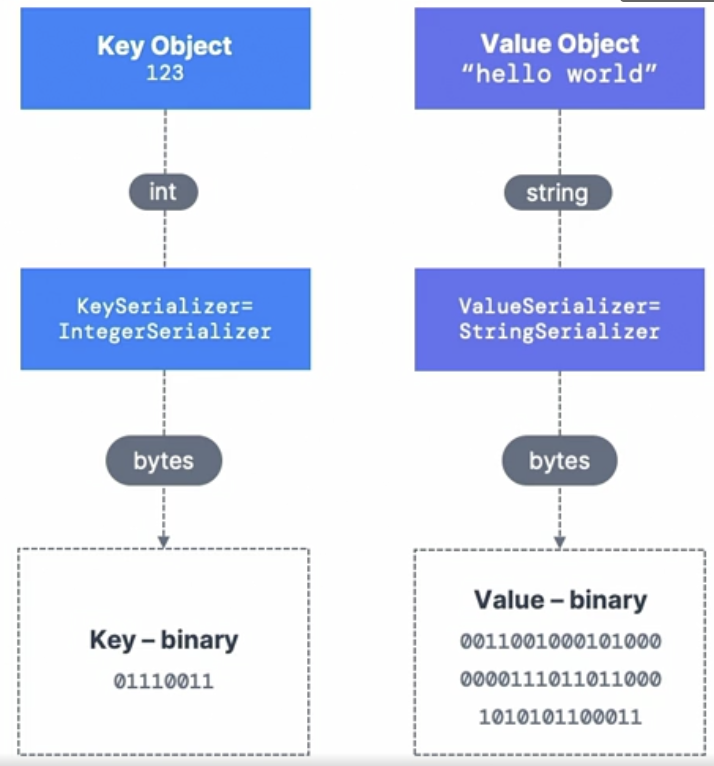

Message serializer – coverts keys data (key/value) in message to bytes (binary), done by Producer to compress data.

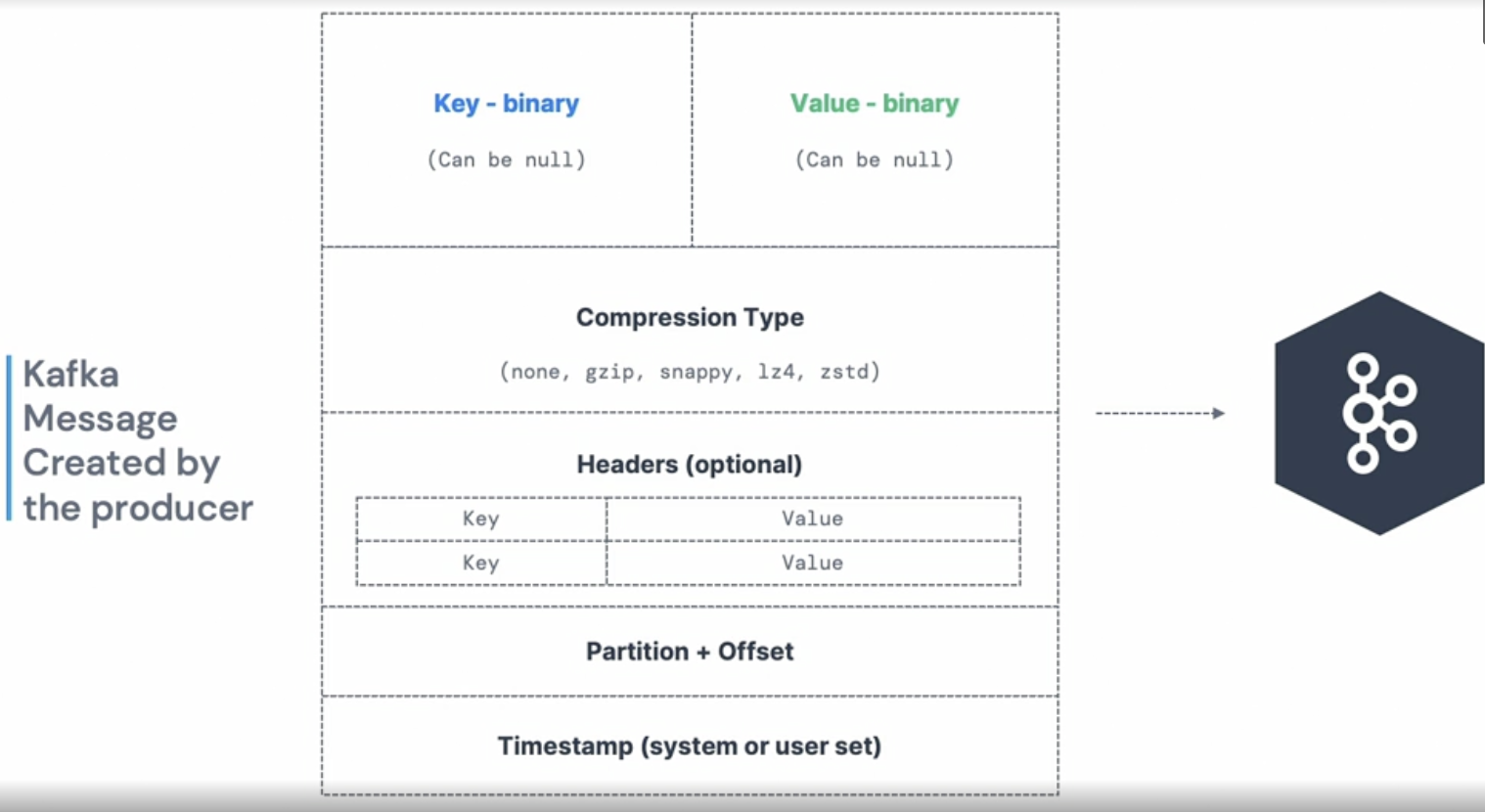

How it looks.

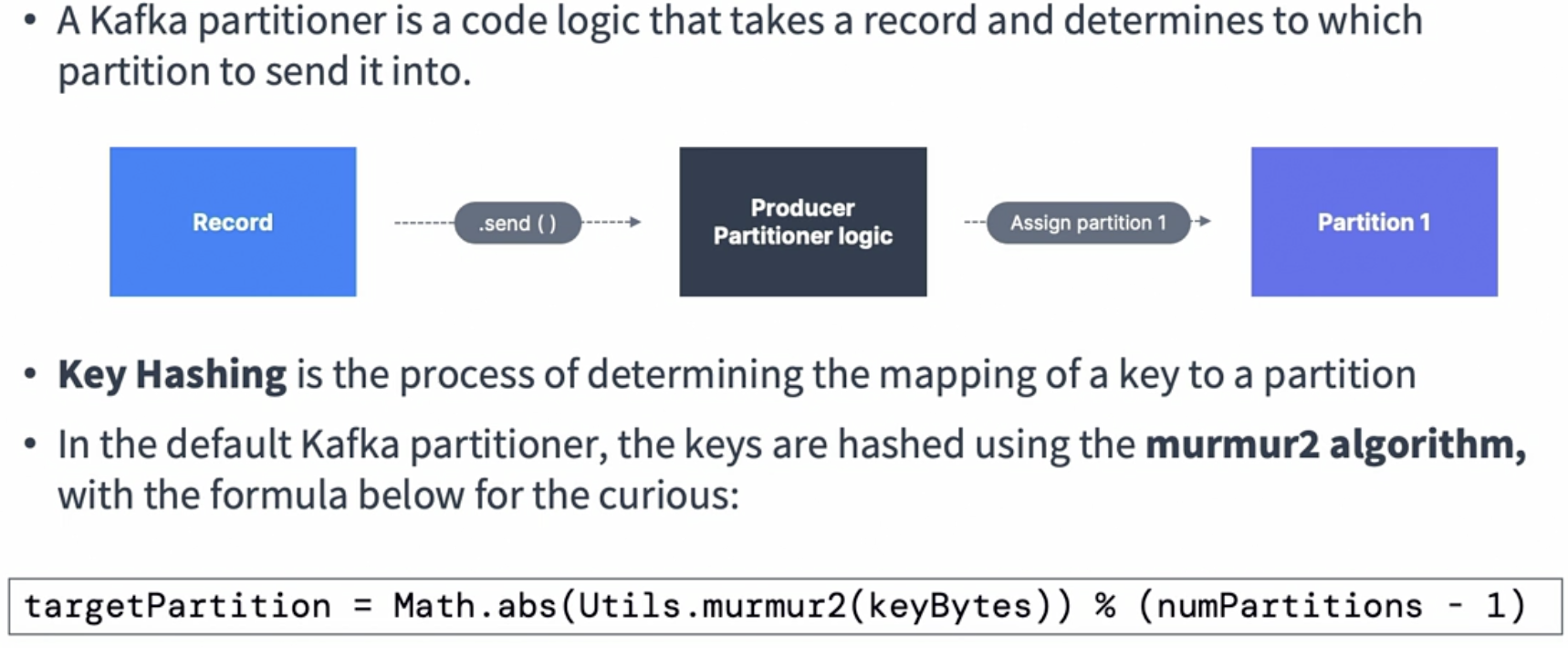

How hashing works

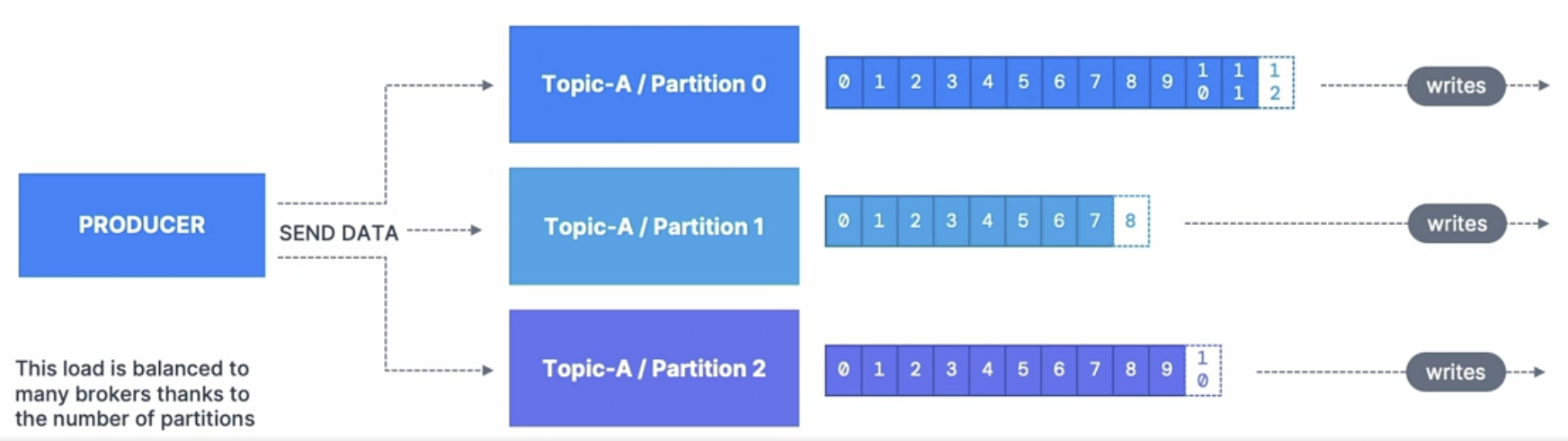

Producers

write to topics’, decides which partition.
Has self-recovery mechanism in case of Kafka broker failures.

key = null – send with round-robin algorithm
key != null – always send to one partition (hashing)
Kafka message has key, compression type, headers (opt), partition, offset, timestamp

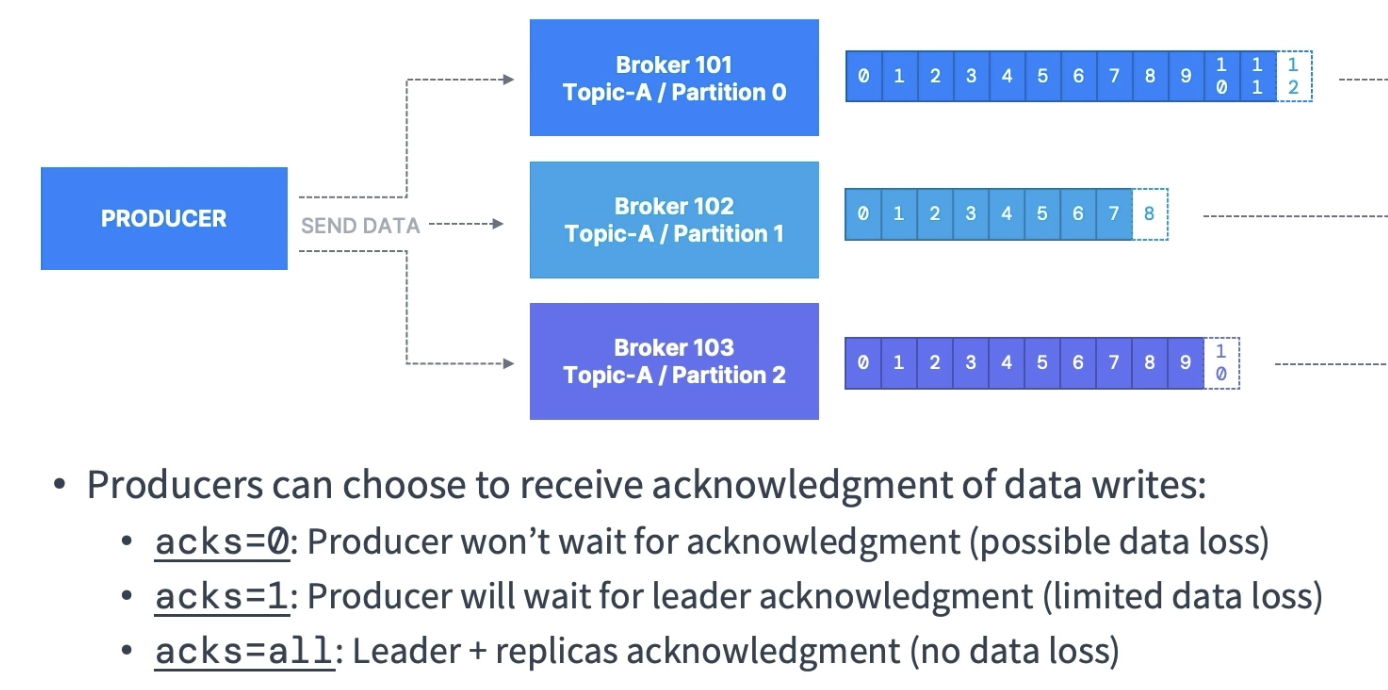

Producer can receive ACKs from Brokers to prevent data loss.

Consumer

Pulls data topic (identified by name). Know automatically from which broker to read from.
Self-recovery in case of broker failure. Can deserialize. Can be bundled in group within one application where each consumer reads from single partition and therefore covering whole topic.

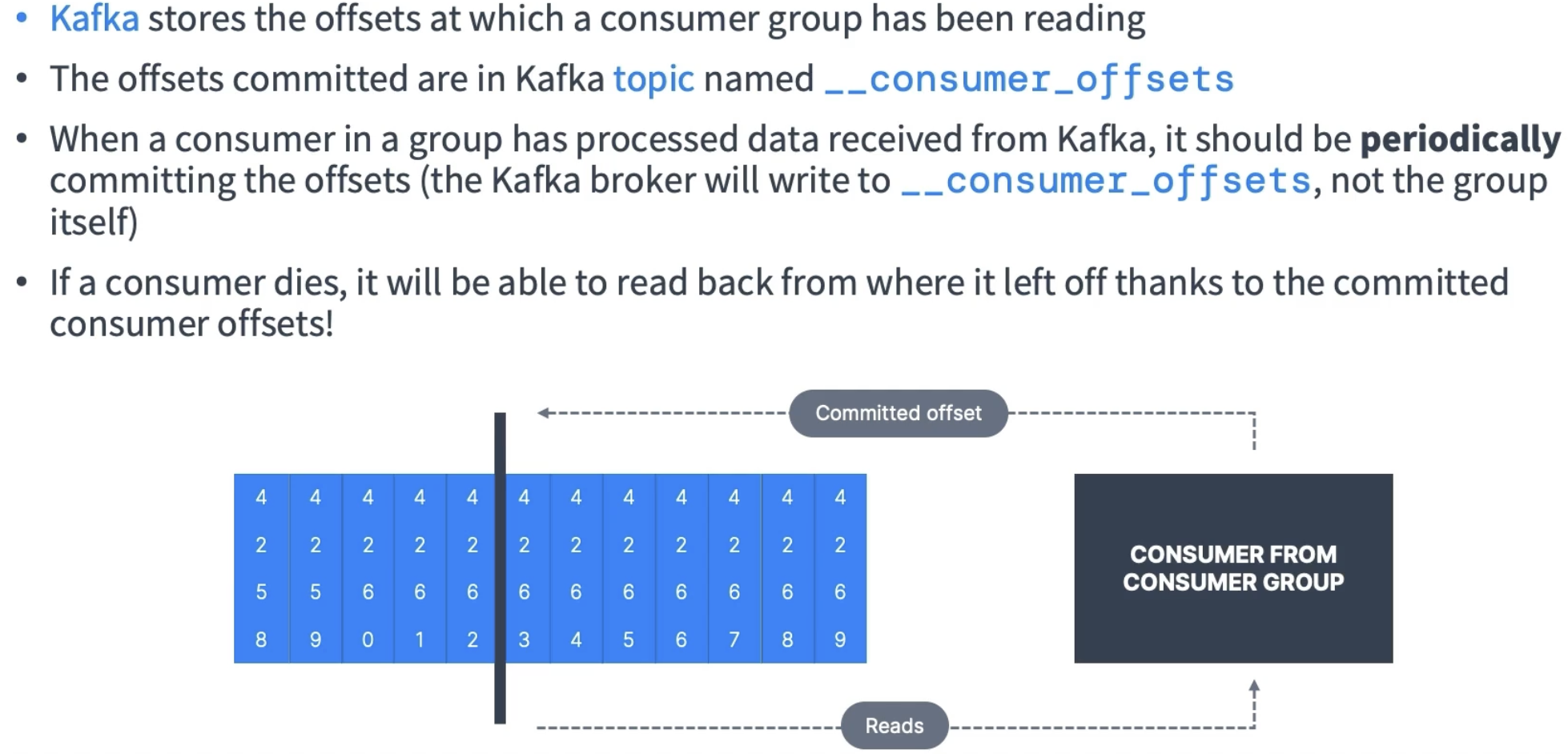

__consumer_offsets - special topic where consumers where they pick up left off progress. They commit what they read in this topic. Java consumers commit “at least once”, automatically.

At least once – offset commit after message was processed.
If processing fails, it can cause double processing. Prevent by idempotent design.
At most once – offset commit as soon as messages are received
If processing fails, some messages can be lost (won’t be read again).
Exactly once – only once.. Kafka to Kafka Workflows or Kafka → idempotent consumer.

Brokers

NOTE

Broker engines:
For 2.x – Zookeeper is required
For 3.x – Can switch Zookeper with Kafka Raft
For 4.x – Will not have Zookeper

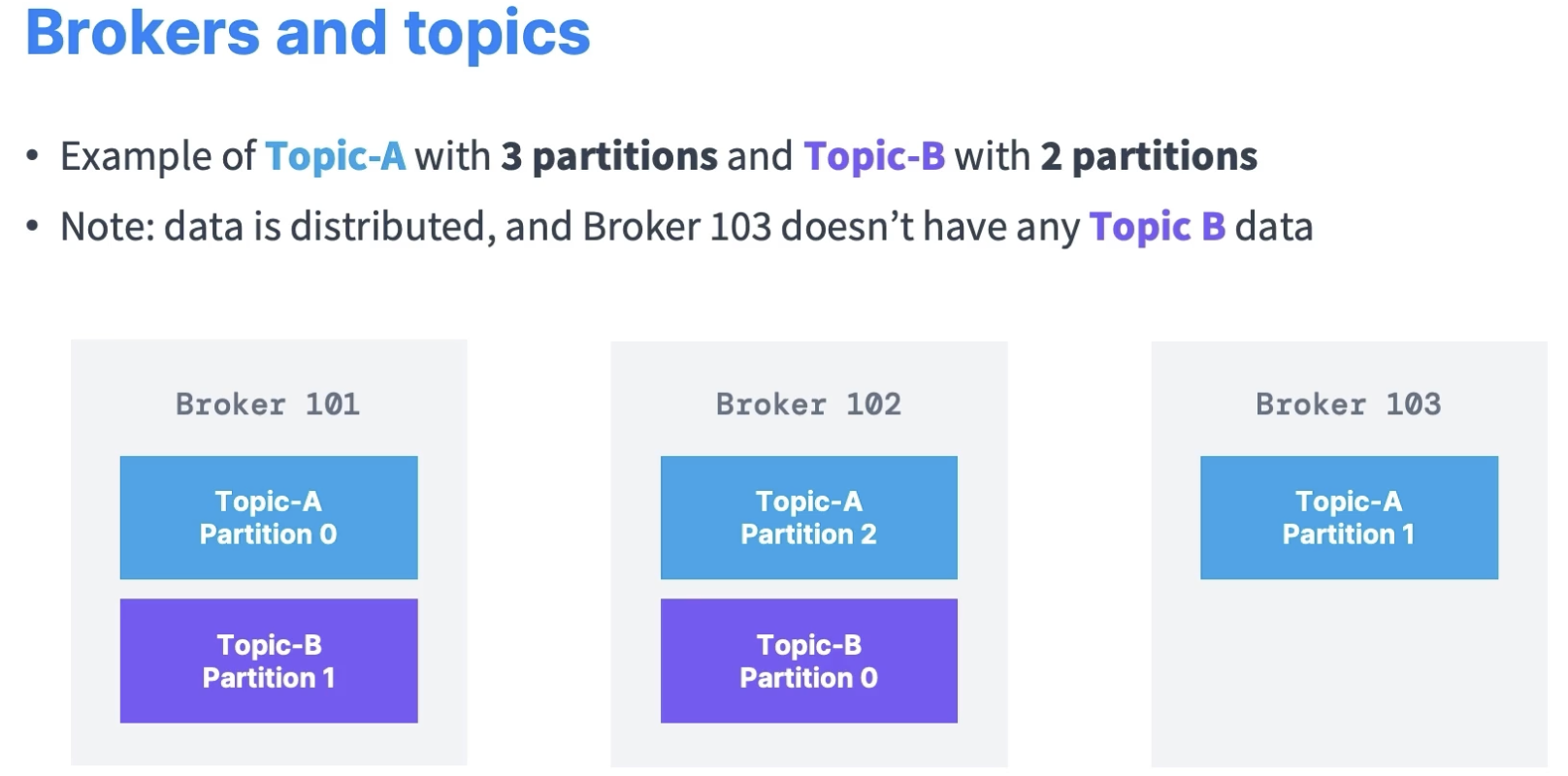

Contains topics. A cluster can have multiple of them. They have its own ID.

When connection to any broker, that one “Bootstrap broker” will automatically discover other brokers for consumers. Able to horizontal scale and distribute topics.

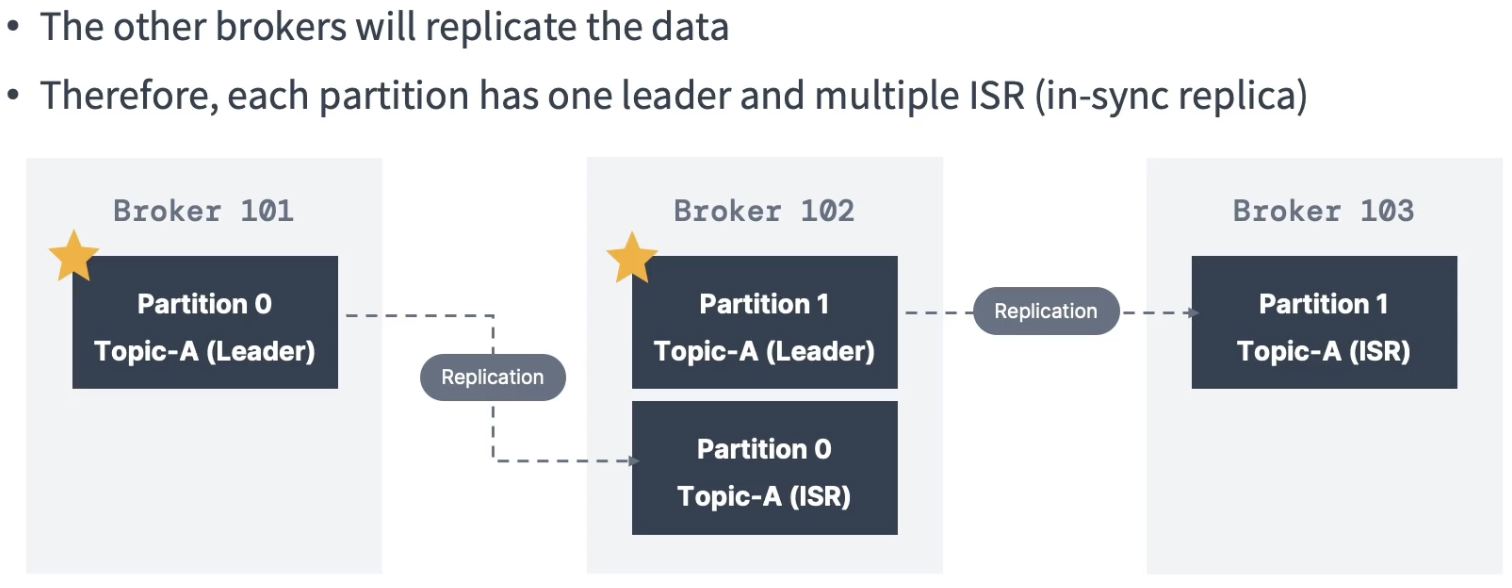

Brokers have a single leader for a given partition and producers can only send data to leader.

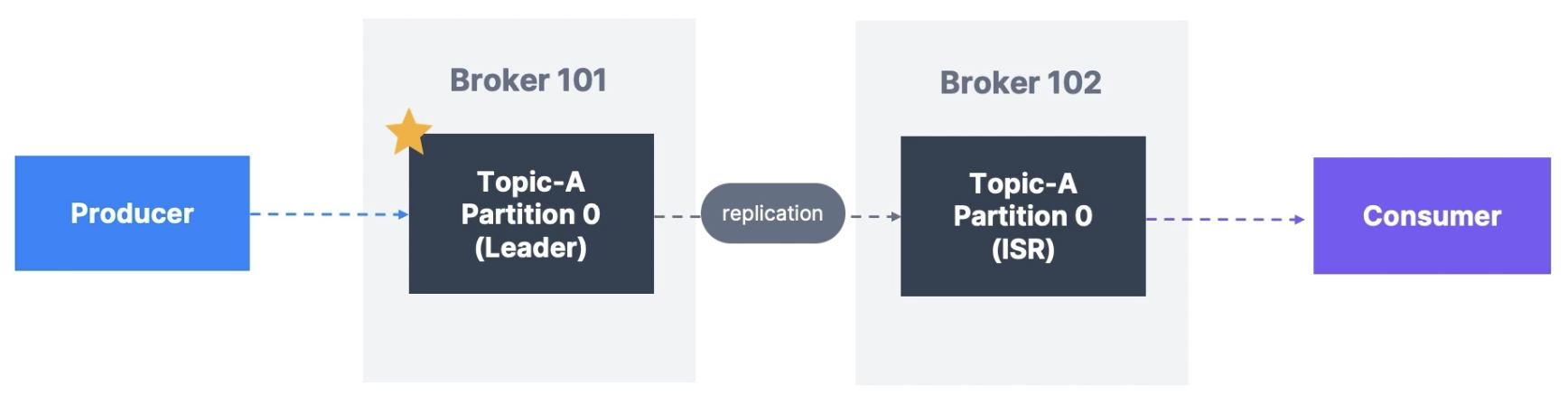

Meaning that the default behavior is that Producer is only writing to a single leader broker and Consumer is only reading from single leader broker even though replicas are in place – meaning replicas here are only for High availability (HA).

NOTE

Though since Kafka 2.4 you can configure a consumer to read from the closest replica.

Zookeeper

By design uses odd number of servers (1,3,5,7). One is the leader and all others are the followers. Early on (v0.1) Producers stored offsets in Zookeeper, but nowadays they do it in __consumer_offsets Topic.

DO NOT USE IT WITH KAFKA CLIENTS, BUT YOU MAY USE IT WITH BROKERS
