Docker

Runs isolated containers which utilize kernel from the Host, Container is isolated system environment. Utilizes LXC containers, removing boilerplate for us.

Theory

Linux vs Windows

Important to know that you cannot run Windows containers on Linux host. Host Kernel and image must match, because docker utilizes system kernel.

VMs vs Containers

They key difference is that VM utilizes fully separate OS, while container is an isolated too, which utilizes Host’s kernel to “emulate” the OS. This leads to higher overhead of maintenance and resource utilization for Virtual Machines.

Connection with Host

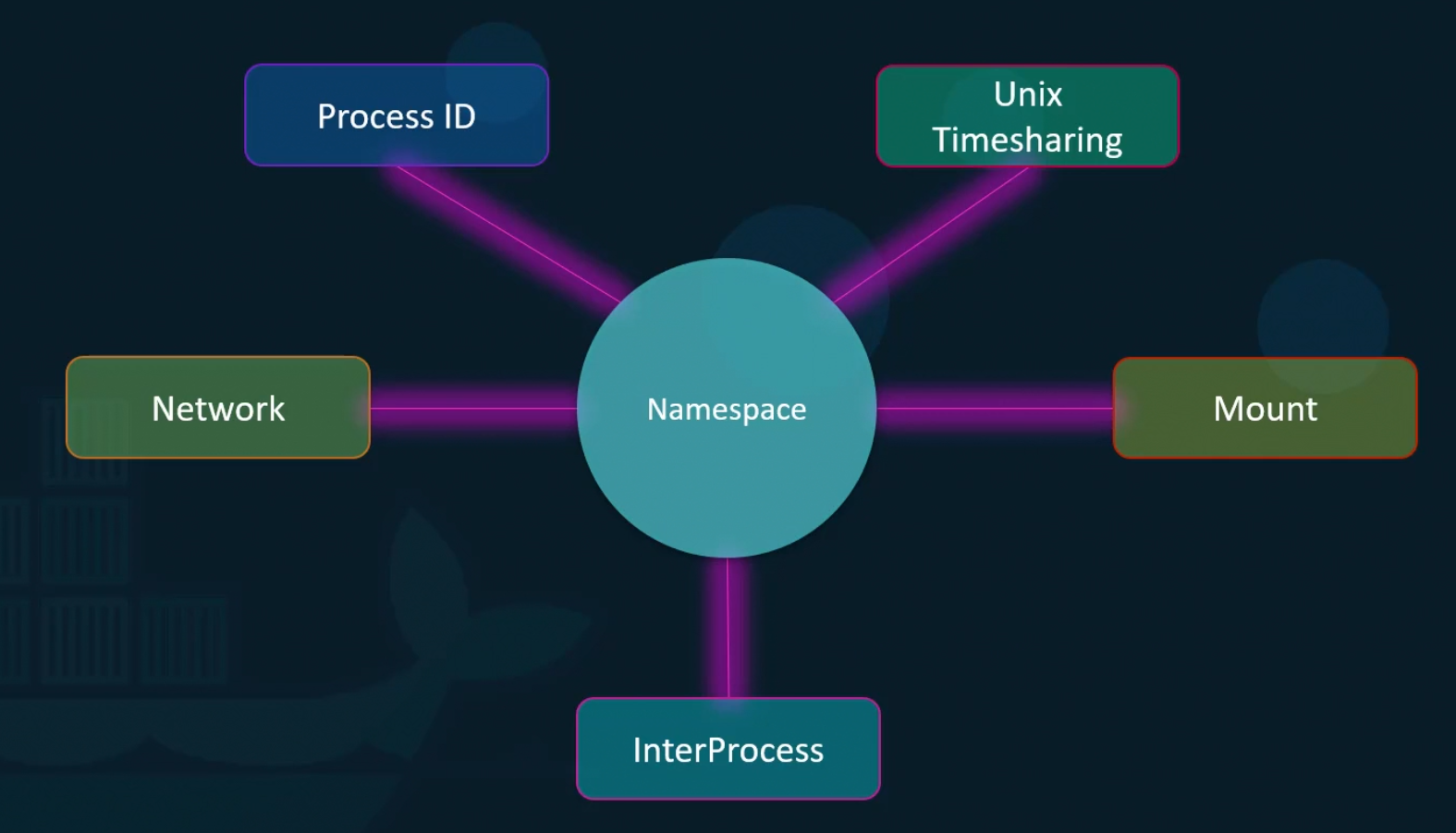

Docker containers isolated on each own via namespaces.

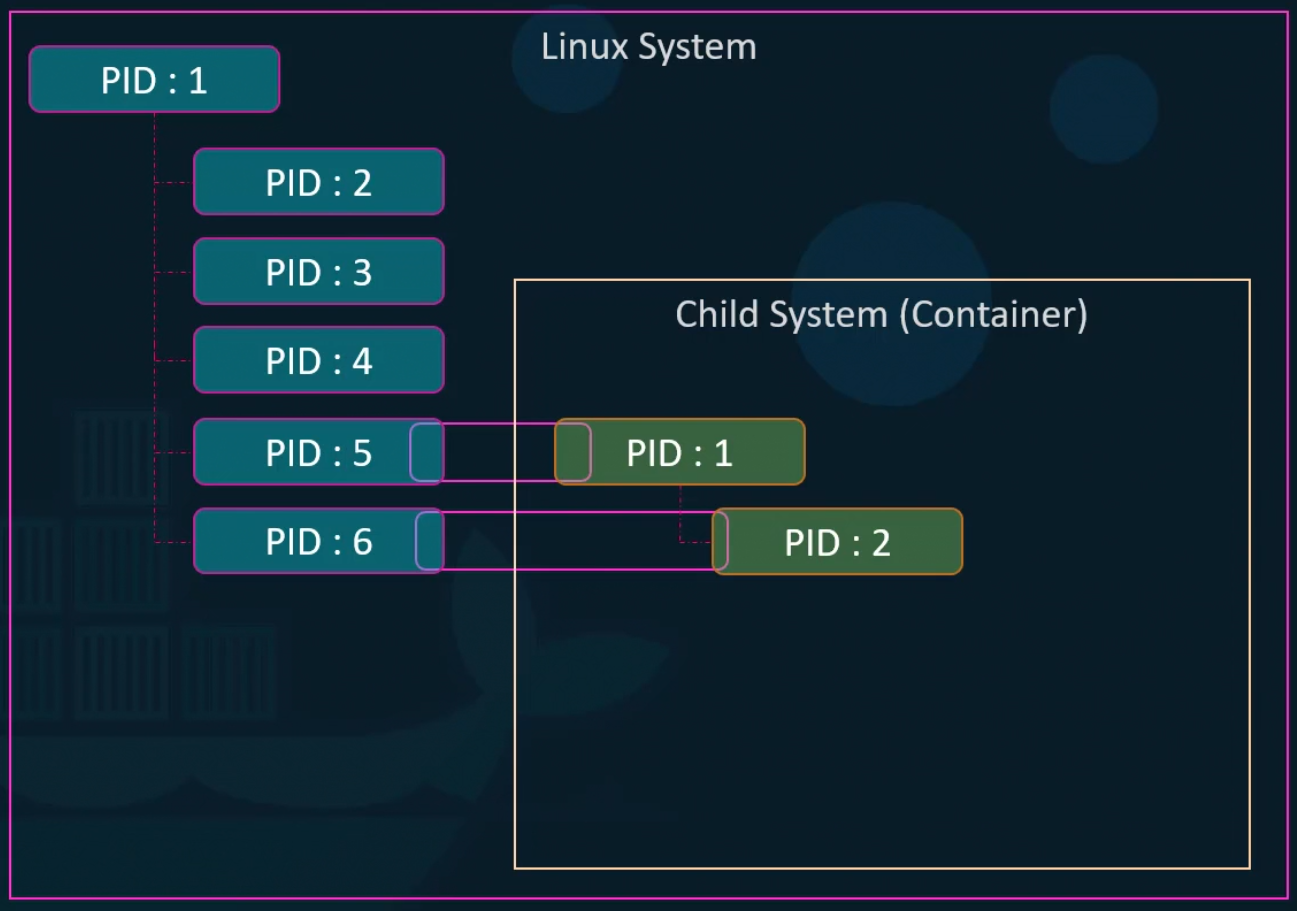

If we look into processes deeply, docker container actually creates processes on the host system
PID5 (nginx) - PID6(run) for example, but on the container it would be PID1(nginx) → PID2(run). Since on Linux first process spans every other. You can actually see docker container processes on host system itself, it will just have different process ID.

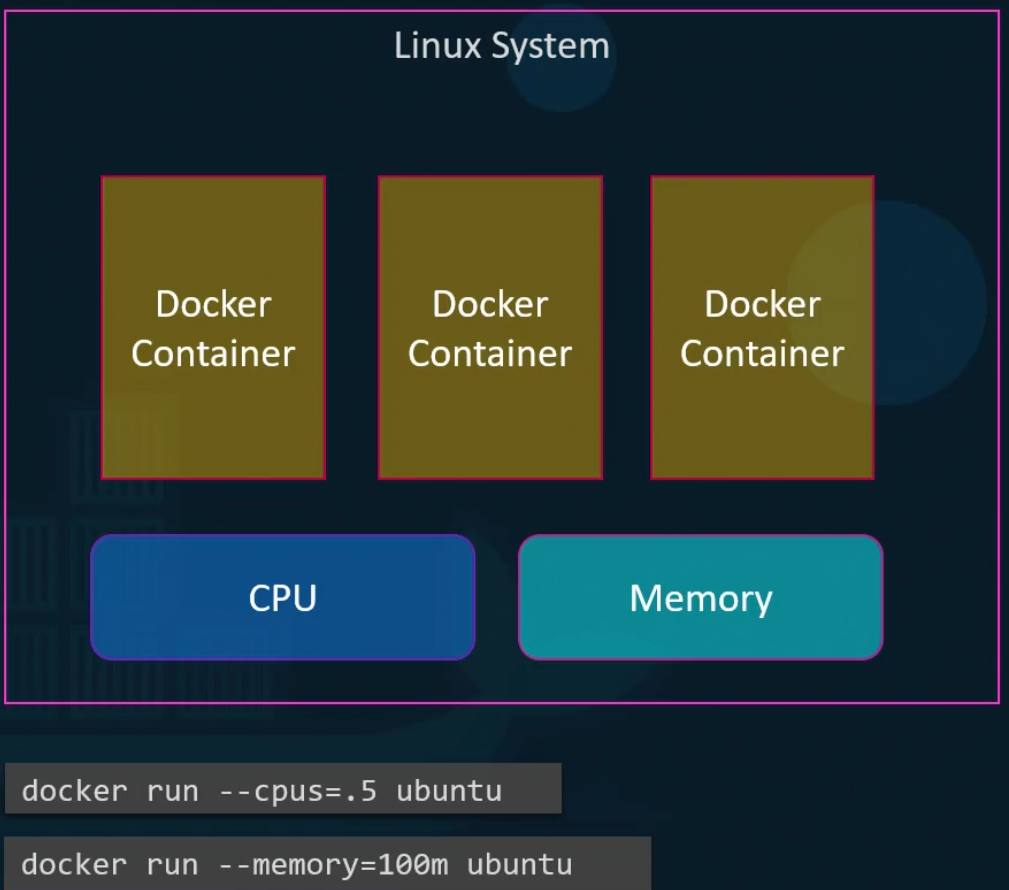

By using cgroups we can limit how many system resources container uses, it’s implemented as CLI option to docker run.

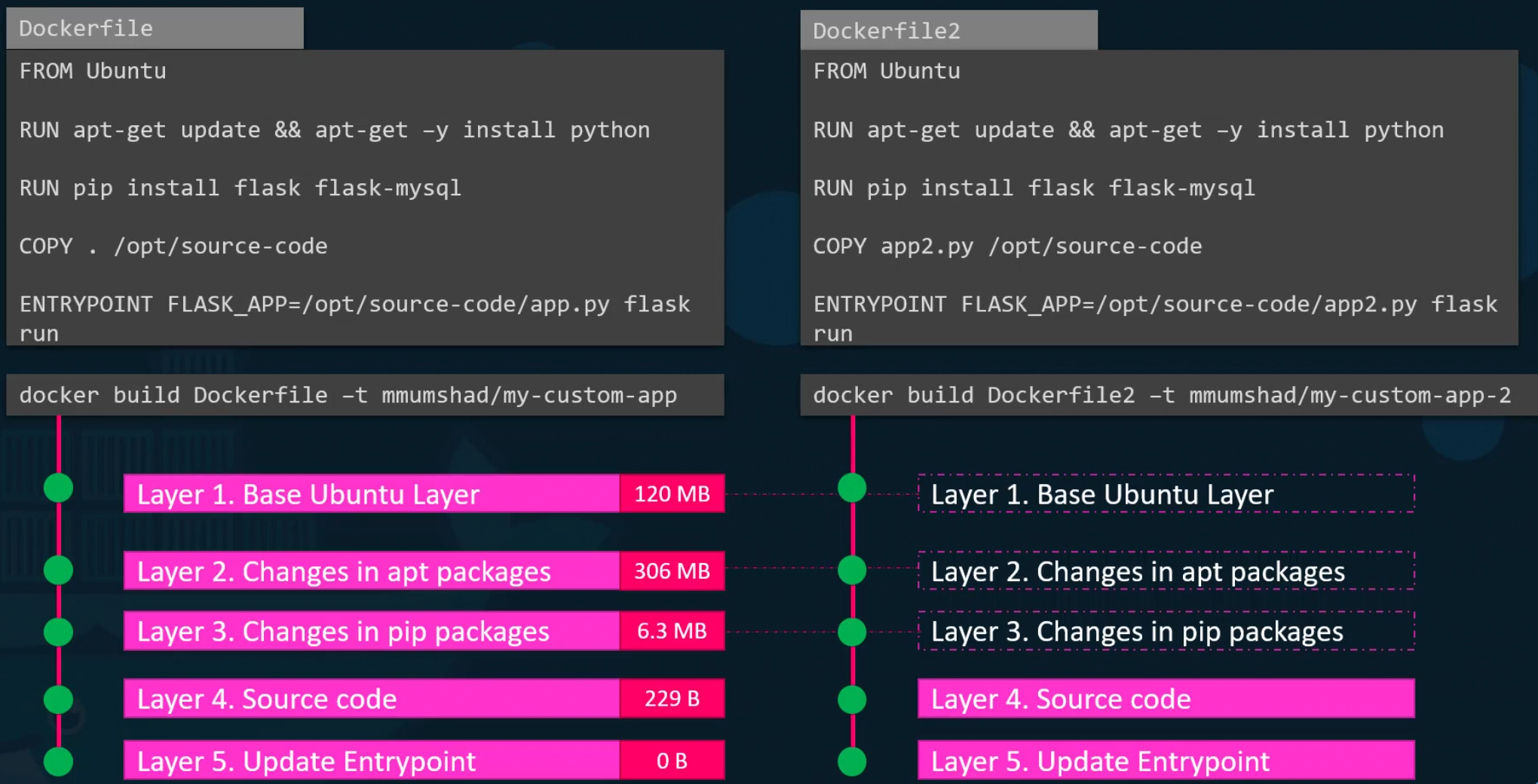

When we build we create layers and reuse them when available. Layers can be shared between two separate containers.

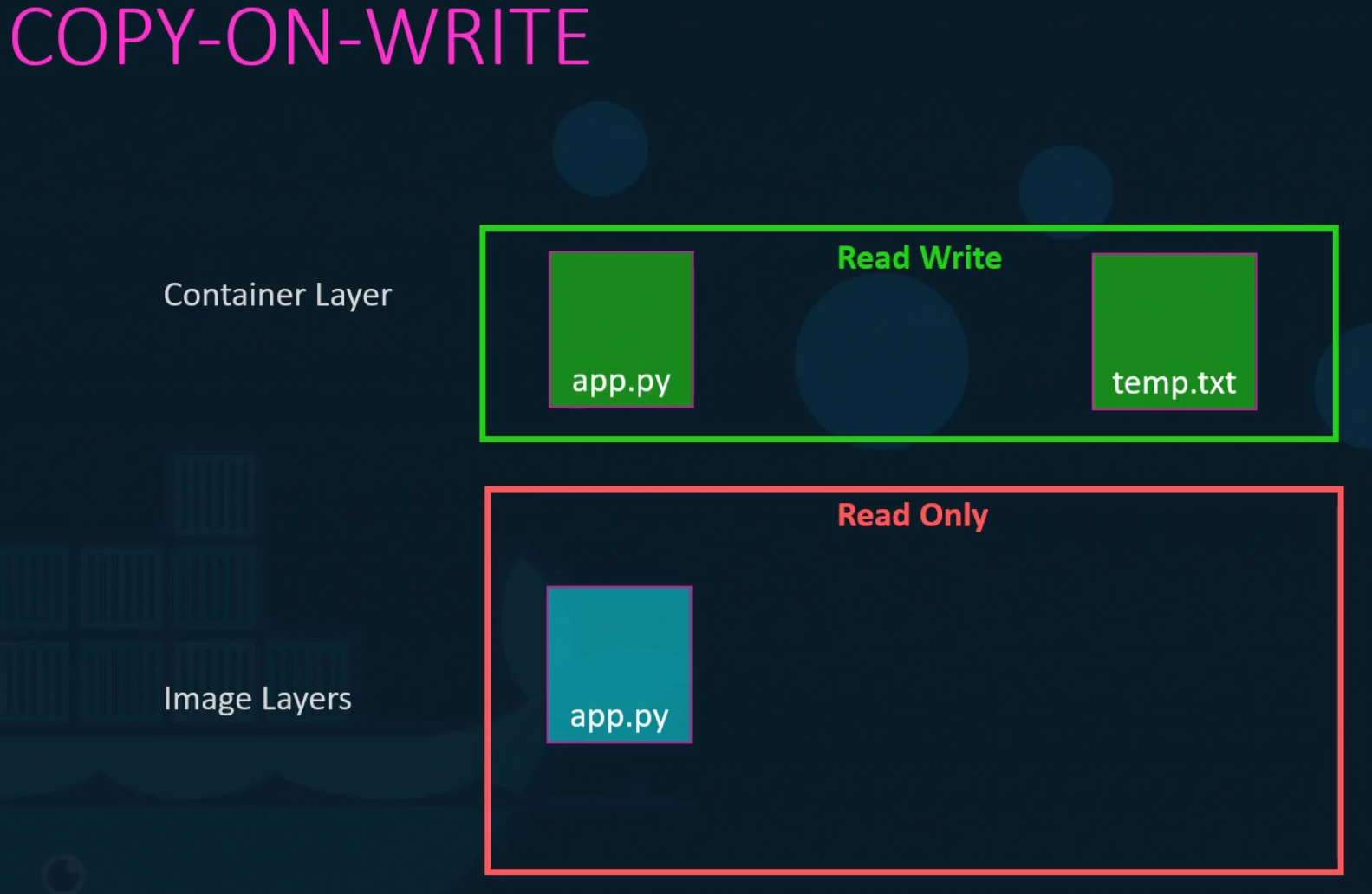

This means that we cannot modify app.py file which was pulled from Github during build stage, so as a workaround docker uses mechanism called COPY-ON-WRITE, so this file is copied to RW container layer one we done editing it.

Docker vs ContainerD

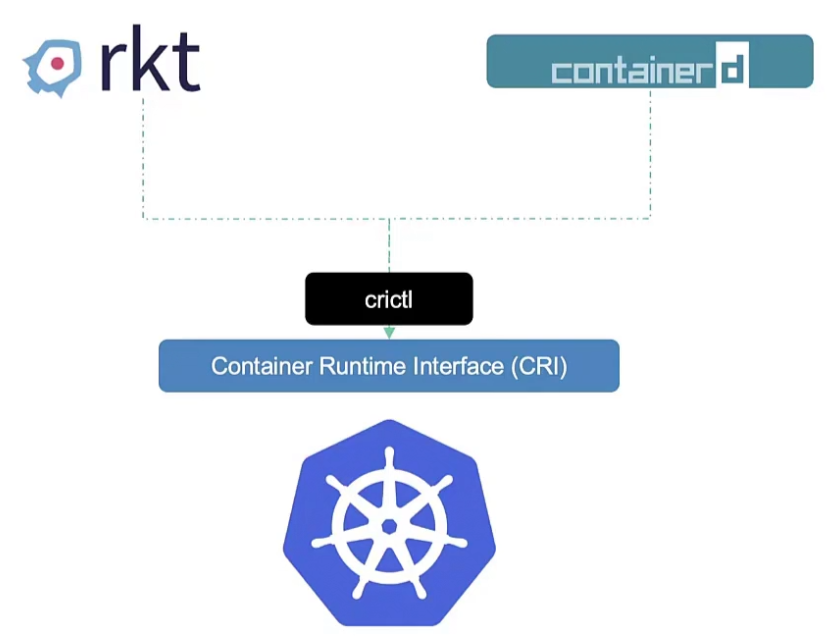

Initially K8S worked with Docker worked only. Then they developed CRI Container Runtime Interface which contains OCI image standards, so other parties which use these standards can replace Docker. Docker itself is a set of tools, like run, CLI, build… dockershim.

Container runtime is responsible for running the containers.

The Container Runtime Interface (CRI) is the main protocol for the communication between the kubelet and Container Runtime.

Docker at the time did not adhere to standards, the container runtime dockershim was a tech debt, so they replaced it with containerd runtime.

containerd is a separate project now that is tightly integrated with Docker. If you don’t need Docker tools, you can use just it and provisioned ctr tool, but it’s mostly for debugging. Better CLI tool would be neerdctl which is interoperable with docker CLI and has unique features.

There is also crictl which is used form kubernetes perspective. Also better for debugging, not usage. Aware of pods.

Reference: containerd vs. Docker | Docker

Quick guide

Docker file must be named Dockerfile where you provide INSTRUCTIONS (RUN) and arguments (wget)

docker buildx build --platform linux/amd64 redbull-tracker-ge.txt -t docker.io/vazome/redbull-tracker-ge

docker push vazome/redbull-tracker-ge:latest

docker run --name <nm> img - start a new container from an image
alternatively docker-compose for the same but via YAML config

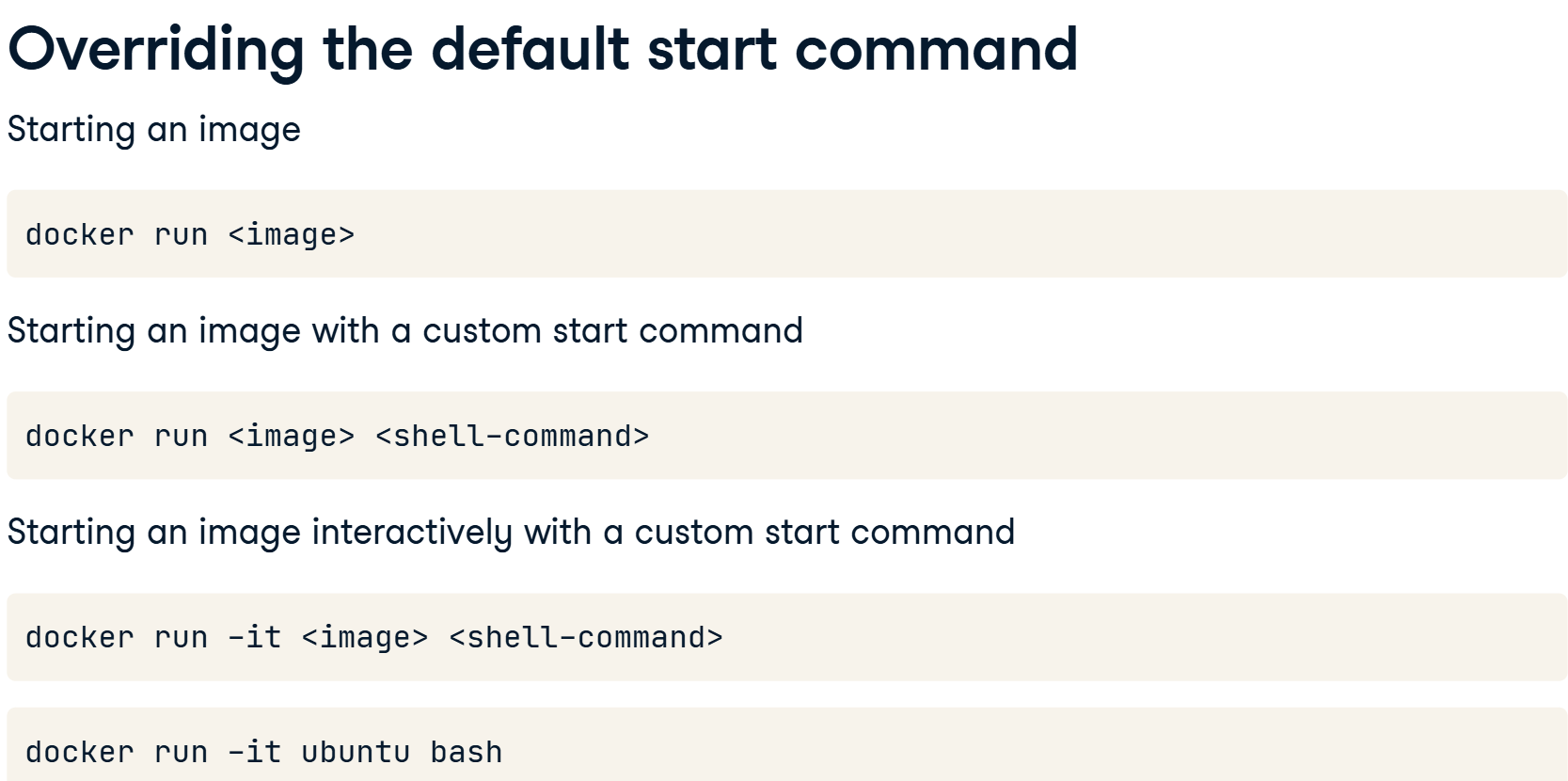

Can override CMD and ENTRYPOINT command defined in image

docker {action} -d --name=redis redis-img - launch docker in background, detached mode
docker {action like exec} -it bash - launch docker in interactive (user input) terminal mode.
docker ps - view docker that was in background you do
docker ps -f "name=<container-name>"
docker logs <cnt-id> - get output from container
docker logs -f <cnt-id> - get output in real-time
docker container rm <cnt-id> - delete container
docker container prune - delete all stopped containers

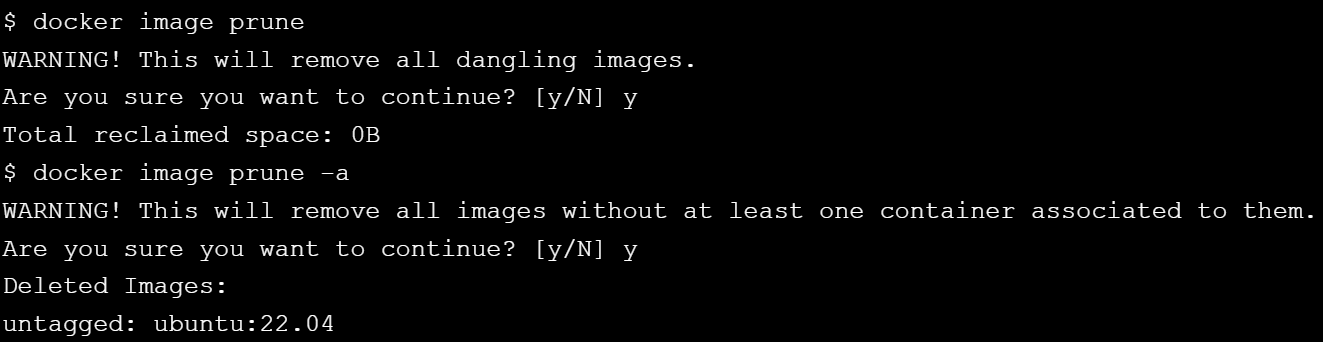

docker image prune -a - delete all dangling images -a to remove unused containers
Unused = images that aren’t tied to any container, either in use or stopped.

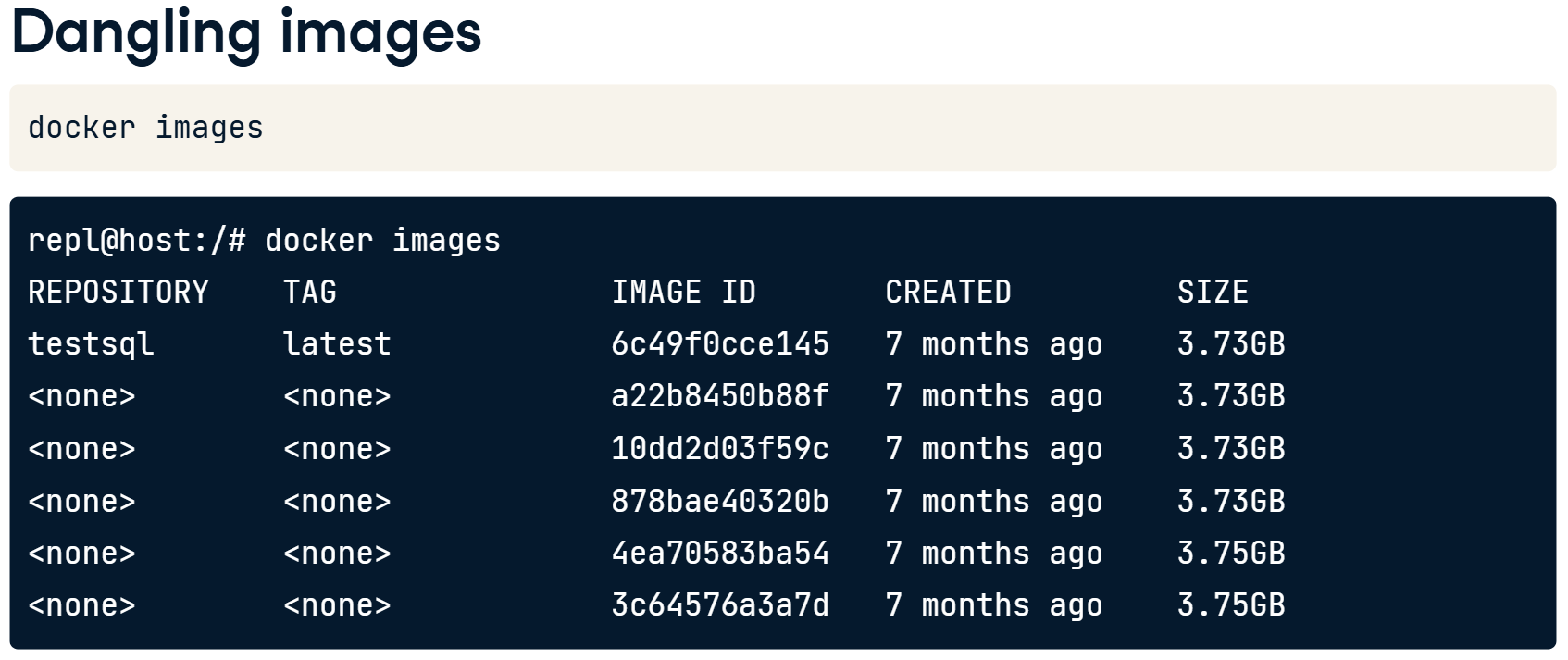

Danglings = unnamed image, when you only see the id, or none instead of the tag-name.

docker image push image name to registry
private registries
docker login docker.corp-EVIL.com

docker tag tag1_nan:v1 docker.corp-EVIL.com/tag1_nan1:v1
docker image push docker.corp-EVIL.com/tag1_nan1:v1

docker save -o image.tar tag1_nan:v1
docker load -i image_tar

docker run will load local and then from docker hub if you just give it name without url,
but you can do docker run --pull=never

Docker build

Variables

Builder:

• ARGs ARG path=/home/repl for the variable in builder, later addressed as $path
• ENVs ENV DB_user=pipeline_user still accessible after image is built, runtime
  Builder CLI: docker build --build-arg project_folder=/repl/pipeline .
  Runner:
• docker run --env <key> =< value> <image-name>
• docker run --env POSTGRES_USER=test_db --env POSTGRES_PASSWORD=test_db postgres
  Logically, it’s insecure to store secrets in vars, they show up in docker history

Dockerfile needs to be in the directory with YAML def

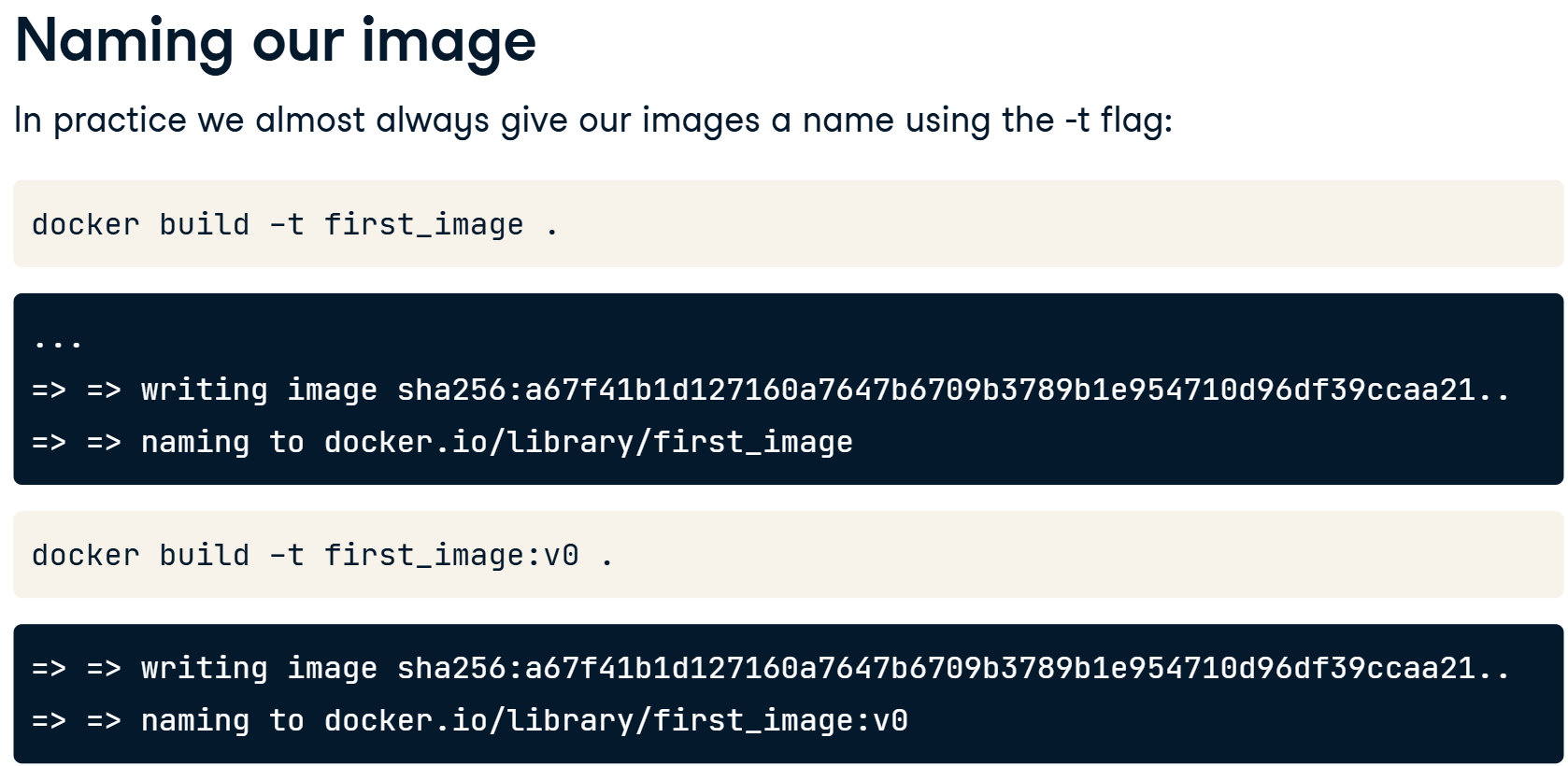

docker build -t (—tag)

CMD executed when container is running, does not add build time. Only the last one executed.

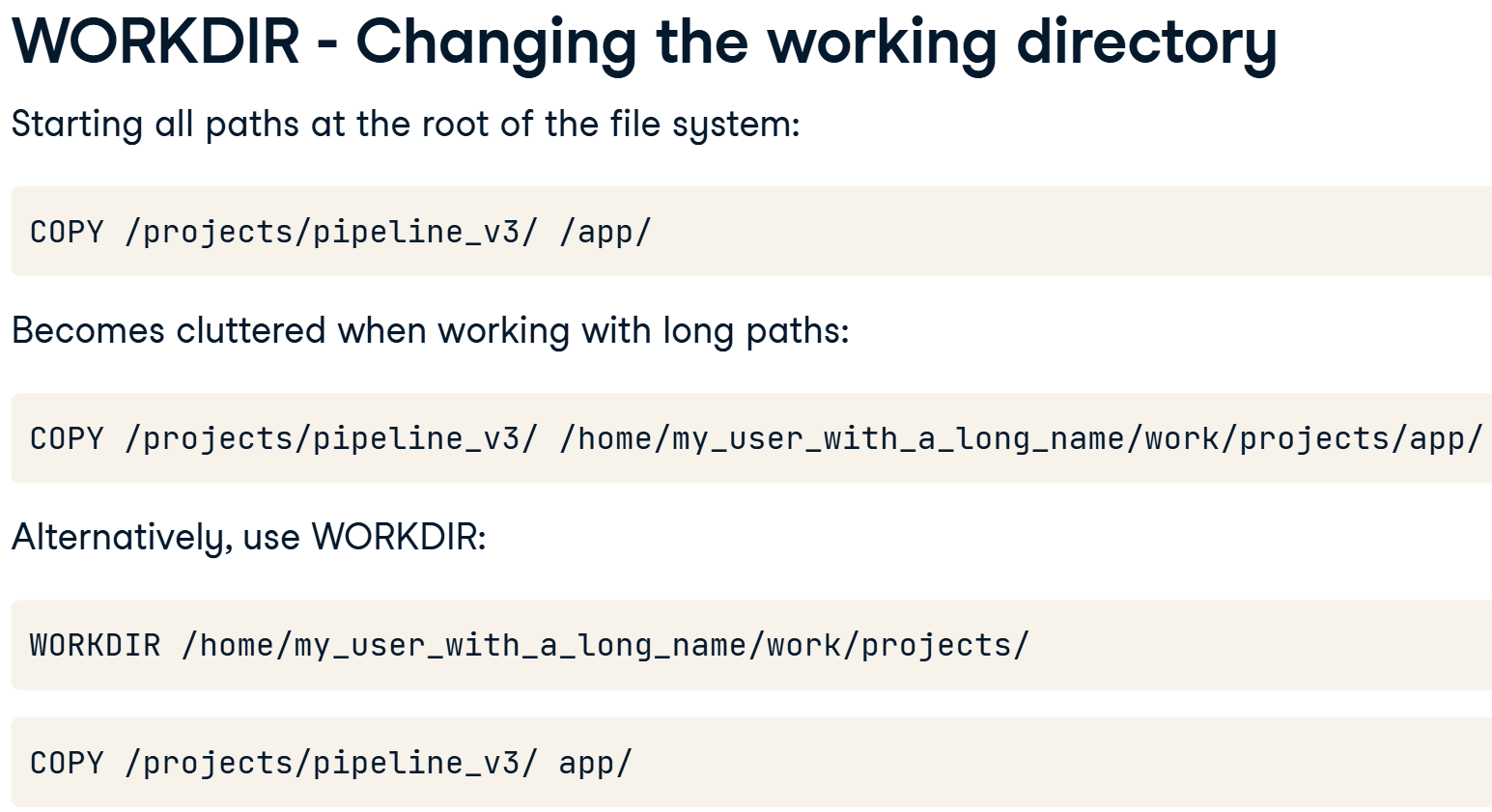

WORKDIR : Changes the working directory for all following instructions, affects commands like COPY, docker run override or RUN (it’s basically a variable for assumed root path). We can still use absolute paths. Affects CMD

USER : Changes the user for all following instructions, so we don’t user root user for all stuff. No other user is allowed to be used after defining this. Affects CMD

ADD vs COPY, ADD can retrieve from remote sources, but it’s advised to use CURL or WGET, unzip and rm instead of ADD

Important

RUN during build, CMD launch something when container starts and ENTRYPOINT default executable which you can’t override.
The CMD instruction can be used to provide default arguments to an ENTRYPOINT if it is specified in the exec form

ENTRYPOINT ["python", "/app/my_script.py"]
CMD ["--default-arg"]

Both can be overridden docker run -it --entrypoint /bin/bash test-override

Docker Best Practices: Choosing Between RUN, CMD, and ENTRYPOINT | Docker

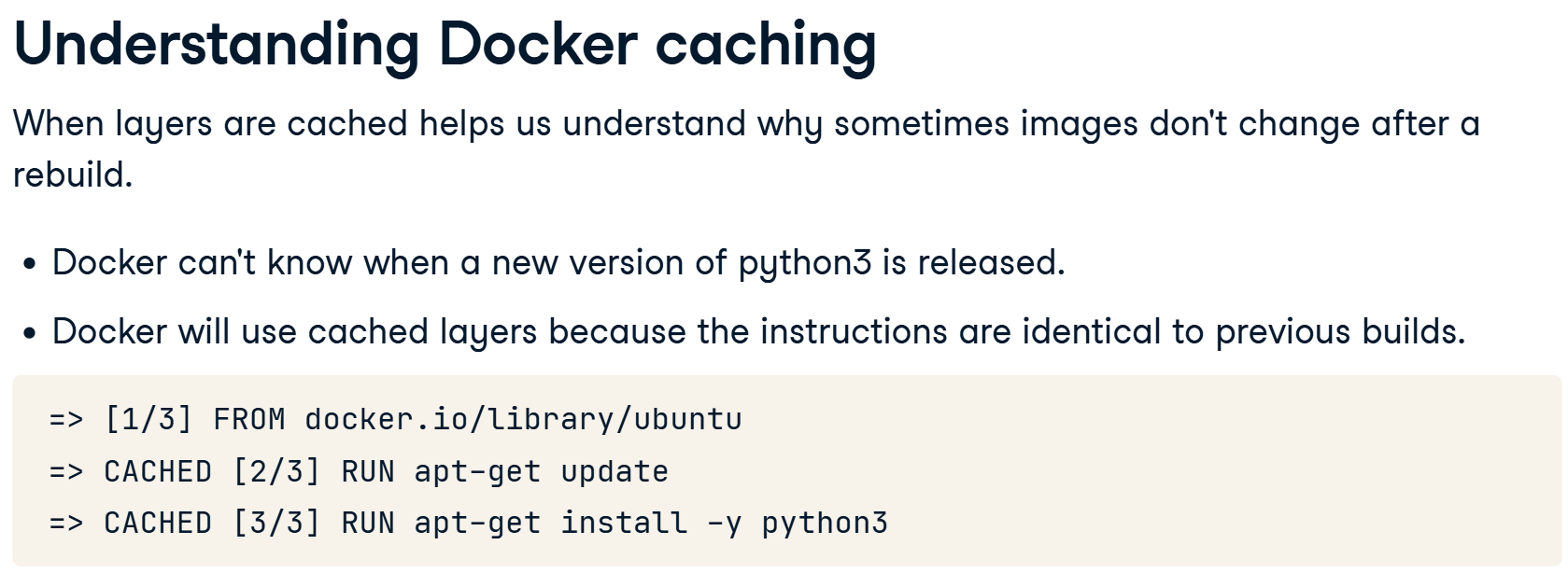

Docker Caching

Cache Layers vs Cache Mounts

So the key difference is that cache layers can be discarded if I change the underlying configuration (being tied to Dockerfile instruction fields or files used), but cache mounts persist even if I change files like requirements.txt or pyproject.toml so that packages to install can remain, but if I add a new one it will download it also

Ideally, for effective caching, so it doesn’t over-cache (not downloading new python version) put declarations from lest changing to most changing.

You can force avoid cache by “—no-cache or —no-cache-filter” options.

You can consider cache mounting, t

Docker Run

Check container network and all other specs
docker inspect <id>

Linking containers together would be better achieved via user-defined bridge instead of --link

Docker Network

Behind networking are docker namespaces, each container gets its own namespace

By default docker creates 3 networks Bridge, None and Host. Docker has embedded DNS server 127.0.0.11, based on container name.

You change network this way
docker run <image> --network=none

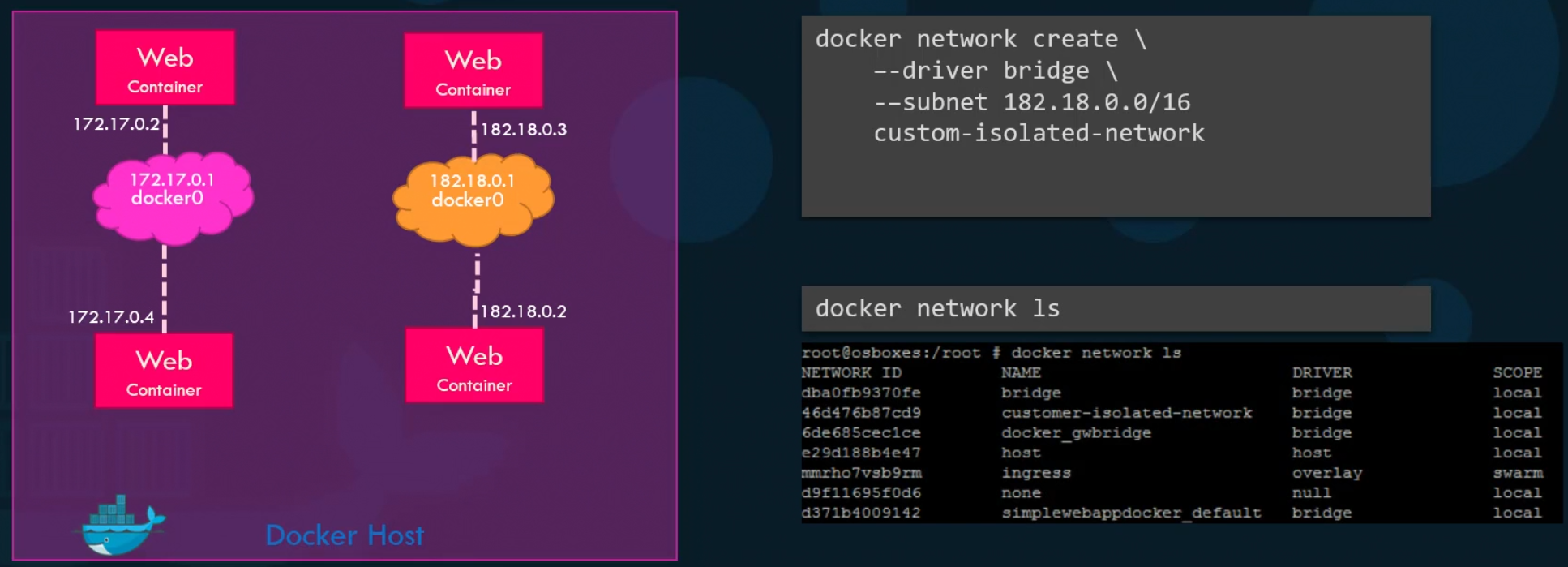

Though you can create new docker bridge network to separate to network (-d for driver)
docker network create -d bridge my-bridge-network

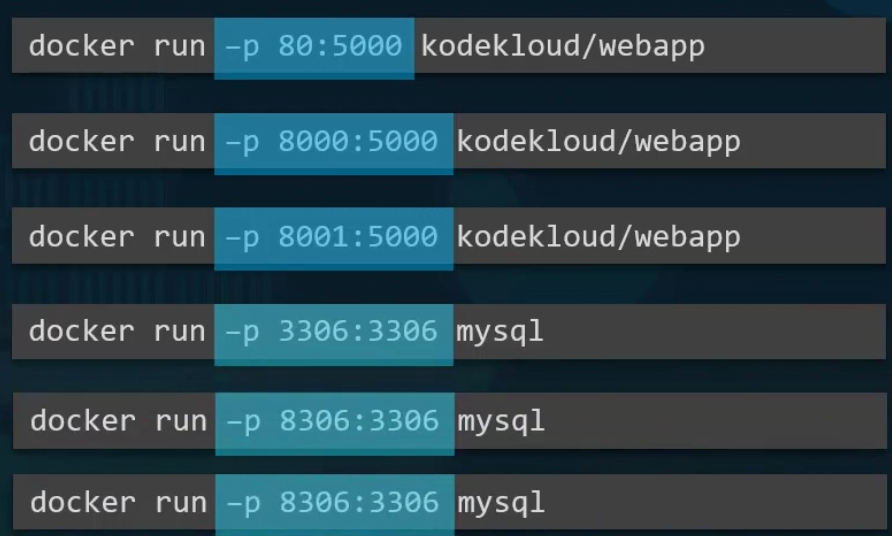

Port mapping

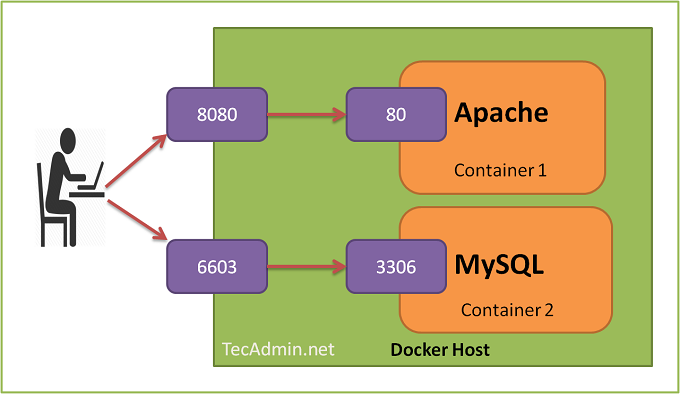

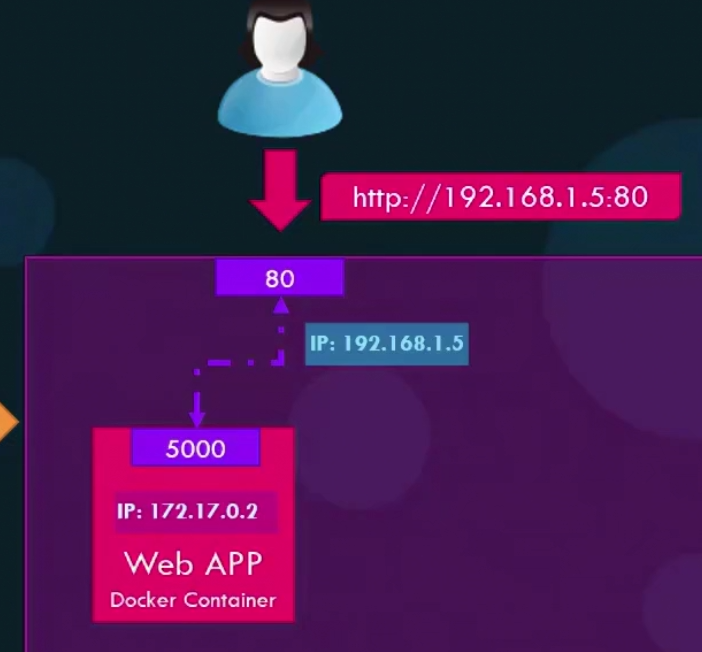

Port mapping works this way 8080:80 where 8080 is port on host and 80 is port in the container

To map it this way, you can do docker run -p port:port <id>

Volume mapping

Feature	Named Volume	Anonymous Volume	Bind Mount
Syntax	-v myvol:/app/data	-v /app/data	-v $(pwd)/data:/app/data
Backed by Docker engine	✅ Yes	✅ Yes	❌ No (uses host filesystem)
Automatically removed by --rm	❌ No	✅ Yes	❌ No
File location (host)	Docker-managed (/var/lib/docker/volumes/)	Same as named	Explicit path on host (e.g. /home/user/data)
Portability	✅ Easy to share between containers	❌ Difficult (unnamed)	❌ Host-specific paths
Use case	Persistent app data (e.g. DBs)	Temp/intermediate data	Mount config/code/secrets
Can mount single file	❌ No	❌ No	✅ Yes
Hot-reload for dev	❌ No	❌ No	✅ Yes (host file updates reflected)
Access control (ro/rw)	✅ Supported	✅ Supported	✅ Supported

Data management is done via storage drivers.

-v vs --mount

Using -v is outdated use —mount

docker run \
--mount type=bind, source=/data/mysql,target=/var/lib/mysq1 mysq1

There are times when you need to import file and assign a variable, my use case was this
--rm removes container and anonymous volumes after finishing (only
volumes specified without a name, e.g. docker run -v /foo instead of
docker run -v awesome:/foo are removed.) IN OUR CASE VOLUME REMOVED BECAUSE IT’S A BIND VOLUME

but usage of volumes is deprecated, USE MOUNTS…

docker run --rm \
  -e GOOGLE_APPLICATION_CREDENTIALS="$GOOGLE_APPLICATION_CREDENTIAL" \
  -e API_TYPESENSE_KEY="$API_TYPESENSE_KEY" \
  -e API_TYPESENSE_HOST="$API_TYPESENSE_HOST" \
  $VS_IMAGE_NAME:latest

docker run --rm \
  -e GOOGLE_APPLICATION_CREDENTIALS=/app/firebase.json \
  -e API_TYPESENSE_KEY="$API_TYPESENSE_KEY" \
  -e API_TYPESENSE_HOST="$API_TYPESENSE_HOST" \
  -v $GOOGLE_APPLICATION_CREDENTIALS:/app/firebase.json:ro \
  $VS_IMAGE_NAME:latest

For data persistence,

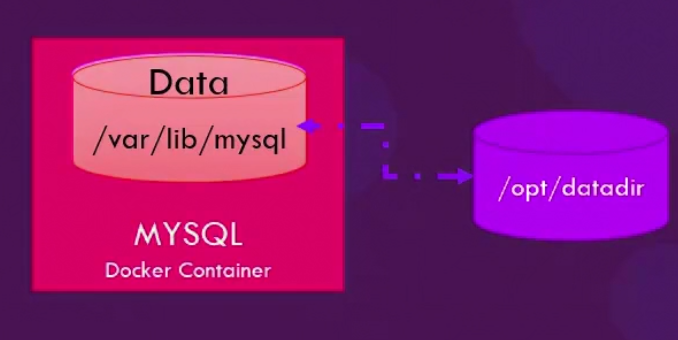

Bind mounting: a way of mapping a volume from a directory on the host: docker run -v /opt/datadir:/var/lib/mysql mysql where /opt/datadir is a host directory:

Volume mounting: though in some cases you may prefer mounting by creating a volume first like docker volume create data_volume and doing docker rum -v data_volume1:/var/lib/mysql mysql

Docker Compose

This is where you define your multi-container using YAML configuration

Docker Compose vs Kubernetes

docker-compose allows you to coordinate MANY containers in the same computer using 1 YAML file instead of manually running commands for each container.

k8s allows you to coordinate MANY containers in different computers, using MANY YAML files. It’s a lot more complicated than docker-compose, but also much more powerful.

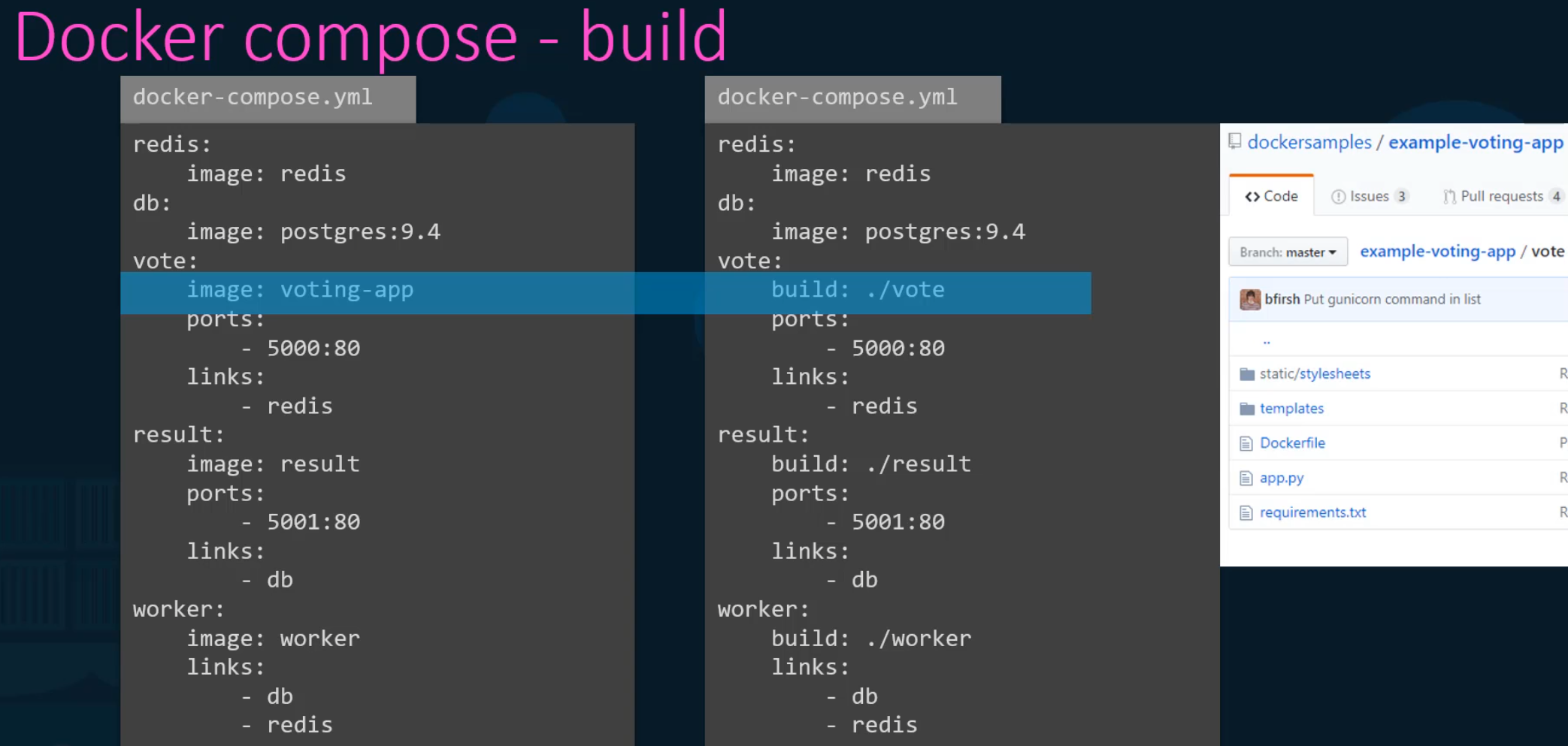

docker compose up to run the compose config, but if images are custom you should specify image as path to the directory where their respective Dockerfile is located.

outdate Version 1 on the image
There are many version of docker-compose config.

• Version 1: no prioritization, uses outdated linking networking and bridging over it.
• Version 2: Uses dedicated bridging and DNS, has depends-on.
• Version 3: Support Swarm.
• But later on versions 2.x and 3.x of the Compose file format were merged into the Compose Specification compose-spec/spec.md at main · compose-spec/compose-spec · GitHub
  • So specifying version no longer needed on new compose cli version, though you can for backward compatibility

Most important sections:

• Version (Optional)
• Services (Required)
• Networks
• Volumes
• Configs
• Secrets

multistage building

Defined by two FROM fields in Dockerfile. It allows us to create two images within one where first we compile the application and then build the image that will launch the program, we do this to reduce the size of the end image to ensure it does not contain the tools necessary for image building.

secret management

Secrets | Docker Docs
There are 3 main ways, secret mounting, ssh mount and git stuff

RUN --mount=type=secret,id=gcp,env=GOOGLE_APPLICATION_CREDENTIALS \
    --mount=type=secret,id=typesense,env=API_TYPESENSE_KEY

VS_IMAGE_NAME="vs-app-api" VER="v2" && \
op run -- docker build \
  --secret id=GOOGLE_APPLICATION_CREDENTIALS,env=GOOGLE_APPLICATION_CREDENTIALS \
  --secret id=API_TYPESENSE_KEY,env=API_TYPESENSE_KEY \
  --secret id=API_TYPESENSE_HOST,env=API_TYPESENSE_HOST \
  -t $VS_IMAGE_NAME:$VER \
  -f Docker/Dockerfile . && \
docker tag $VS_IMAGE_NAME:$VER $VS_IMAGE_NAME:latest
