Related: Gateway Endpoints
Interface endpoints are used to allow private IP addressing to access public AWS services.

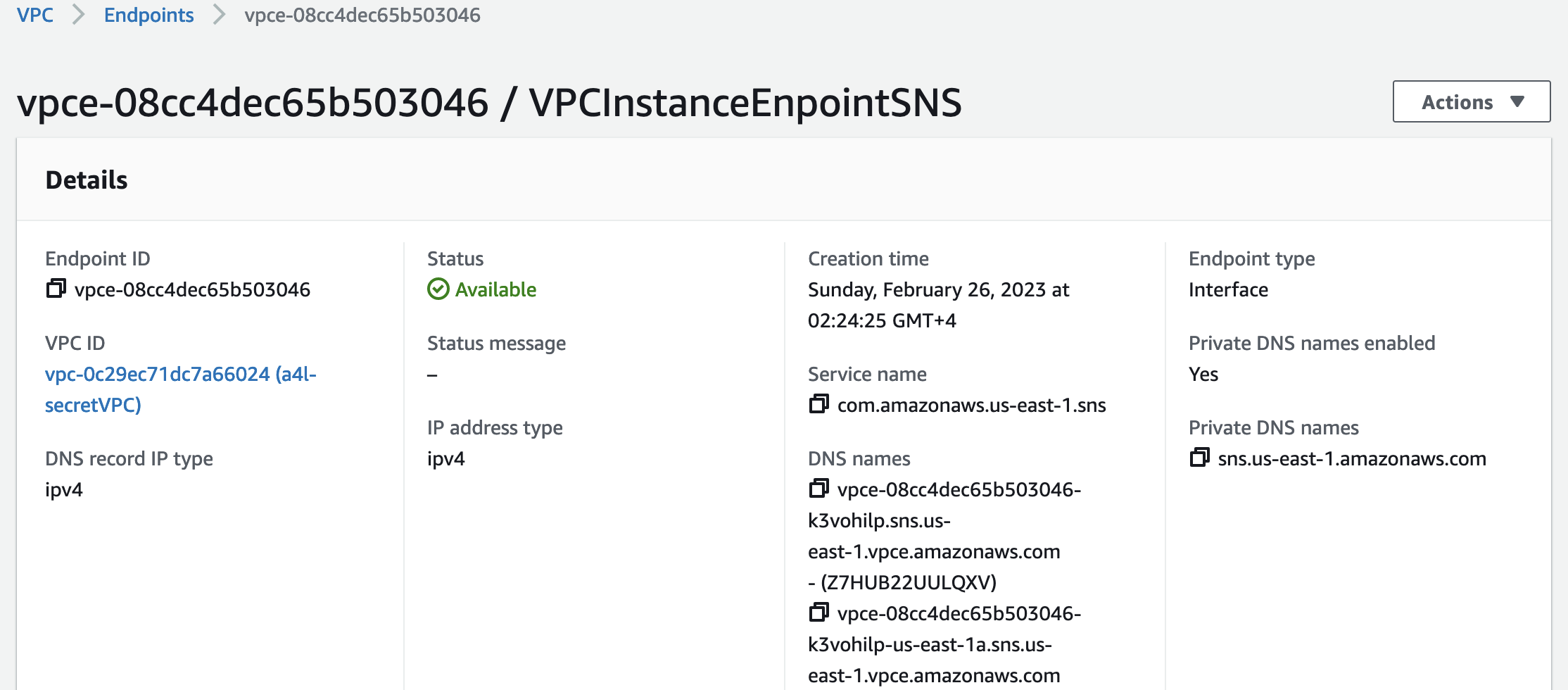

/Attachments/Pasted-image-20230226023312.png)
S3 and DynamoDB are handled by gateway endpoints - other supported services are handled by interface endpoints.
But S3 can, also be used with Interface Endpoints.
Not High availability (HA) as Gateway Endpoint, you need to add one endpoint per one subnet per one AZ
So if you use 3 AZs you need 3 Endpoints
Endpoint Policies – restrict what can be done with the endpoint
Only TCP and IPv4
Uses Privatelink
Alike Gateway Endpoints, they don’t user prefix list in RT, they have private IP and get DNS.
They get endpoint regional DNS and Zonal DNS. Also, PrivateDNS associates Route 53 Private Zone and overrides default given DNS

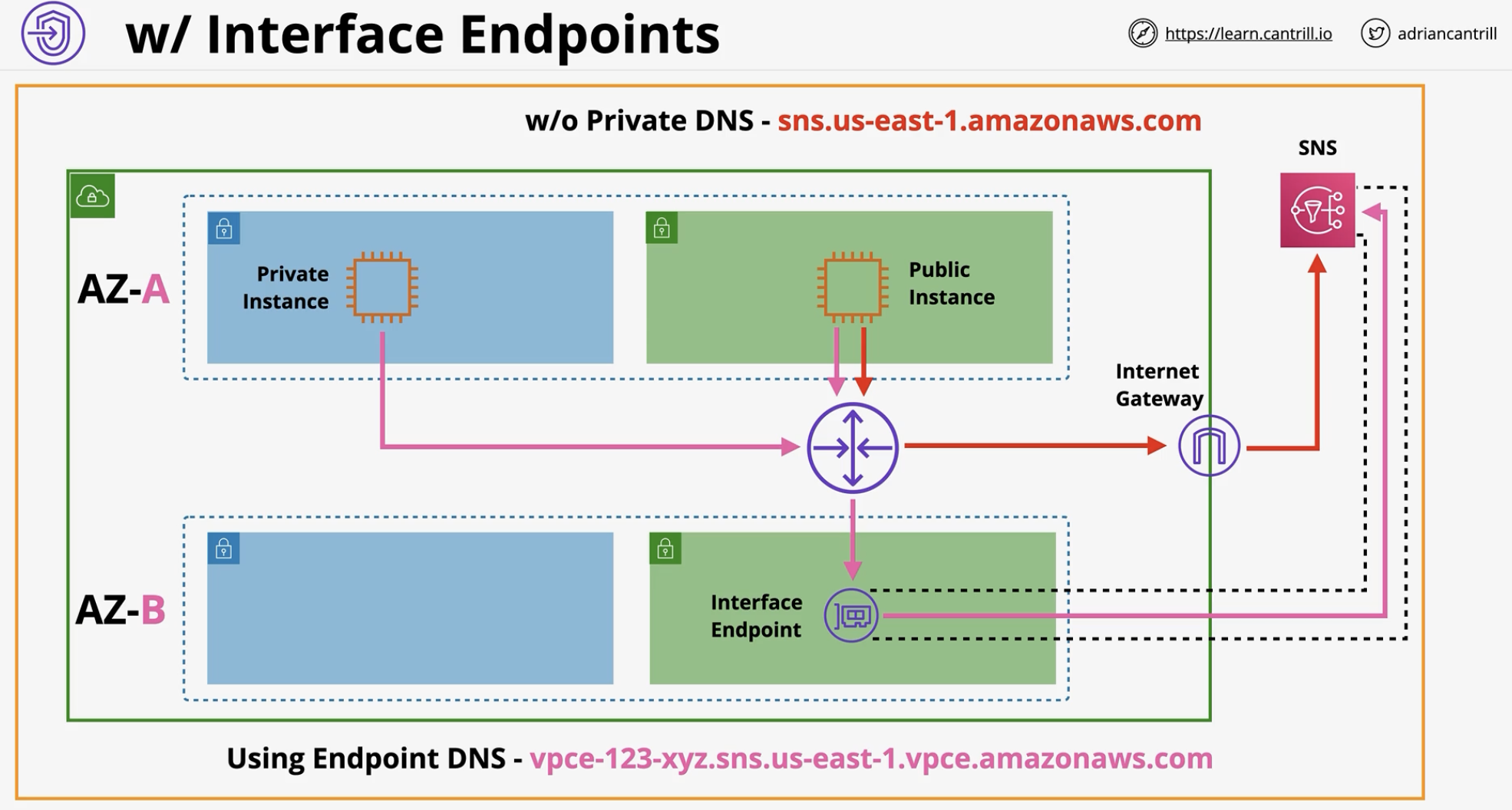

/Attachments/Pasted-image-20230225175259.png)

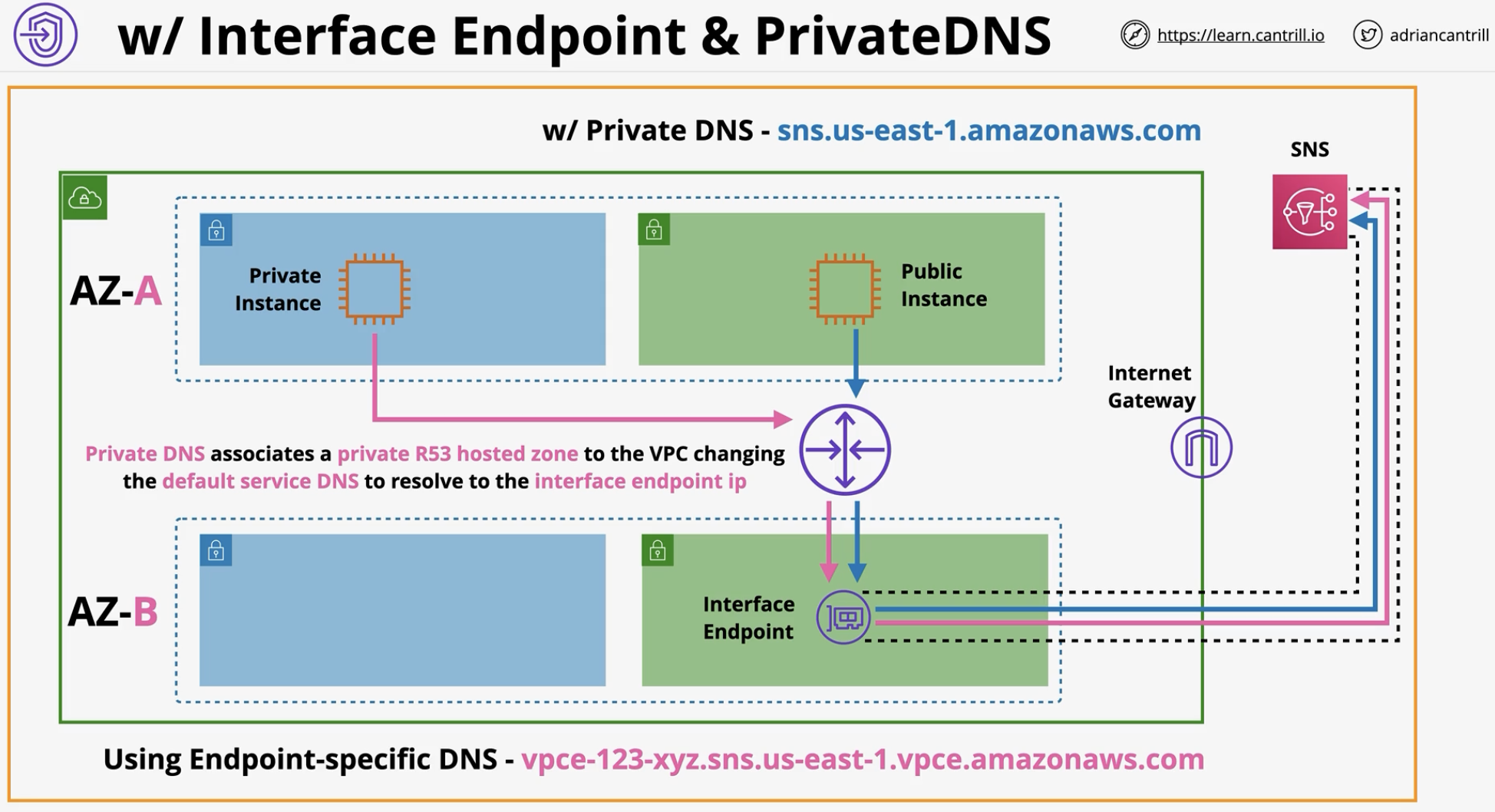

/Attachments/Screenshot-2023-02-25-at-17.53.49.png)
