Related: VPC, VPC Routing
HA on all subnets (regionally available), not cross-regional
Provides private network access to S3 and DynamoDB, without public IP addressing. Per service per region, associated with one or more subnets.

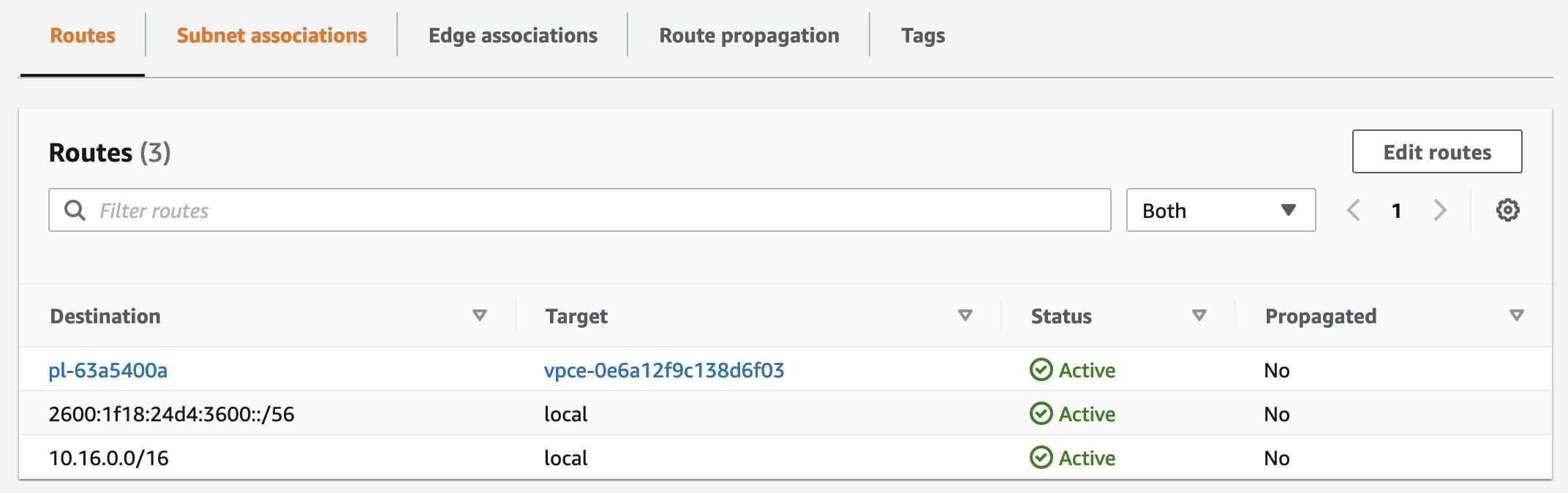

Prefix List added to route table which points to Gateway Endpoint
/Attachments/Pasted-image-20230226004244.png)
bash [ssm-user@ip-10-16-42-141 usr]$ aws s3 ls 2023-02-25 20:04:34 a4lsecretvpc-bucket-9lb0l3t8cmg9 [ssm-user@ip-10-16-42-141 usr]$
Endpoint policy allows finer graded service access.
Also helps enforcing private buckets architecture – creating bucket policy explicitly allow only Gateway Endpoint to connect.

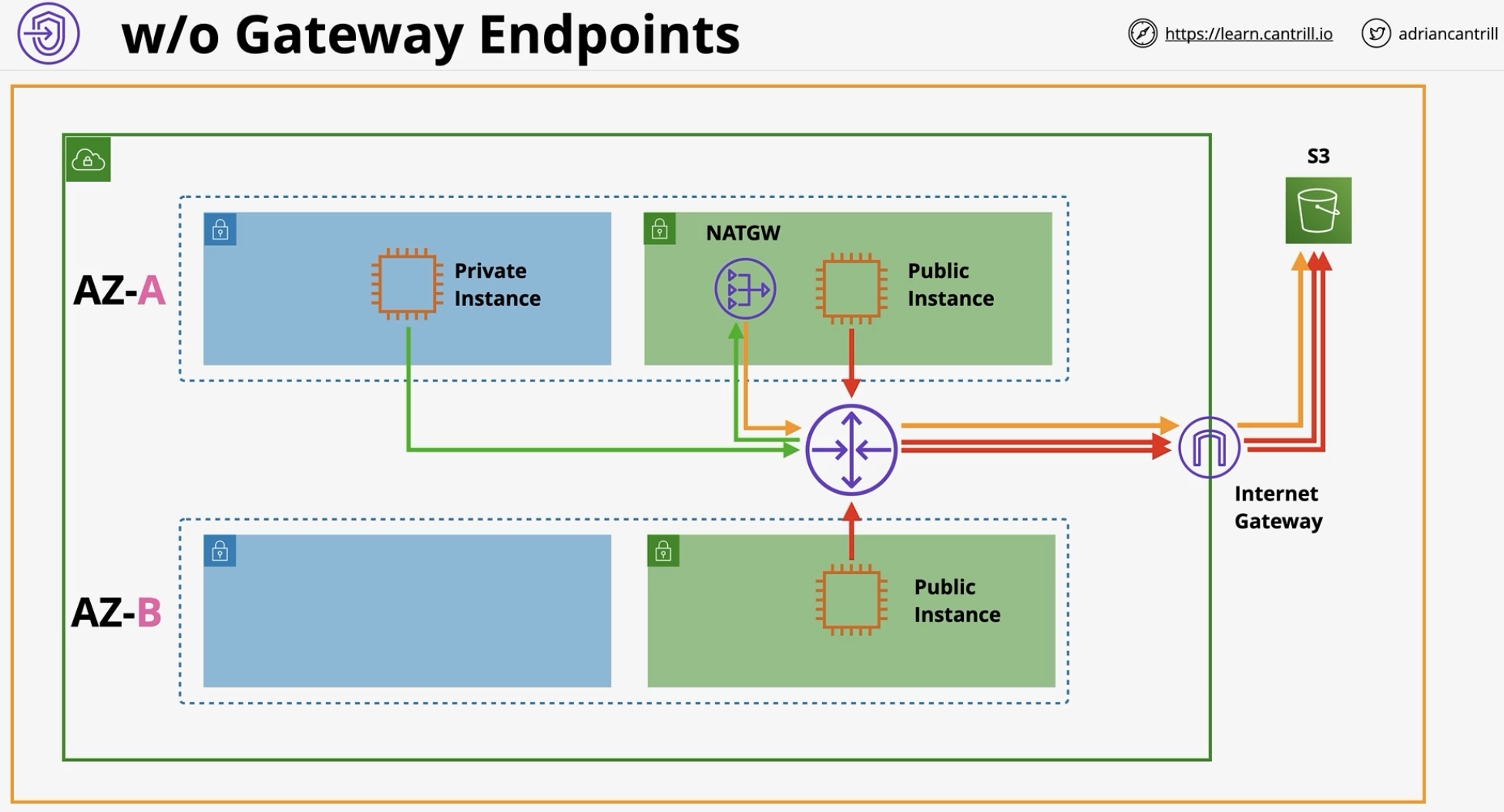

BEFORE
/Attachments/Pasted-image-20230225054359.png)

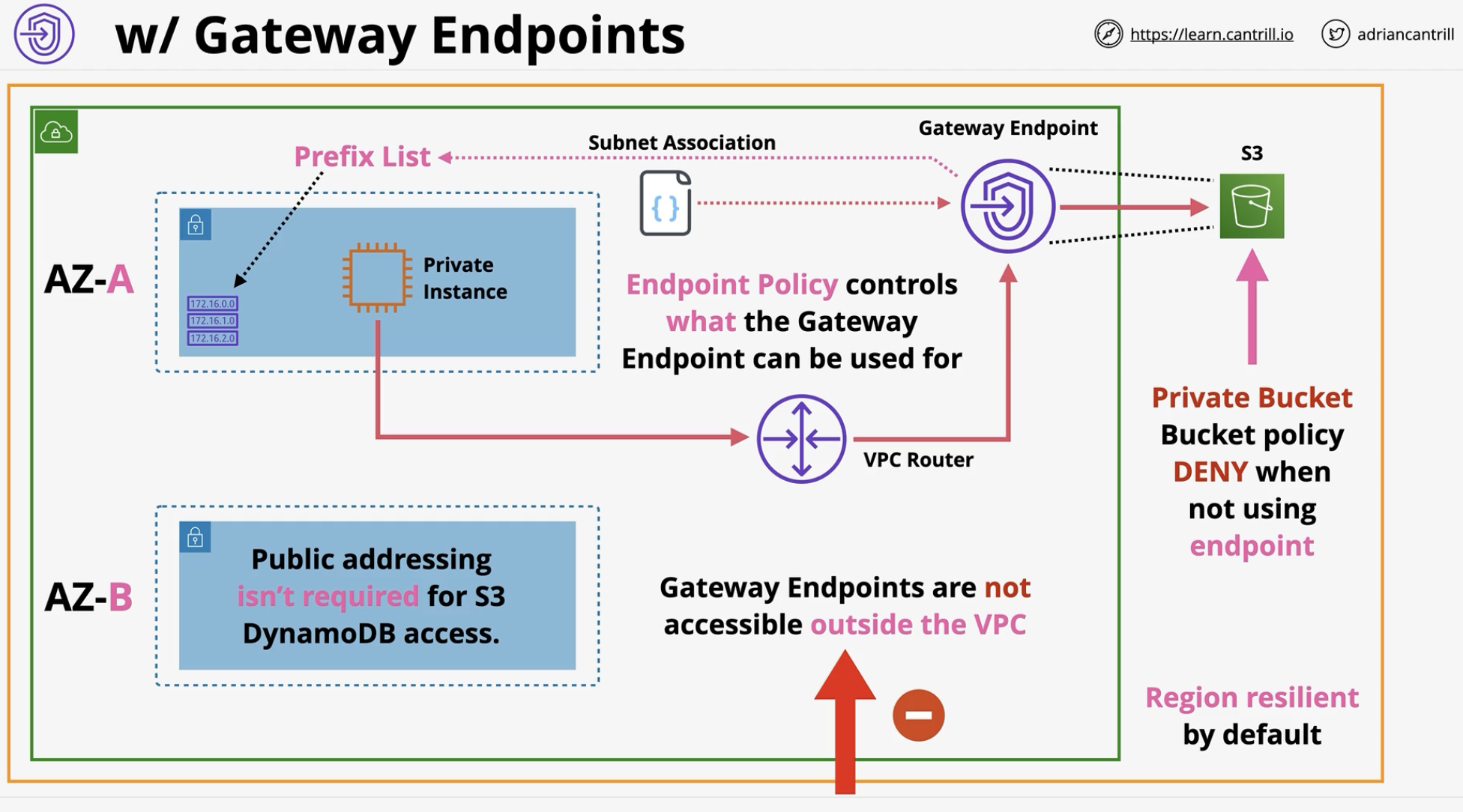

AFTER
/Attachments/Pasted-image-20230225054501.png)
