Kubernetes (K8S)

Last Updated: • 11 min read

Automates (orchestrates) Docker to scale, check for errored out containers and etc.

Both combined with Docker allows us to deploy immutable infrastructure where both system and the application can be represented as a single artifact. Combining with git such artifacts can be represented in “single source of truth” - a repository which contains underlying configuration
CNCF Landscape

Theory

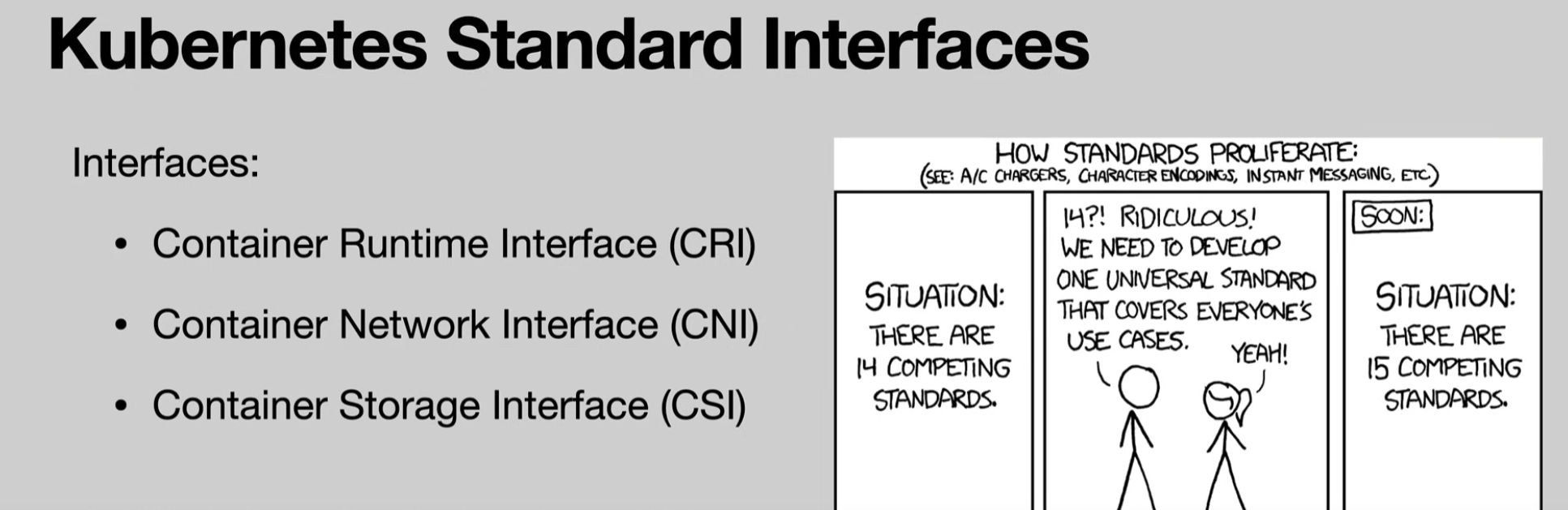

  • CRI used to execute and run container processes in pods.
    • Mostly containerd and cri-o
  • CNI user to define networking.
    • Cloud specific or Open Source Calico, Flannel, Cilium
  • CSI managing storage and volumes.
    • Cloud specific plus cert manager and secrets store CSI Driver

Architecture

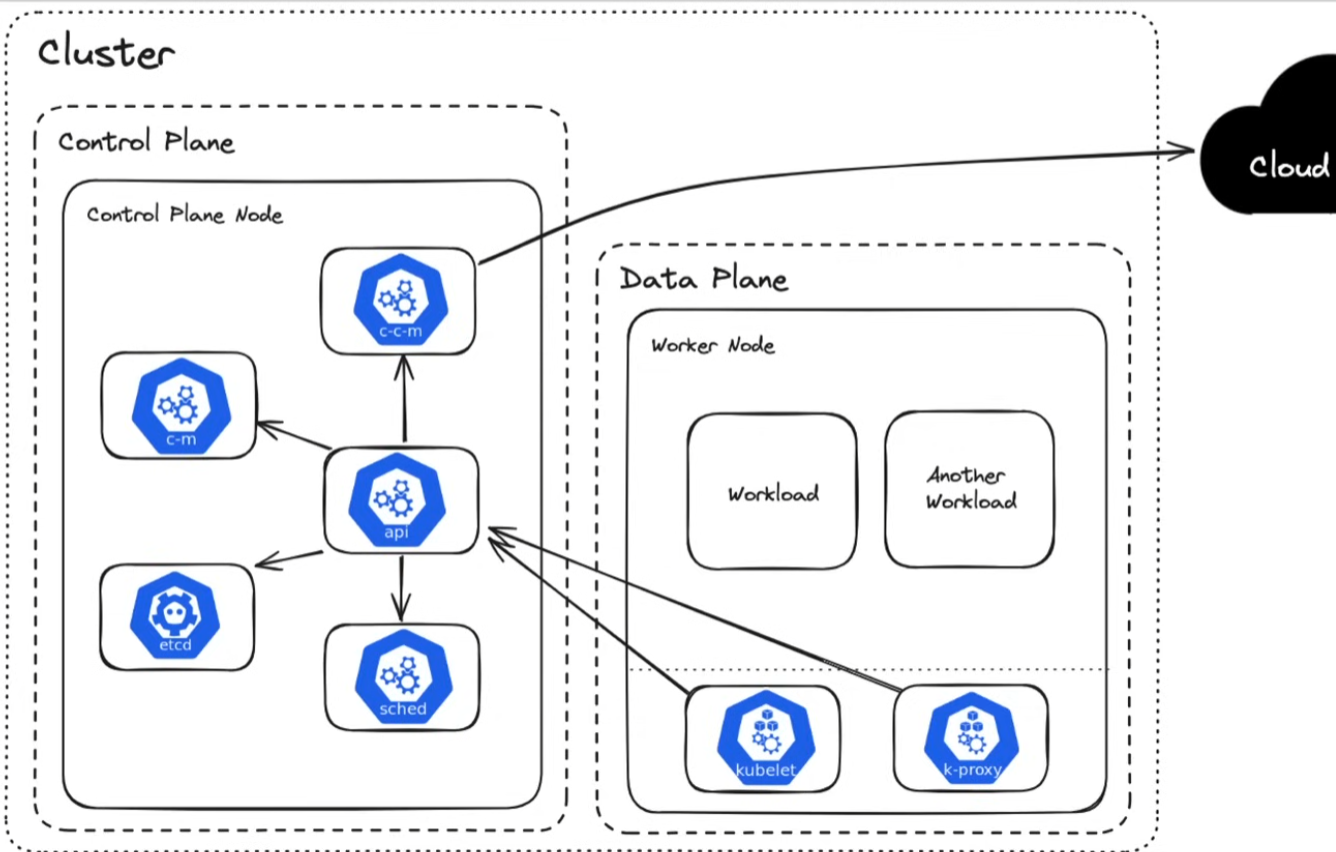

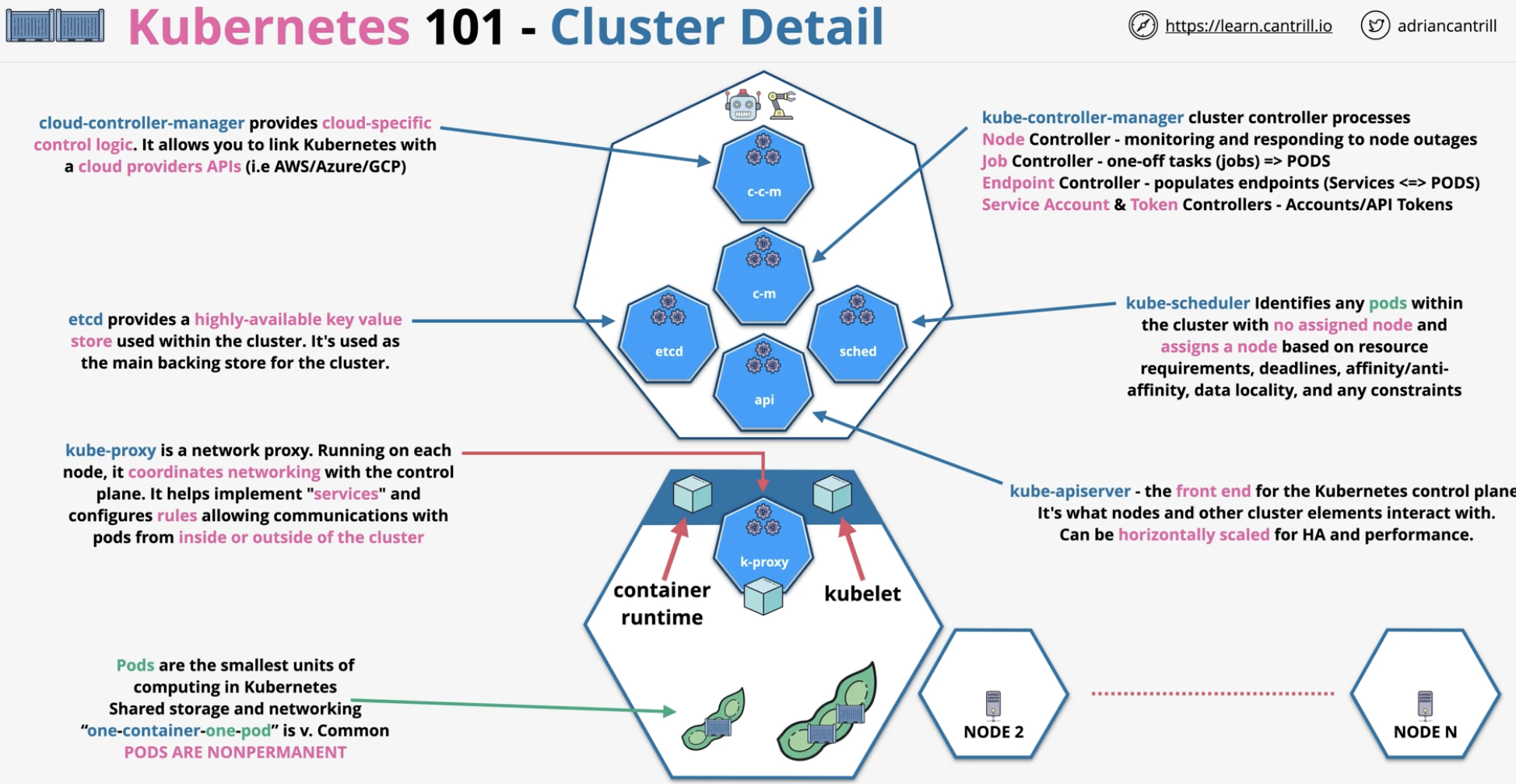

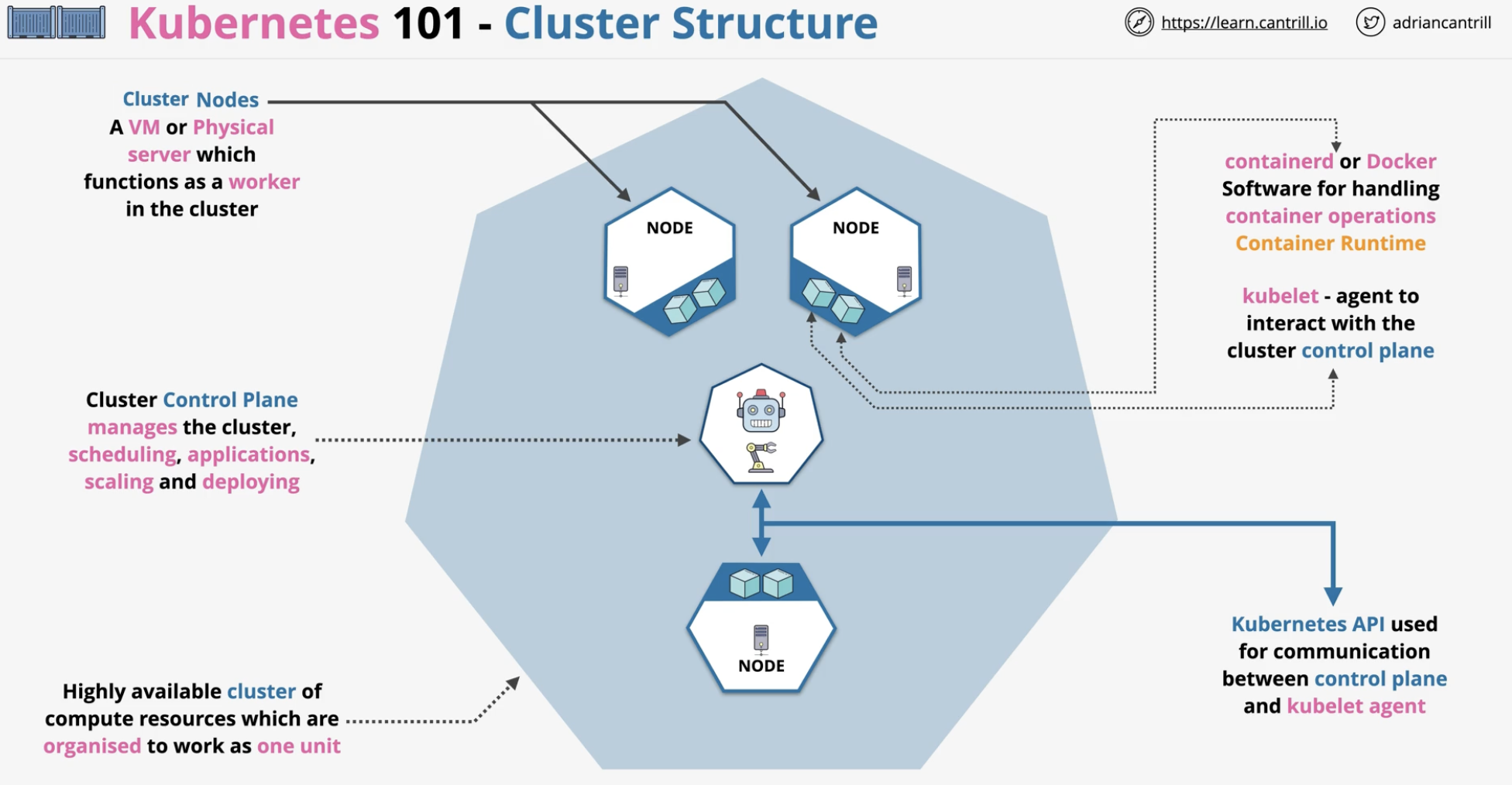

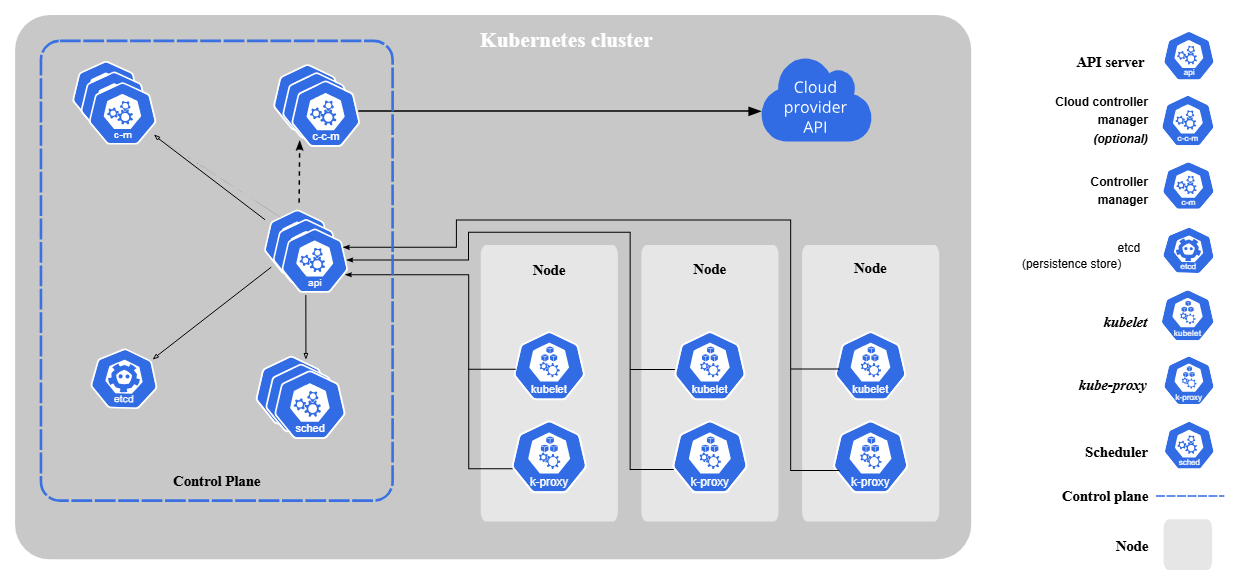

Control Plane

Manages all scheduling, application, scaling, and deploying Kubernetes. Nodes serve as workers in the K8S cluster. Required components which must be installed on every node are:

  • Container runtime - runs the container
  • Kubelet - intermediary between container and node. Executes operations on pods in the node
  • Kubeproxy - applies smart routing of requests (LB), a-la send requests to DB components which are closer (inside the same node)

Services are used to connect between nodes.

Master nodes serve as a controller for nodes. You can have multiple of them deployed for redundancy. Required components which must be installed on every master node are:

  • API Server (kube-apiserver) - accepts all requests coming in or queries from the cluster (UI, API, CLI). Gatekeeps authentication of requests to the cluster.
  • Scheduler (kube-scheduler) - balances new deployments and scale requirements via load balancing on computing resources.
  • Controller Manager (kube-controller-manager) - detects state changes of pods and redeploys them via Scheduler communication.
  • etcd - key-value store, cluster brain, changes written there. Has data on load, usage, etc. Does not store app data.


It all works in scales motion where when you create a deployment it also create ReplicaSet which creates pods. Also if there is already a stray pod with matching label it will be removed by deployment since pods will be created regardless and stray pod will hit with limit condition

Data Plane

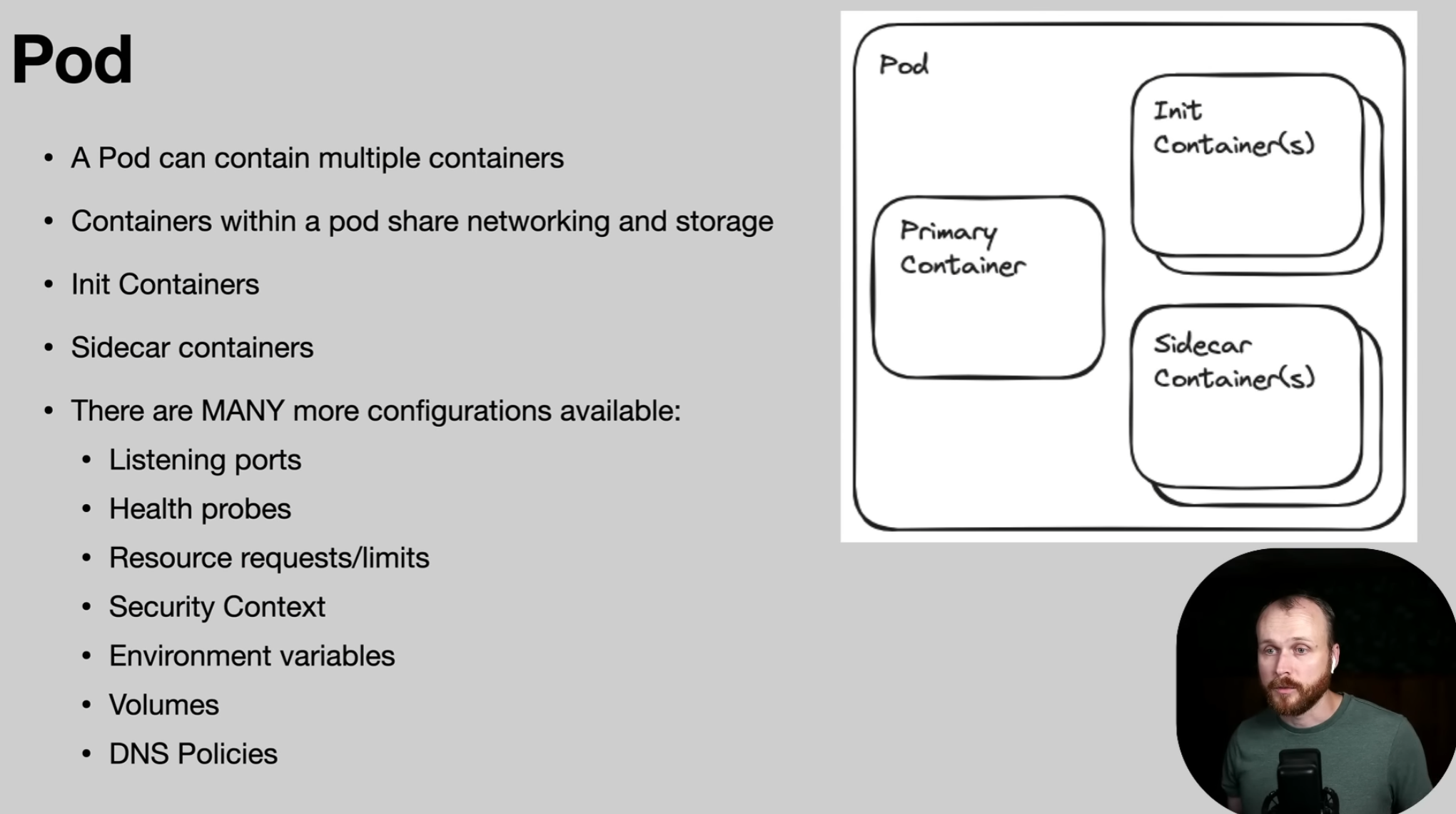

  • Pod - an abstraction over containers, can contain multiple containers
    • e.g. Init container (run before), plus sidecars (run along) and primary
    • Usually 1 app/DB per pod
    • Pod get an internal IP address, (ephemeral)

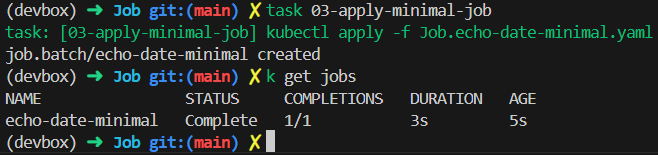

  • Job is an ad-hoc (single use) work until completion container configuration, creates one or mode pods, completes. Pods also assigned random name Set backoffLimit
  • CronJob is like job, but can be scheduled based general CRON Scheduler rules
  • DaemonSet runs a copy of a container pod an all or (selected subset of) nodes in the cluster (brings propagation). Good for monitoring, log aggregation or storage daemon. Does not target control plane
  • Namespaces separate resources like groups avoid name conflicts, but don’t act as security/network boundary by default.

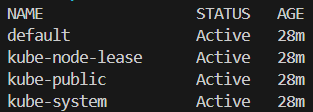

    • The list of default namespaces
  • Node - hosts pods
  • Service - Networking - Service or Ingress
  • Ingress - helps setting up URL, secure protocol and domain name.
    • Accepts requests and can route to multiple Services
    • Acts like an API Gateway (K8S slowly replaces Ingress with GatewayAPI element)

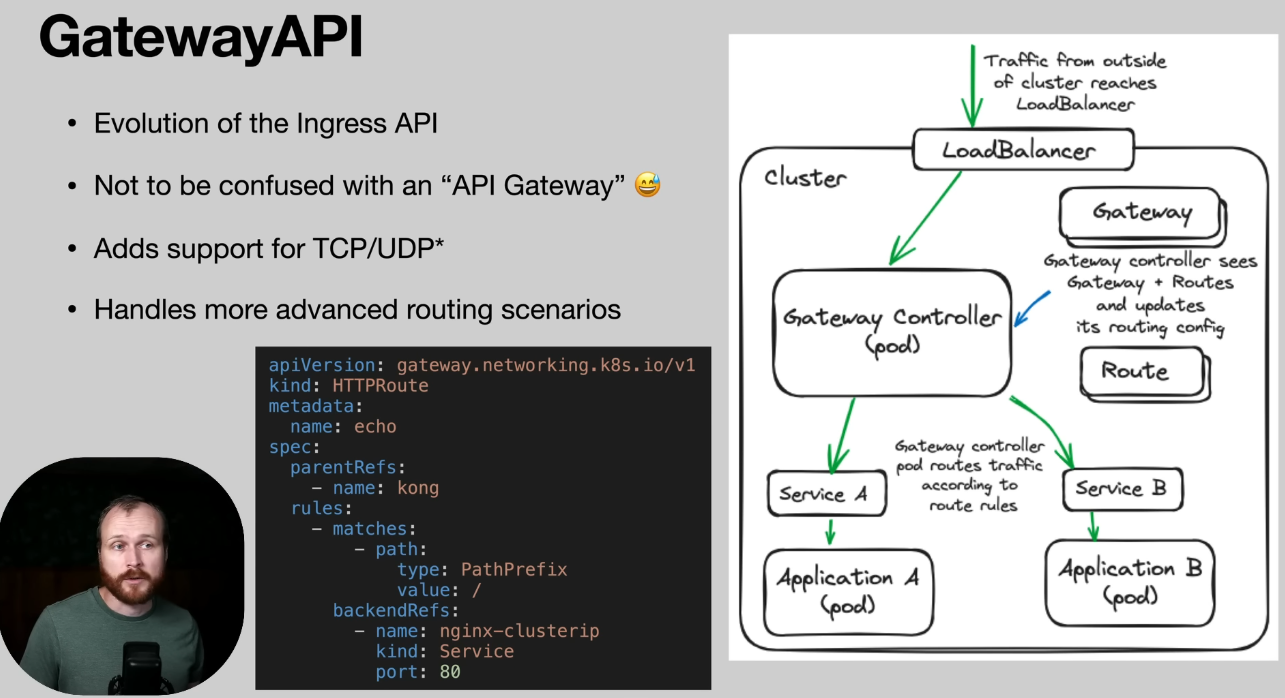

  • GatewayAPI - Evolves form GatewayAPI and support Network gateways

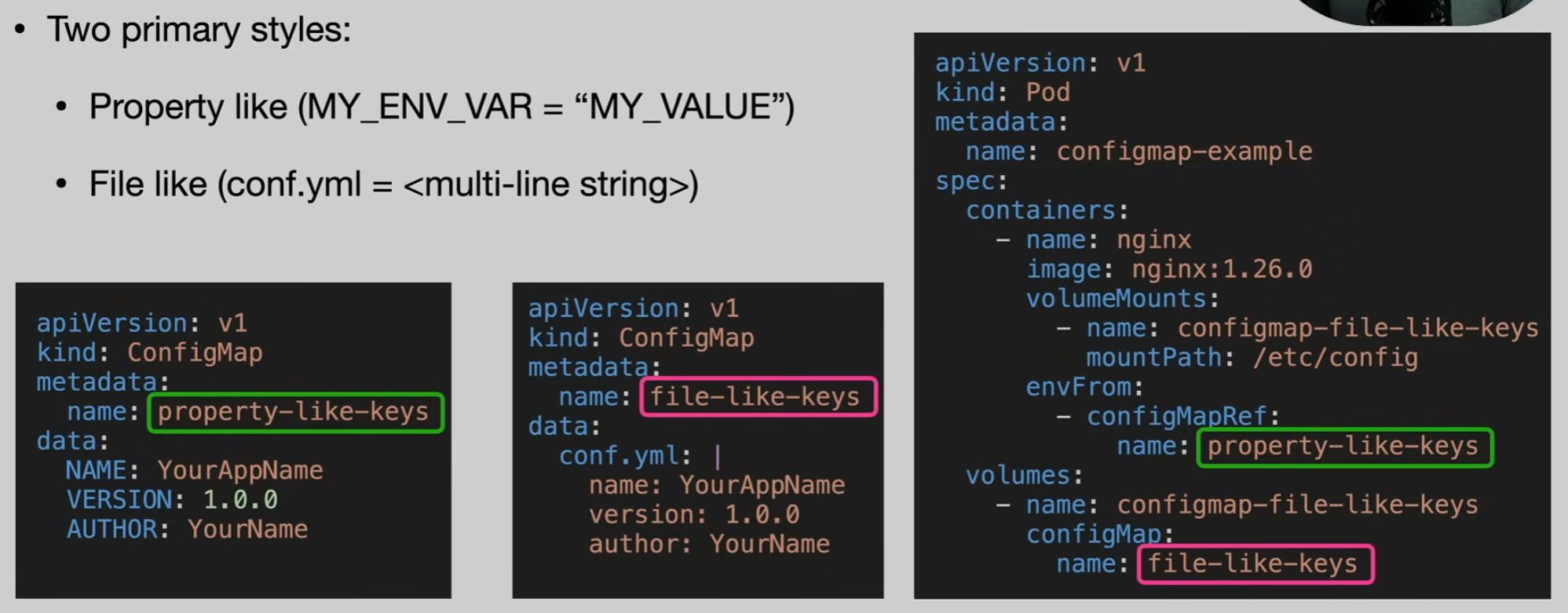

  • Configmap: - maps variables between pods and external services (like DBs credentials and URLs) property-key and file-like-keys
    • Passwords are not stored in config map

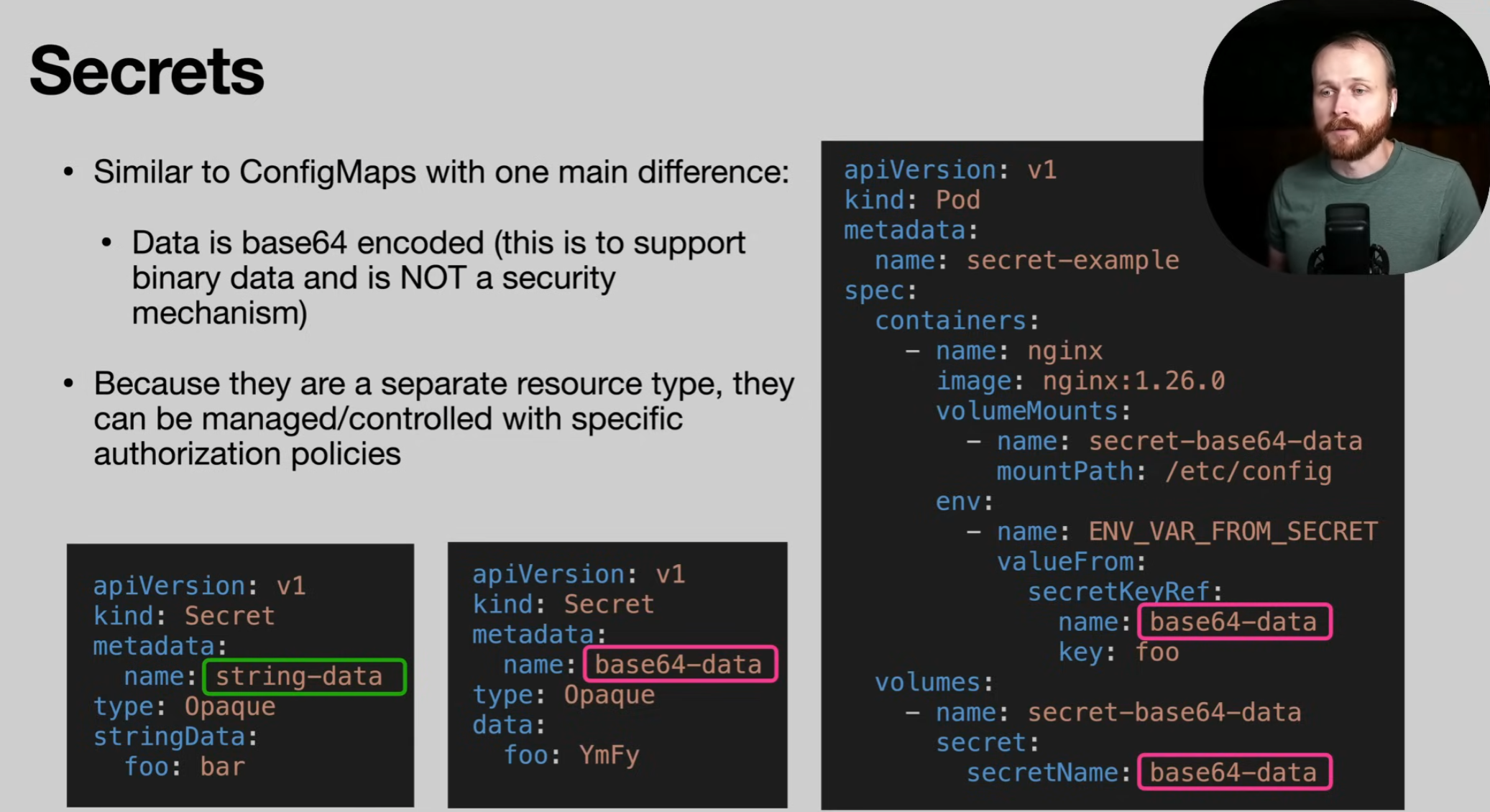

  • Secrets: where you store credentials, encodes in base64, can be controlled via authorization policies.
    • Not enabled by default.
    • Both Secrets and configmap can be used by app though env vars.
  • ReplicaSet adds replication (a subset of a deployment)
    • Labels link ReplicaSets and Pods
  • Deployment: creates blueprints for pods, automates replication adds concepts of rollout and rollbacks, adds revisions akin versioning, implements High availability (HA).
    • When deployment created a rollout is triggered, each rollout creates a deployment revision which allows us to rollback in version.
    • Utilizes ReplicaSet for replication of pods. For example, via deploying a new node with same pods setup.
    • Can’t replicate pod dbs, because they have state - data
  • Statefulsets - gives pods sticky identity (0,1,2… naming), each pod mounts separate volumes and rollout is by order. Helps preserve state, for example, helps DBs like primary vs read replica. Deployment for stateful application.
    • Pods created in order, one after another, when scaled down last created are deleted
    • Pods get predictable names -0/1/2/3/4
    • Either use this or deploy DB outside K8S in a highly available infra, like cloud.
    • You cannot modify many of the created fields from YAML, like storage size/request!

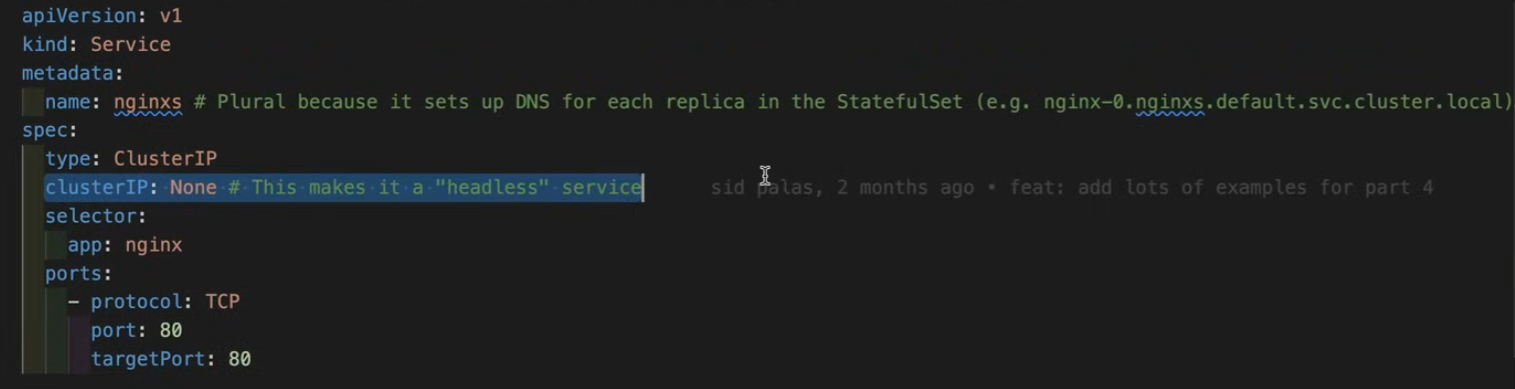

    • Has field serviceName, i.e. creating dns service for each replica independently (as if each pods got dns name), so in Service declaration you should make it headless with type: ClusterIP and ClusterIP: None
    • Why headless Each connection to the service is forwarded to one randomly selected backing pod. But what if the client needs to connect to all of those pods? What if the backing pods themselves need to each connect to all the other backing pods. Connecting through the service clearly isn’t the way to do this. Service | Kubernetes
    • StatefulSets currently require a Headless Service to be responsible for the network identity of the Pods. You are responsible for creating this Service.

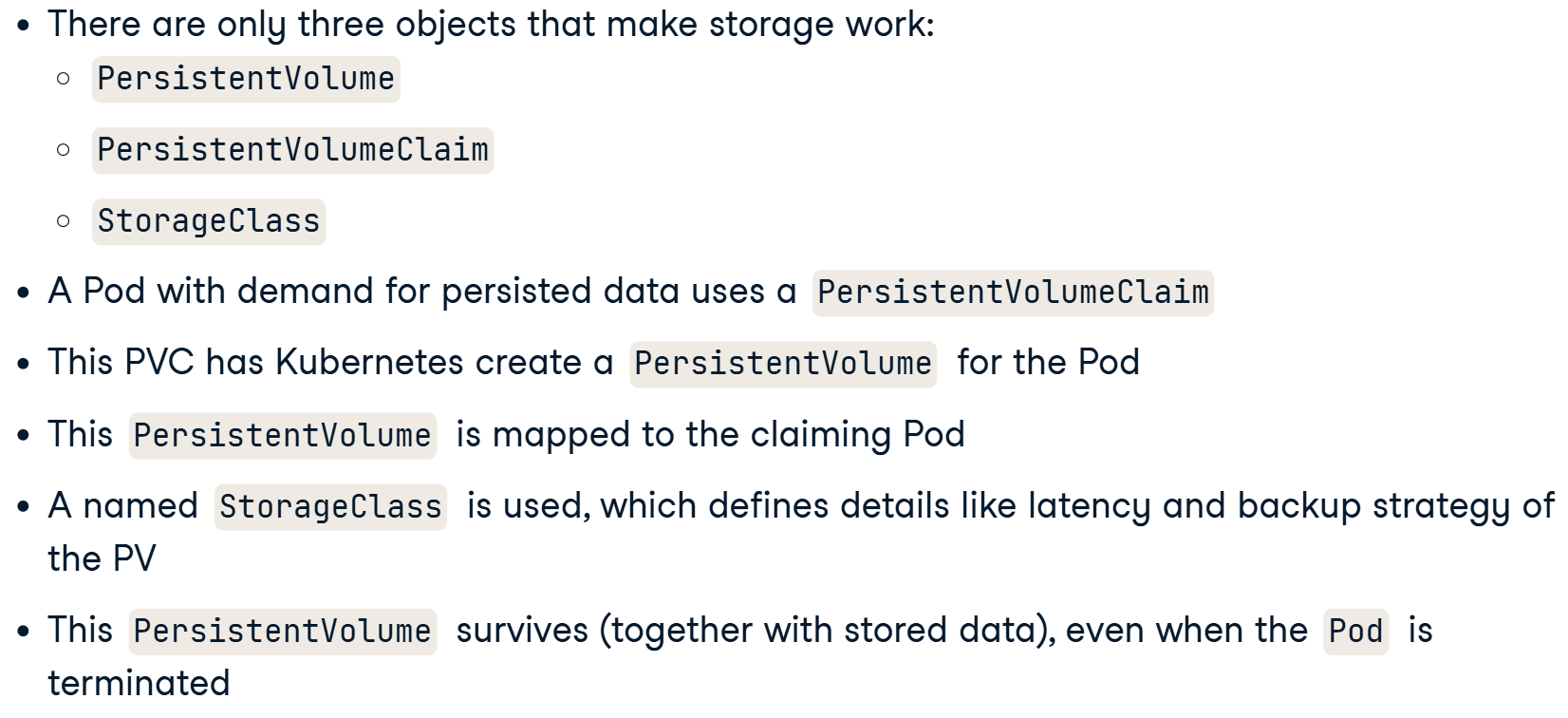

  • PersistentVolume and PersistentVolumeClaim stores data persistently, functions as emulated physical storage. PVC is a declaration of need for storage that can at some point become available / satisfied - as in bound to some actual PV. PVC consumes PV. StatefulSet volumeClaimTemplate enables dynamic provision of PV.
    • Provisioned via PVs, generally via user, via Storage Classes SC
    • The basis can be local or remote like (s3)

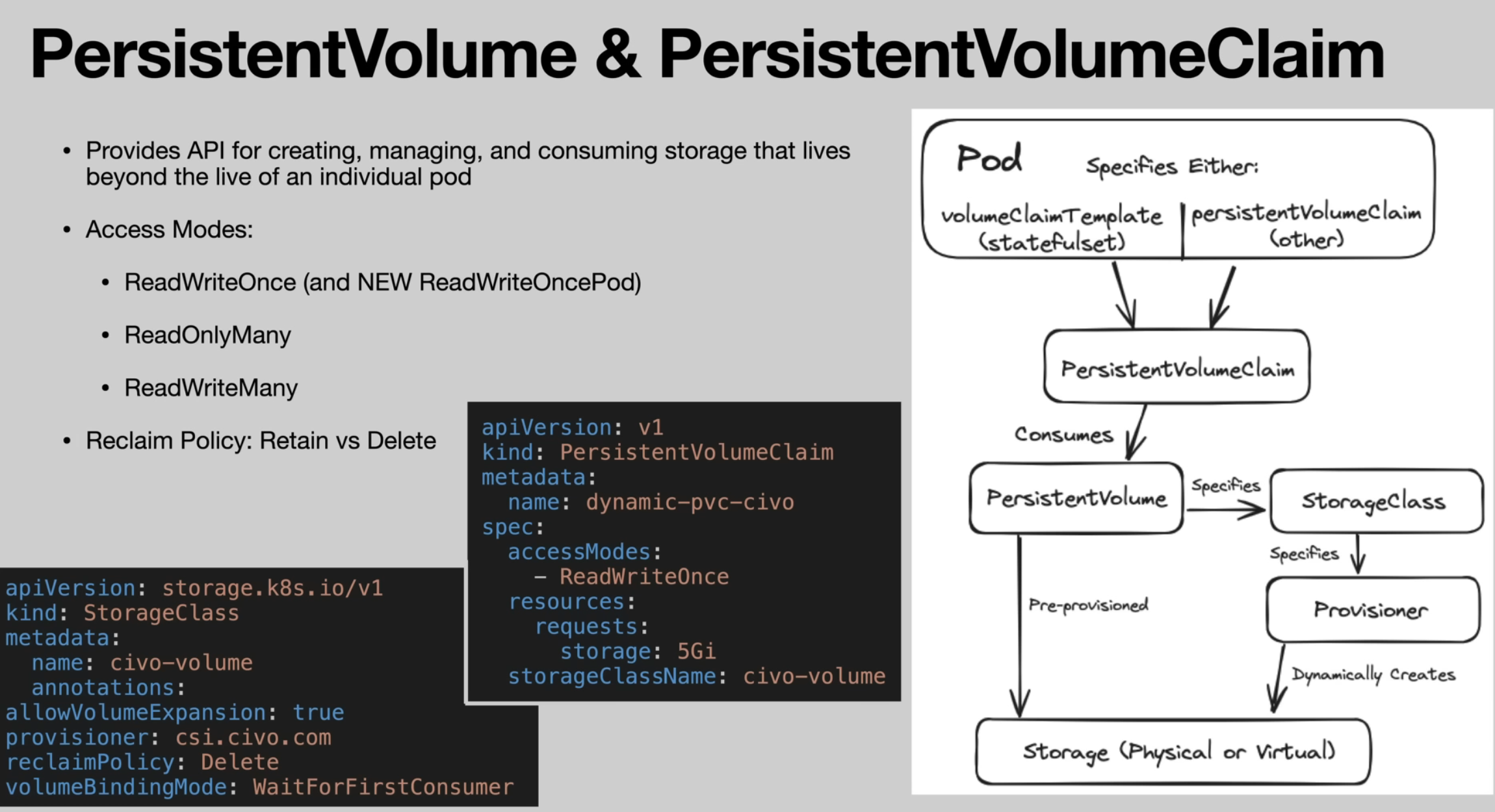

PersistentVolume and PersistentVolumeClaim on

| Resource | Namespaced? | Visible across Namespaces? | Notes |
| --------------------------- | ----------- | -------------------------- | ------------------------------------ |
| PersistentVolume (PV) | ❌ No | ✅ Yes | Like shared storage pool |
| PersistentVolumeClaim (PVC) | ✅ Yes | ❌ No | Tied to 1 namespace |
| Pod | ✅ Yes | ❌ No | Must mount PVCs in its own namespace |

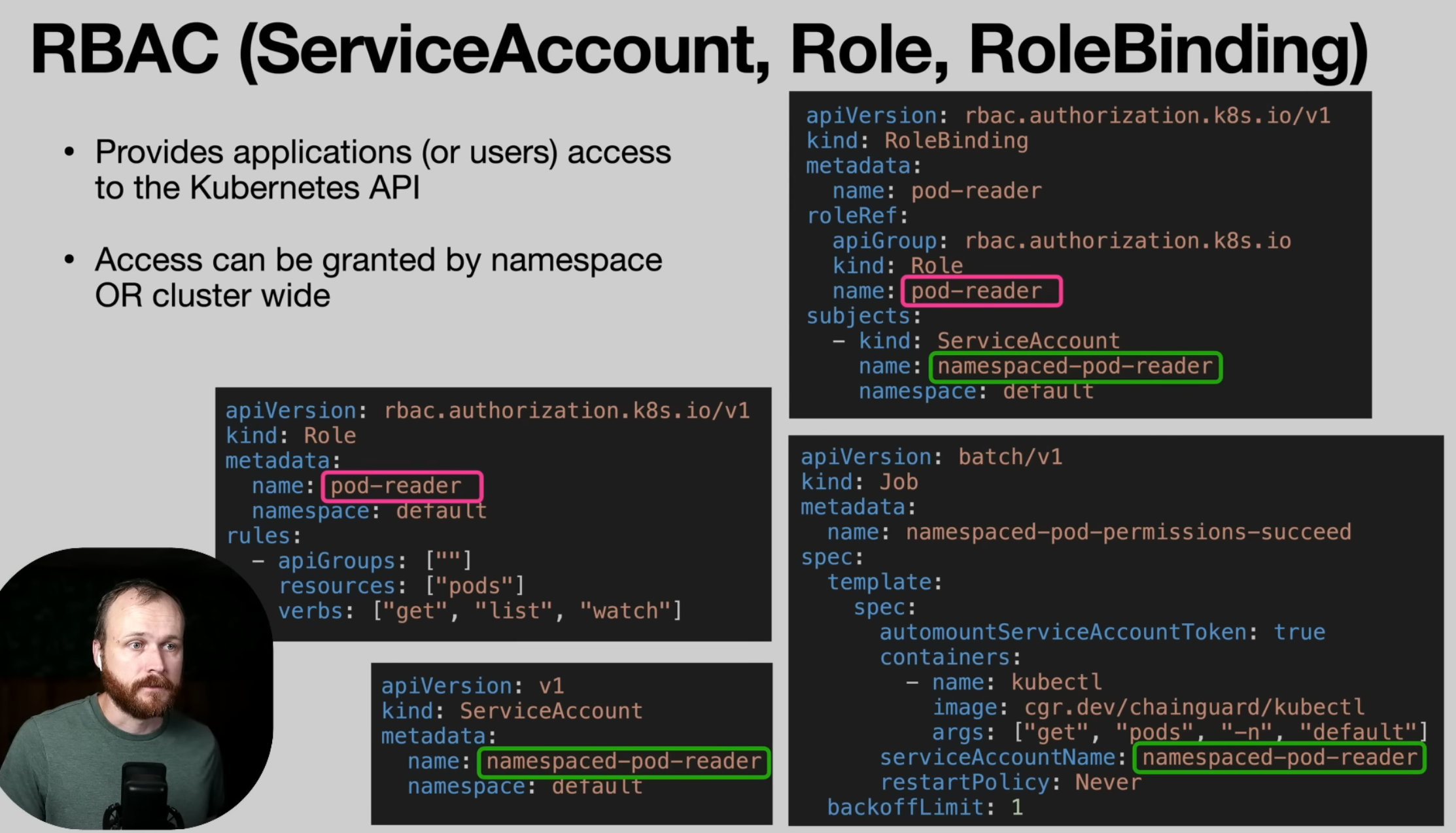

  • RBAC (ServiceAccount, Role, RoleBinding) - Service account is an auth object, role if what pods address to and RoleBinding merges these two entities. Role is namespace level while ClusterRole is cluster level

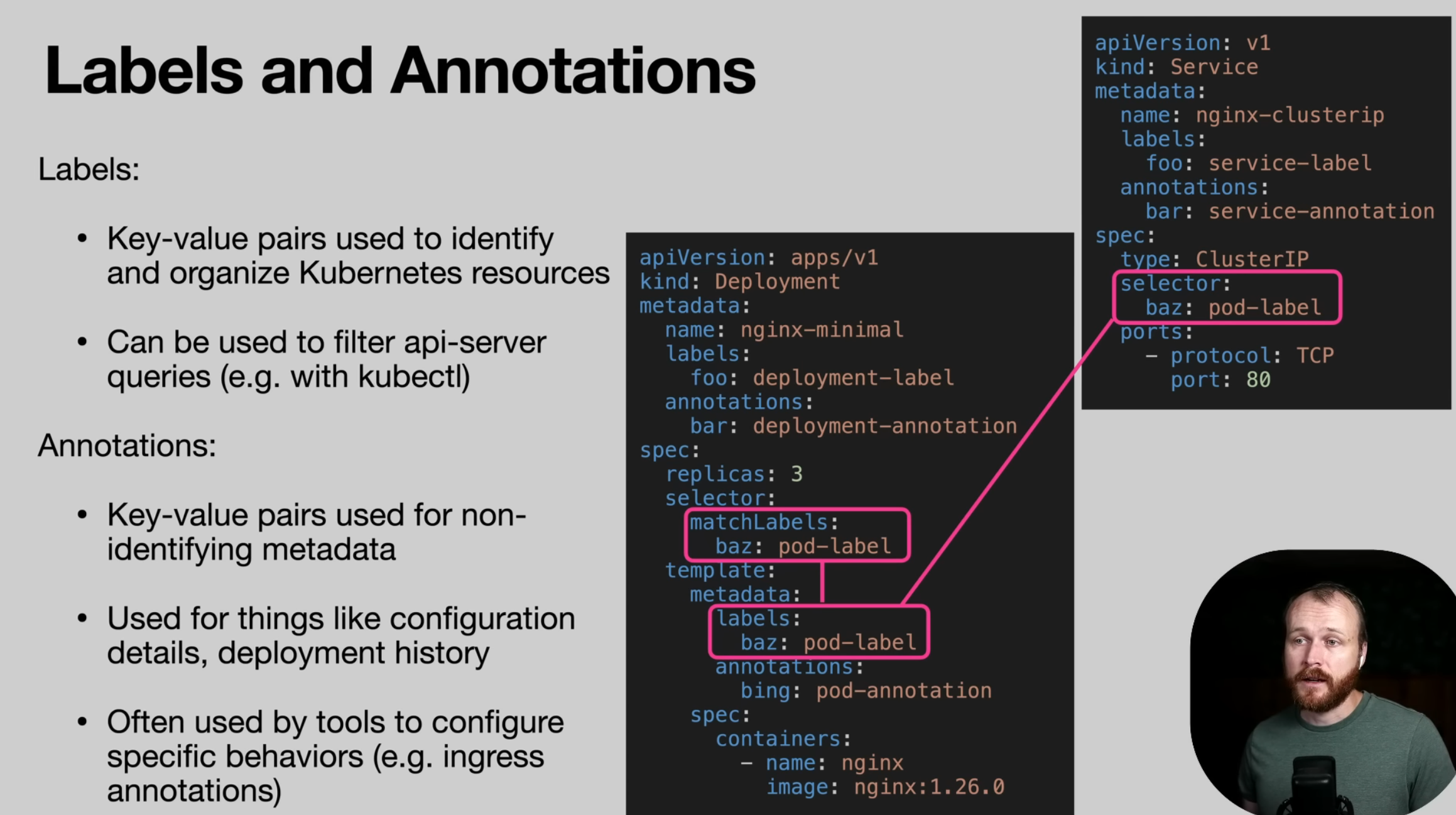

  • Labels and Annotations:

    You can get explanation of template formats via
    kubectl explain <component> or kubectl explain <component>.<sub>
    GitHub - BretFisher/podspec: Kubernetes Pod Specification Good Defaults

Deployment

There are two deployment strategies, these are defined in .spec.strategy.type

  • RollingUpdate: gradually replace old pods with new ones.

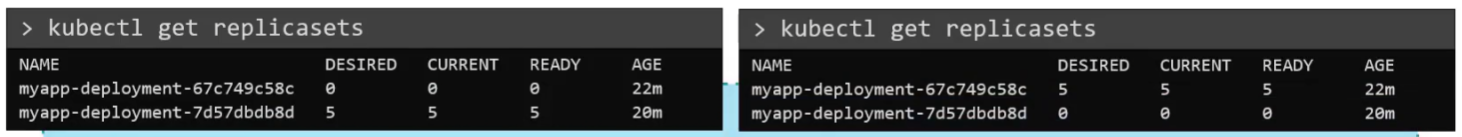

    • Logs: gradual scale down of old ReplicaSet and scale up of new ReplicaSet
  • Recreate: terminate all pods, create new ones.
    • Logs: total scale down of old ReplicaSet and scale up of new ReplicaSet.
flowchart TD
    subgraph Recreate Strategy
        A1("Old Pods: nginx:1.7.0") -->|Terminate All Pods| B1["Application Down"]
        B1 -->|Start New Pods| C1("New Pods: nginx:1.7.1")
    end

    subgraph Rolling Update Strategy
        A2("Old Pods: nginx:1.7.0") -->|Terminate 1 Pod| B2("New Pod: nginx:1.7.1")
        B2 -->|Repeat Stepwise| C2("All Pods: nginx:1.7.1")
        A2 -.->|Continue Serving Traffic| C2
    end

Check rollout status with kubectl rollout status and history with kubectl rollout history.

Rolling back is possible via kubectl rollout undo deployment/myapp-deployment. For these actions you can see the difference in ReplicaSet behavior, for example, before and after rollout undo:

You can add --record to command affecting deployments which will register the use of the command in kubectl rollout history.

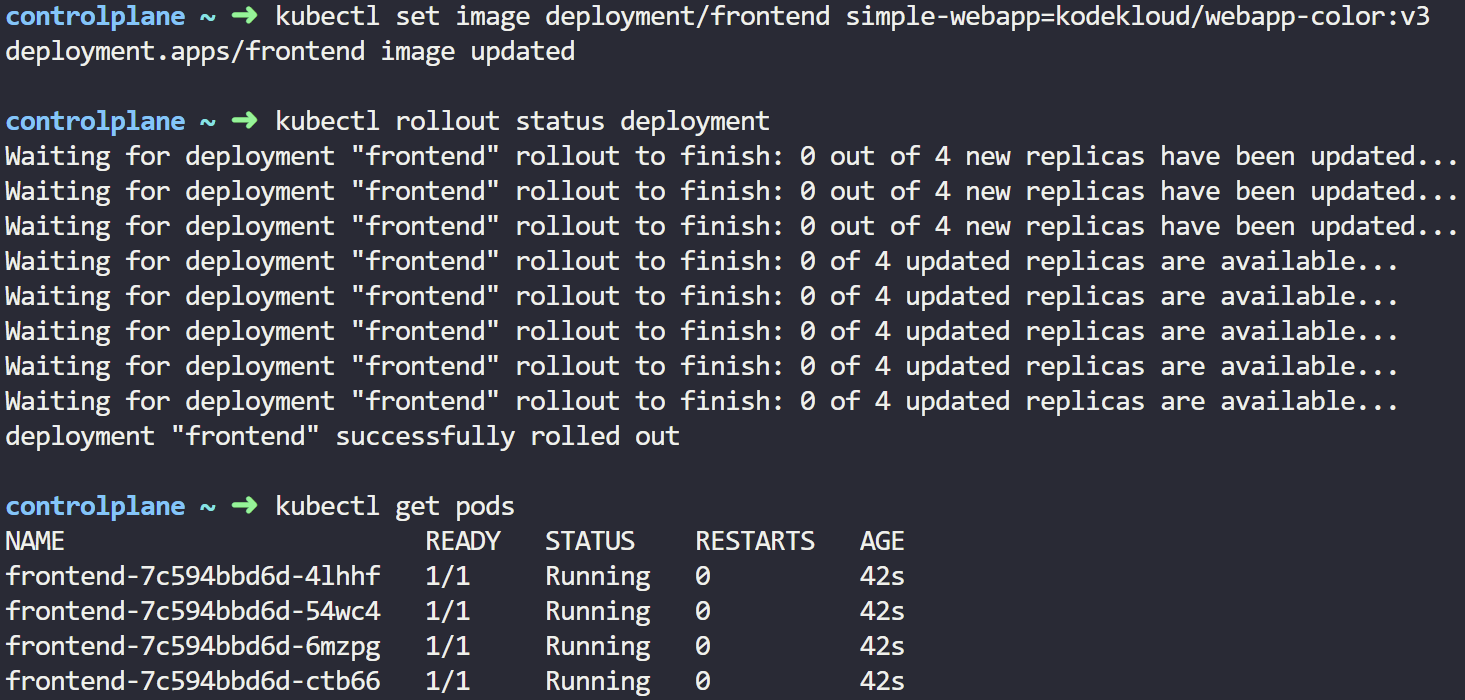

You can perform ad-hoc update of the deployment configuration with kubectl set image deployment/frontend simple-webapp=kodekloud/webapp-color:v2, but this won’t update the definition file, so it’s better to change config in file, GitOps way.

There are two ways of manually scaling down the deployment:

  • Reduce replicas parameter in manifest and kubectl replace -f xx.yaml
  • kubectl scale <type> --replicas=6 or `kubectl scale -replicas=6 -f xx.yaml

apply vs replace

apply acts as incremental update and does not change selectors. replace completely sets a new deployment.

In deployment labels work as additional identifiers, for example you can distinguish environment (prod, dev, stage, test) with it.

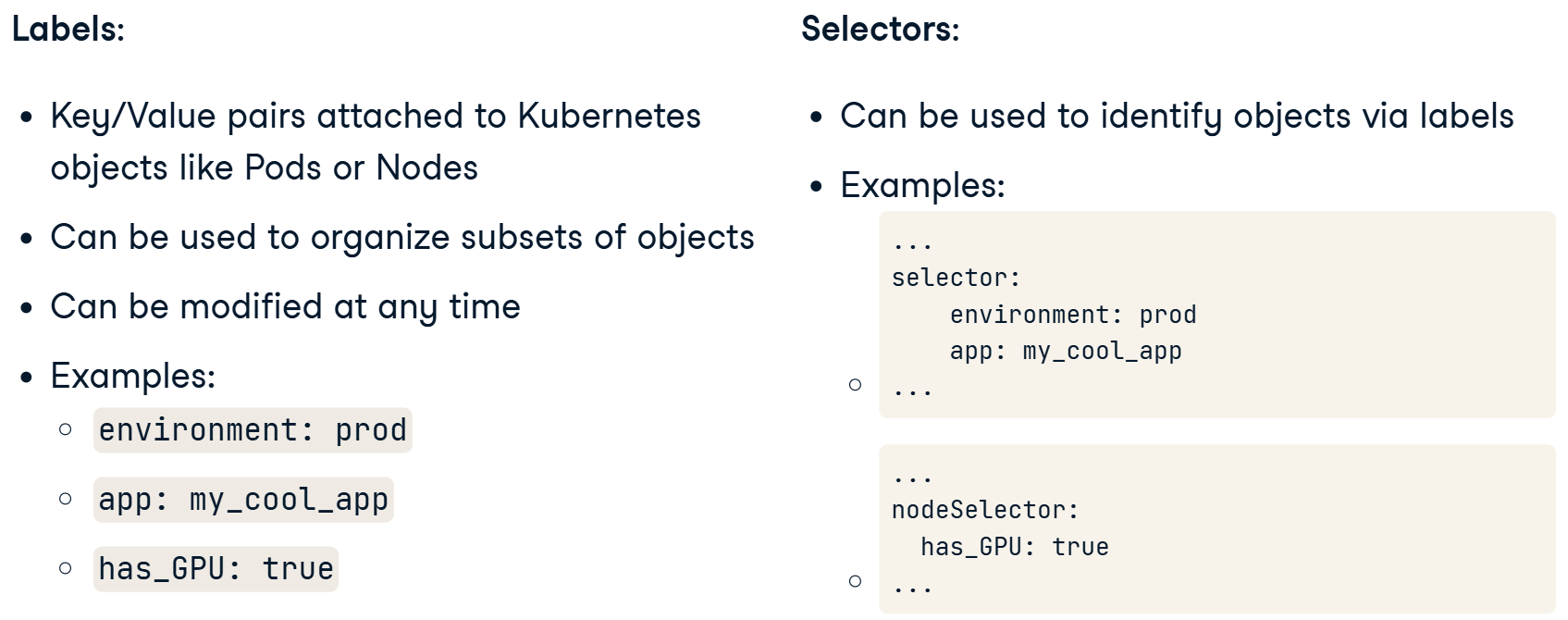

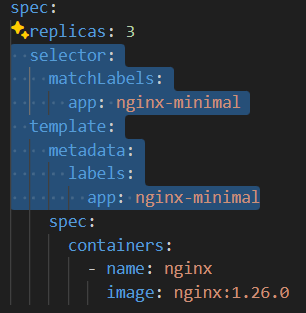

Selectors link deployment configuration to specific pods. Matches selector to a pod’s template: metadata: label:

Labels, Selectors & Namespaces

Labels are classic key-value pairs, modifiable.
Selectors are used in manifests, to filter and act on resources under the label.


Namespaces on are strictly separate resources in the cluster, so they have separate RBAC, quota and network policies

Standard practice name key as app if you deploy application, so app: nginx

Networking - Services, Ingress, and Gateway API

The ultimate purpose of these networking components is to enable users/edge devices to access our application, though they achieve it differently.

Low Level Networking

Kubernetes expects that nodes and pods within a cluster can communicate with one another without relying on NAT. There are solutions to enable this, CNI overview | Ubuntu if you want to self host Kubernetes, the list is not full. Cloud providers use something on their end. In the end your K8S Cluster allocates IPs and setups necessary routing between nodes under the hood.


A Service uses selectors to determine which Pods it should route traffic to, based on the labels those Pods have.

  1. Kind: Service (based on selector match with labels defined in Deployment)

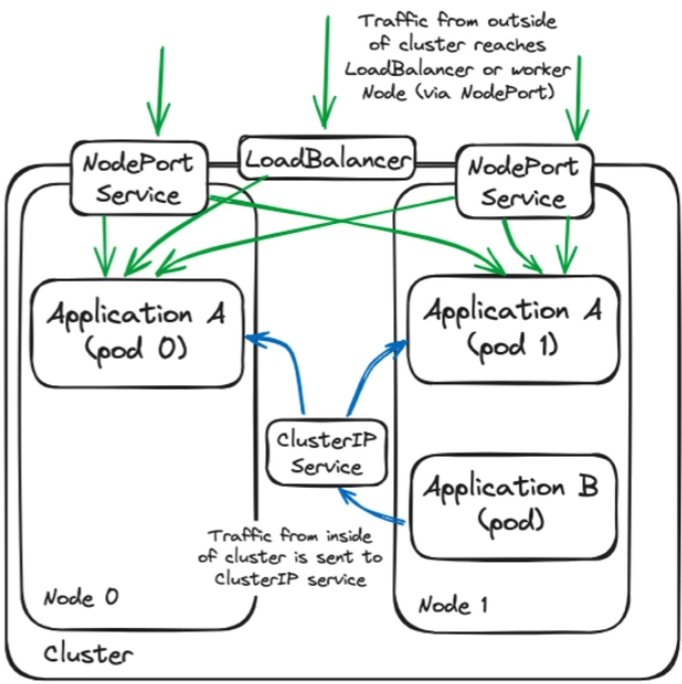

    1. ClusterIP: Internal to Cluster. Services are reachable by pods/services in the Cluster.
    2. NodePort: Can multi-node. Balancing Algorithm: Random.
      Services are reachable by clients on the same LAN. Note for security your k8s host nodes should be on a private subnet, thus clients on the internet won’t be able to reach this service.
    3. LoadBalancer: Provisions external facing LB. Services are reachable by everyone connected to the internet (Common architecture is L4 LB is publicly accessible on the internet by putting it in a DMZ. Or giving it both a private and public IP and k8s host nodes are on a private subnet) (sudo $(which cloud-provider-kind) for local k8s so that LB works)
  2. Kind: Ingress
    1. Expose to internet, route to multiple services, setup advances HTTP stuff, works similarly to an API.

Tip

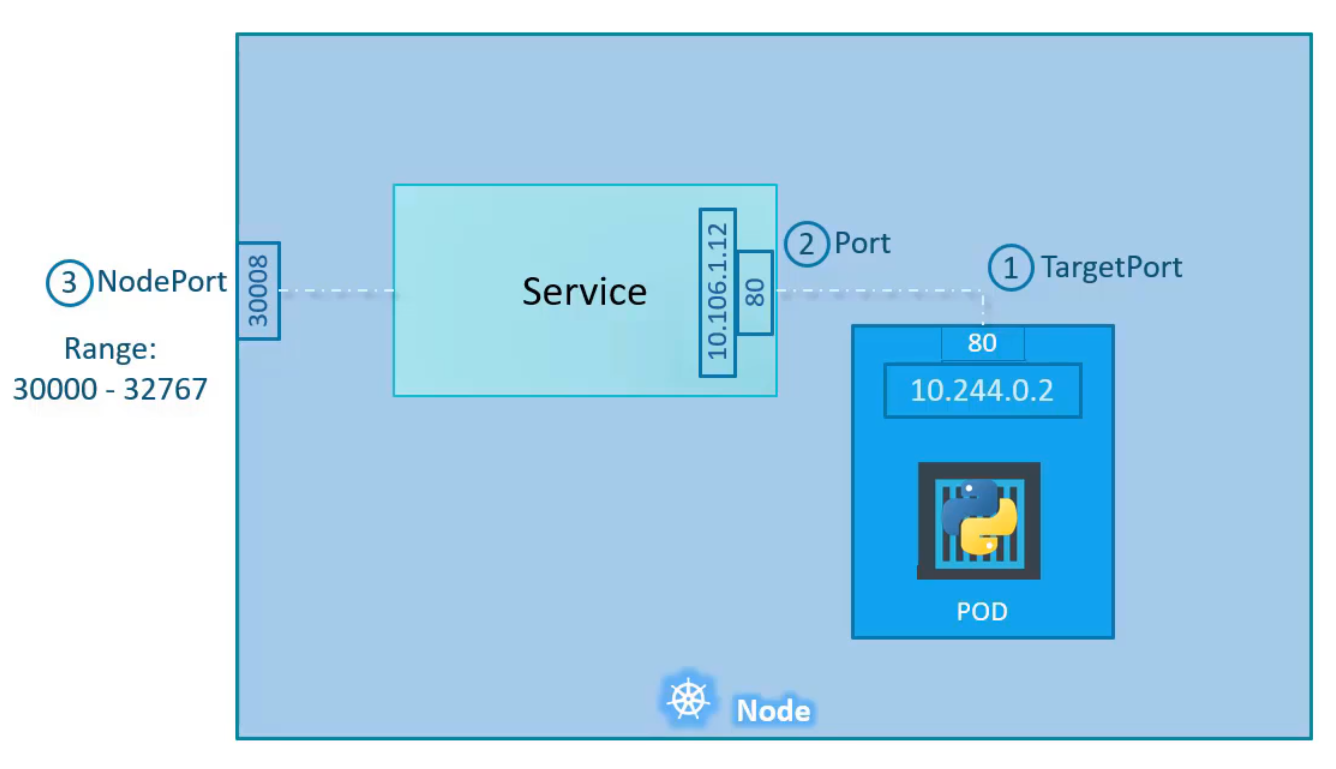

Generally people tend to assign same values to port and targetPort , to keep things simpler.

Kubernetes has internal DNS service like Docker Compose so you can resolve a Service within a pod.


If you are within the same namespace you can resolve short name

If you are reaching over namespaces, use DNS FQDN

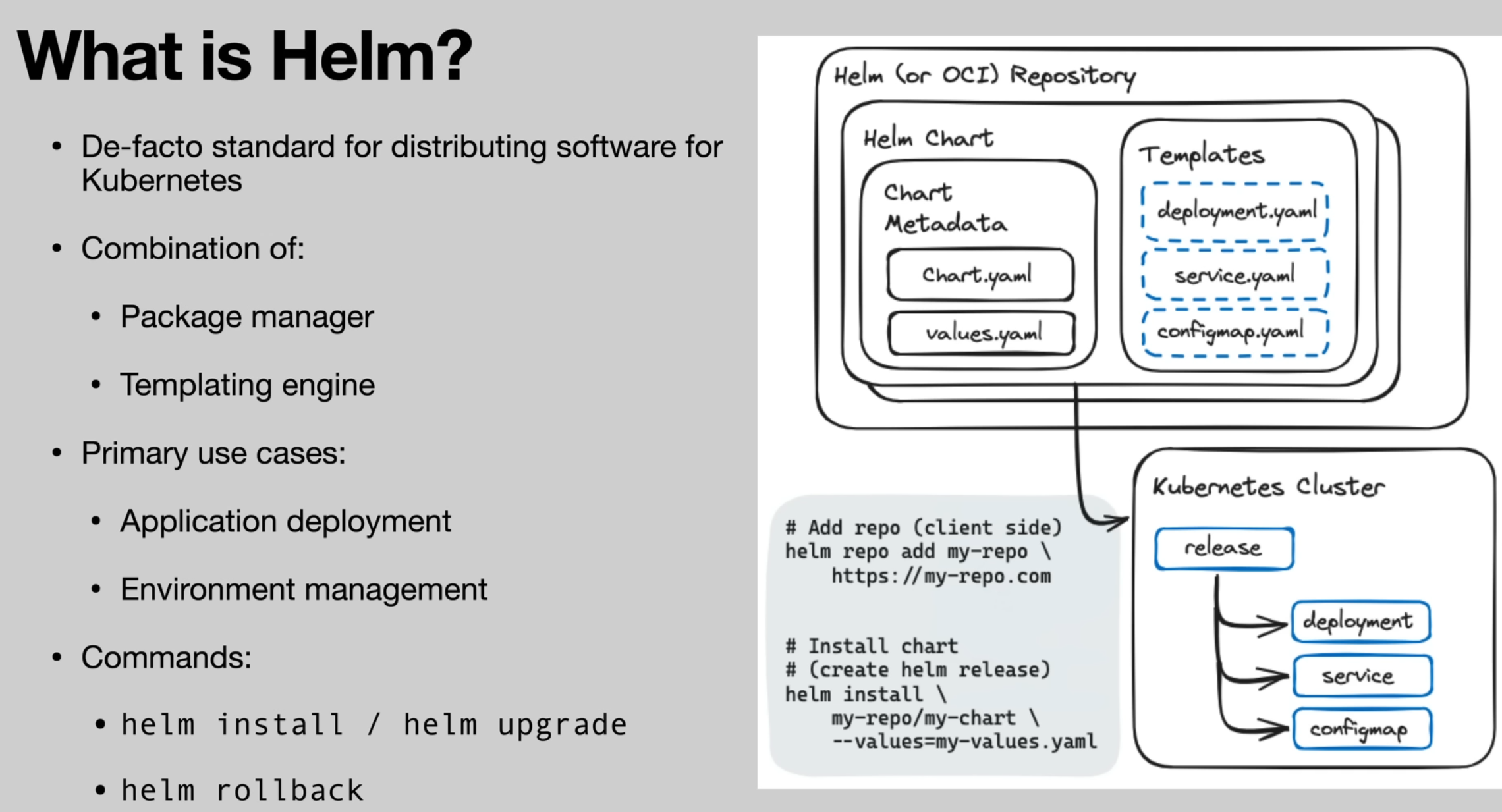

Helm

Distribution and versioning of Kubernetes applications.

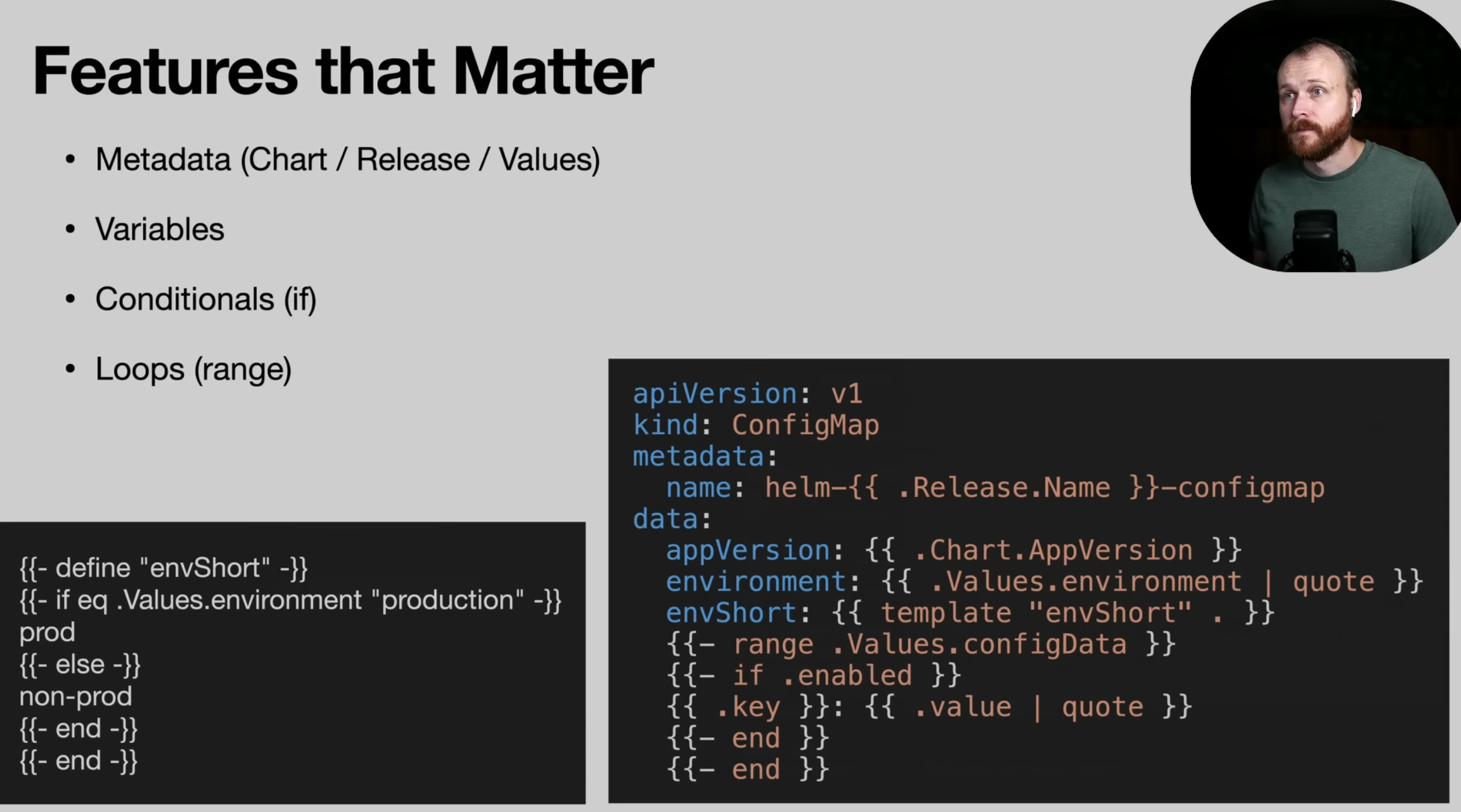

It is good at templating.

values.yaml can have a supplementary values.schema.json to define a schema for values. Useful for error prevention

Helm history of the releases in secrets of the clusters.

helm show values apache-airflow/airflow to show configuration values which you can tackle
kubectl port-forward svc/airflow-webserver 8080:8080 --namespace airflow

In practice

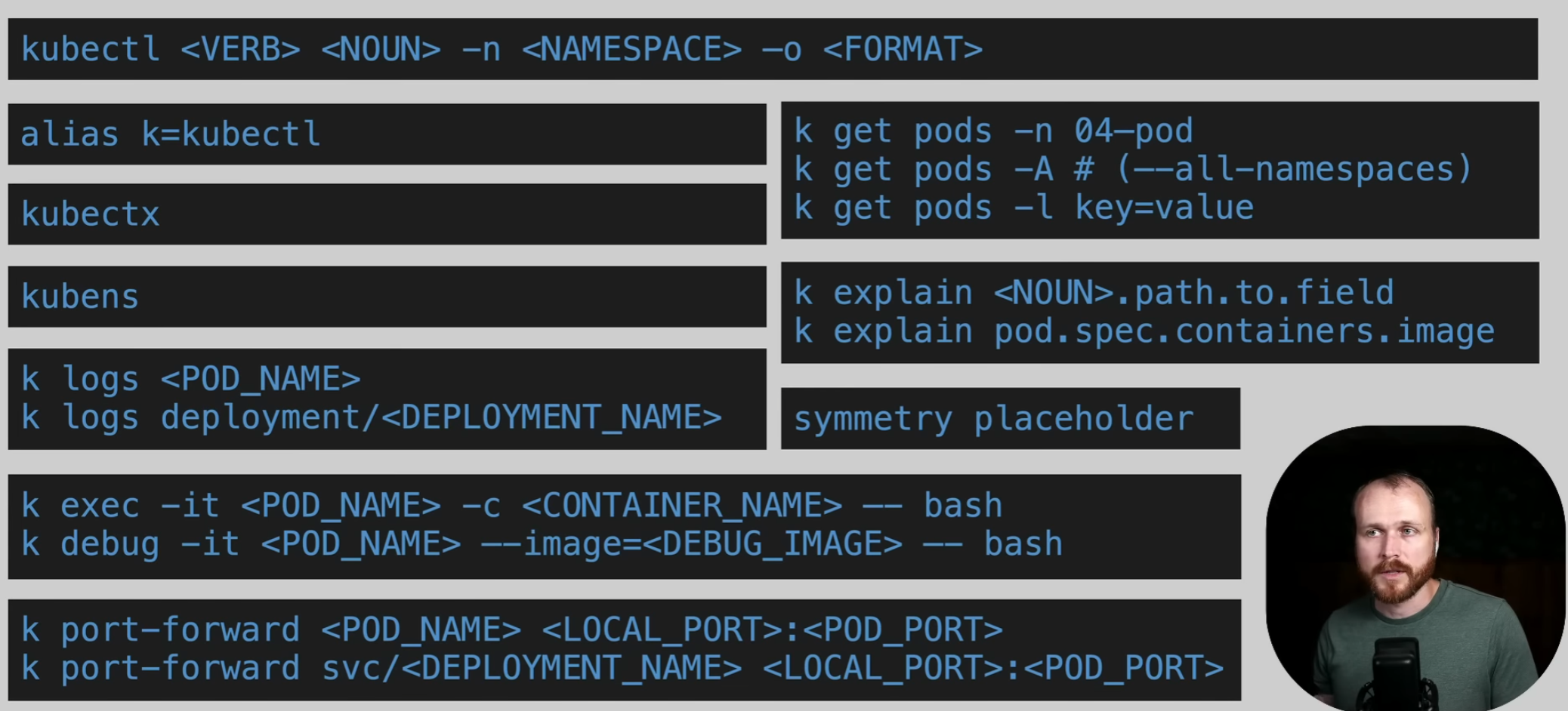

CLI - kubectl

List all pods in the namespace
kubectl get pods -n new-prod

List pods and include additional info
kubectl get pods -o wide

Create curl pod (only use this way as demonstration)

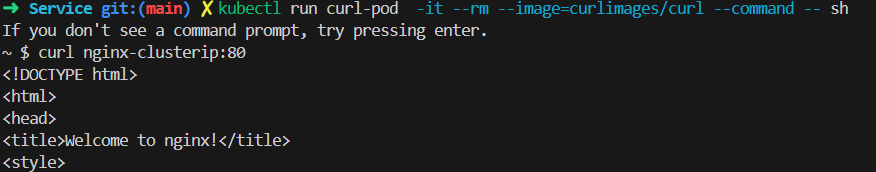

kubectl run curl-pod -it --rm --image=curlimages/curl --command -- sh

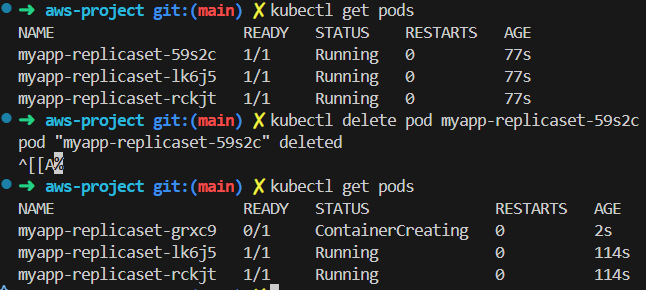

How replication works in practice:

Dry run to preview changes:

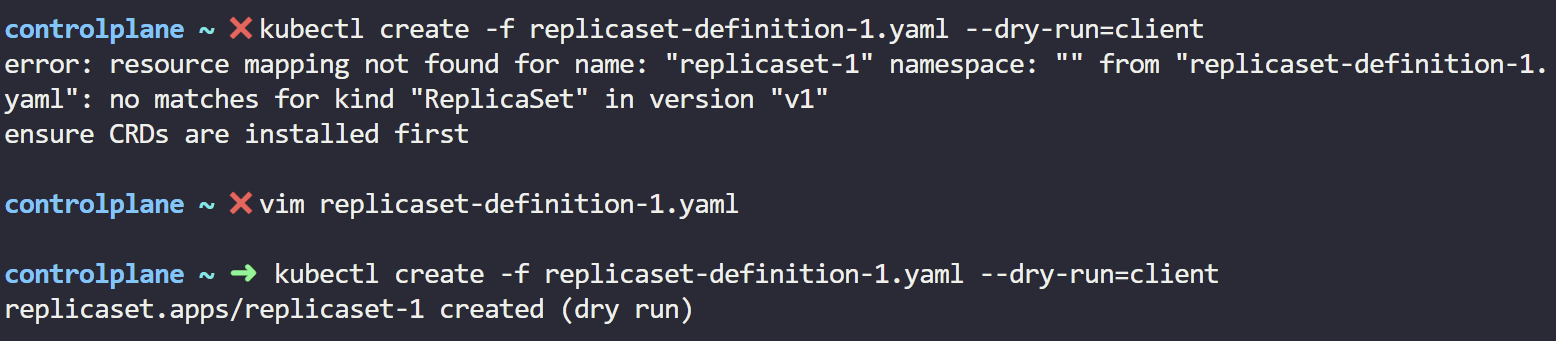

kubectl create -f replicaset-definition-1.yaml --dry-run=client


Execute command in the container, like docker exec:

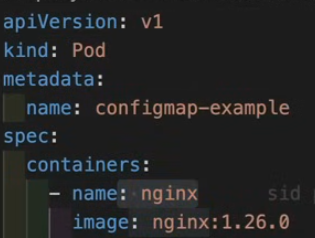

kubectl exec configmap-example -c nginx -- cat /etc/config/conf.yml
Pod name, container, command.

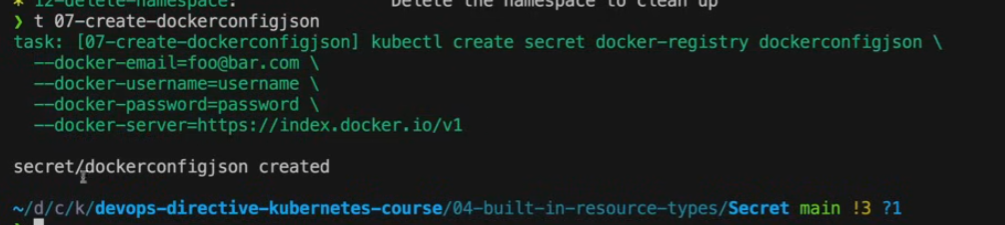

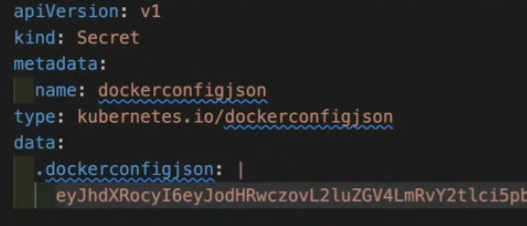

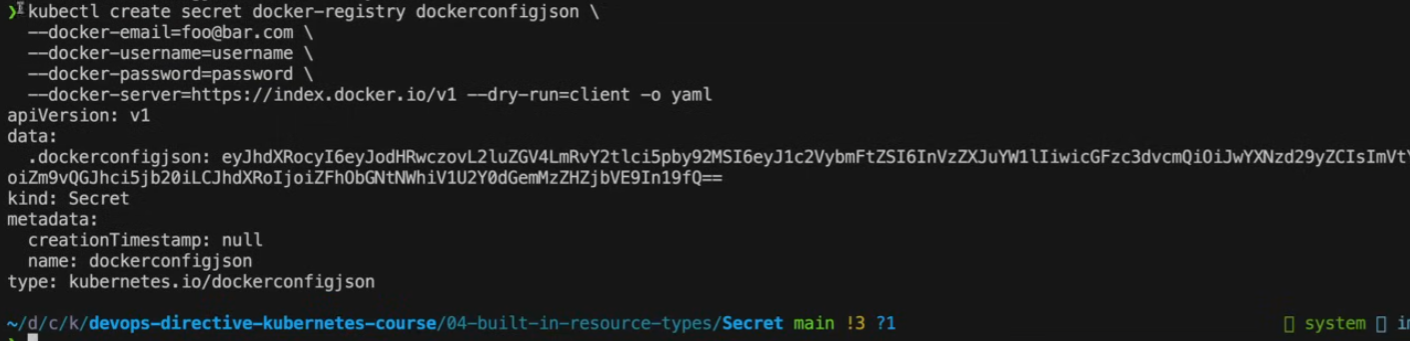

You want to create a config file type of secret like


To simplify you can do it via cli and the add --dry-run=client -o yaml so you can get it ready to copy and paste into a file. Here is comparison where first command creates and other provides it for the file

Direct monitoring with , but better to use Prometheus and Grafana

To apply multiple:
kubectl apply -f 01_pods.yml -f 02_pvc.yml

Status and Errors

Tip

BackOff is incremental increase of wait time before retry

  • ImagePullBackOff initial image pull failed, will BackOff retries
    • ErrImagePull failed to pull image, does not exist or no access
  • CrashLoopBackOff

Q&A

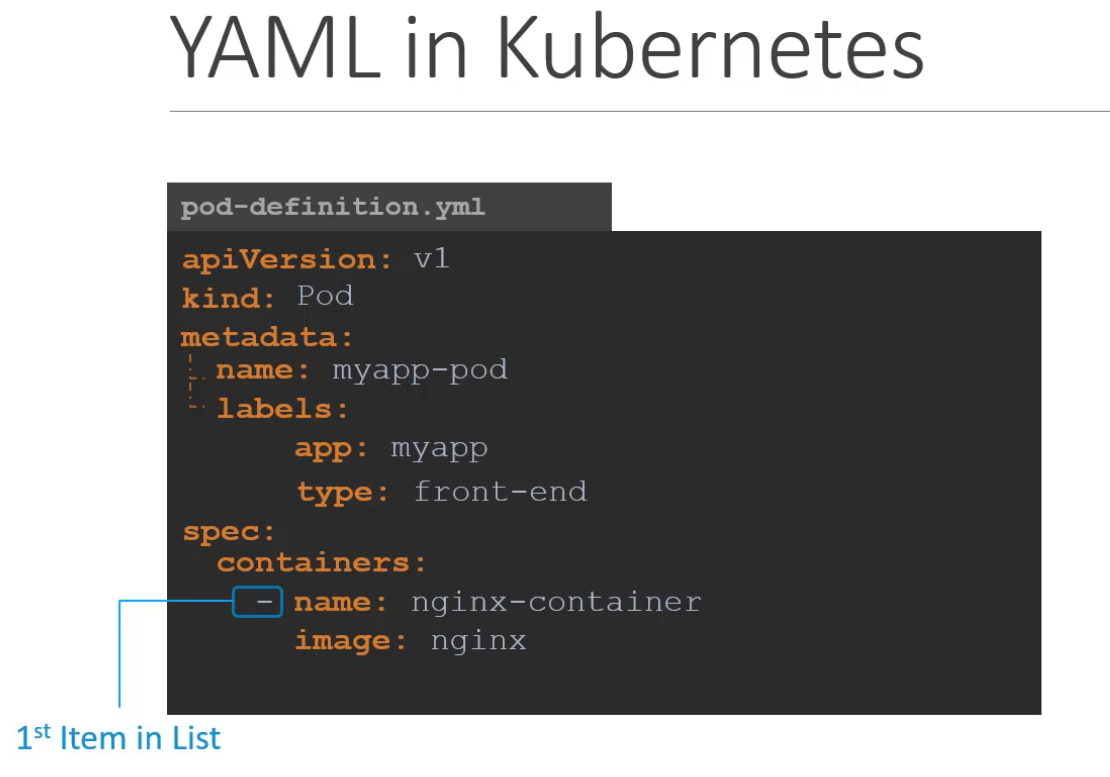

  1. Metadata: name: vs spec: containers: - name:
    1. Name in metadata refers to the pod name, while name in container spec refers to a container’s name.
  2. no matches for kind "ReplicaSet" in version "v1"
    1. You probably made a mistake in apiVersion
  3. . Limits vs Requests
    1. Requests defines how much pods is gonna use and uses this information to find proper node.
    2. Limit restricts how much pods can actually use
    3. If equal, then QoS status becomes “guaranteed”
  4. How to go inside pods and get logs form containers?
    1.
  5. kubectl apply vs kubectl replace
    1. Some resources have immutable fields that apply won’t let you change. For example, a deployment cannot have its selectors changed. Replace can be used in these situations.
  6. x node(s) had untolerated taint
    1. Taints and Tolerations | Kubernetes
    2. If you are in the lab, make sure you aren’t deploying to control plane node. Control plane nodes have taints by default.
