AWS Elastic Load Balancer (ELB)

Amazon Elastic Load Balancer (ELB) - AWS.
Abstracts user from internal infrastructure.
Takes all incoming requests and redirects them to different servers based on load.

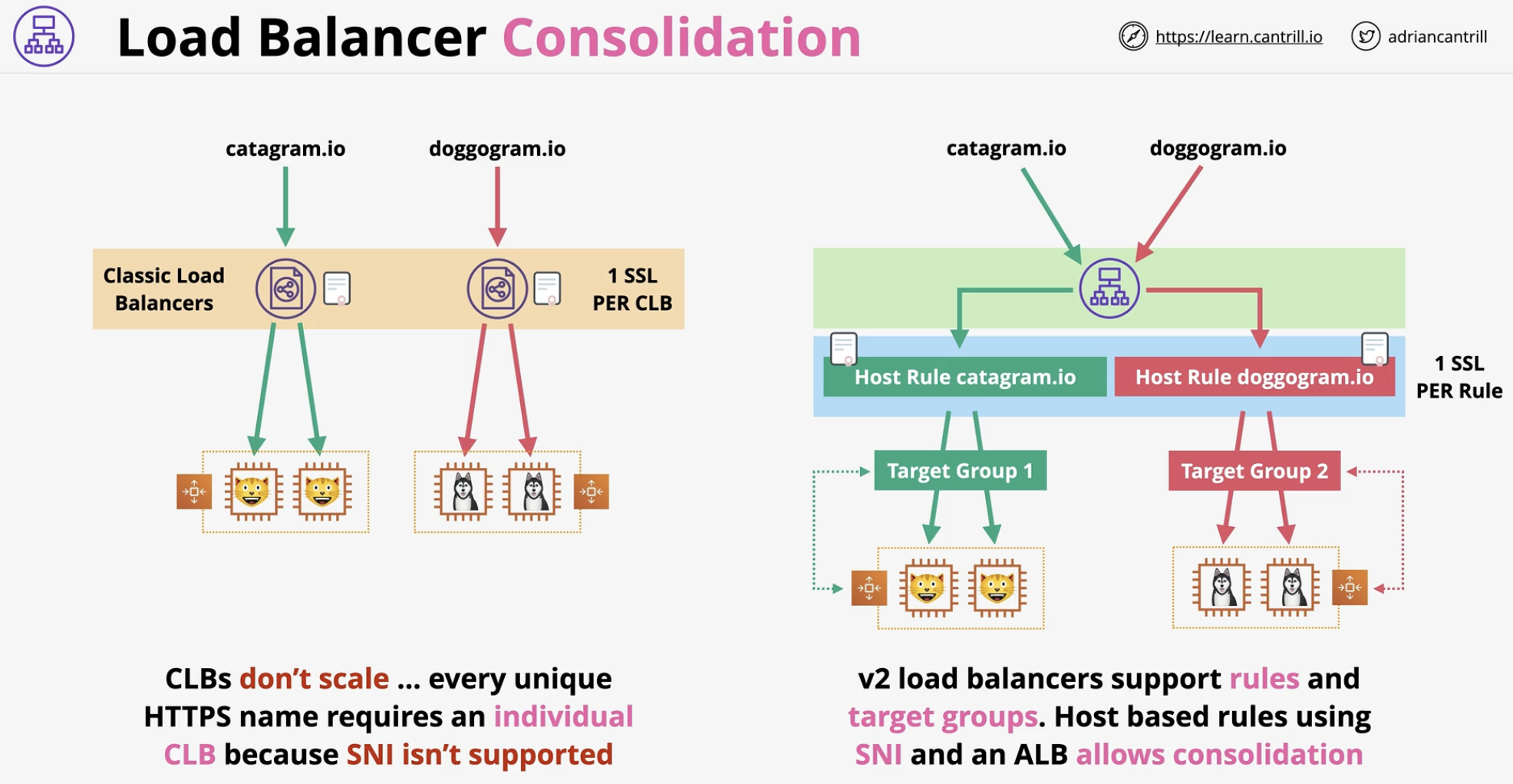

• v1 - Classic Load Balancer, introduced in 2009,
  • Lacking features, 1 SSL certificate per CLB
• v2 - faster, cheaper, supports targeting groups and rules
  • Application Load Balancer (ALB) - L7 Application HTTP/S/WebSocket
  • Network Load Balancer (NLB) - TCP, TLS & UDP
  • Gateway Load Balancer (GWLB)..
    ==Void v1 and use v2==

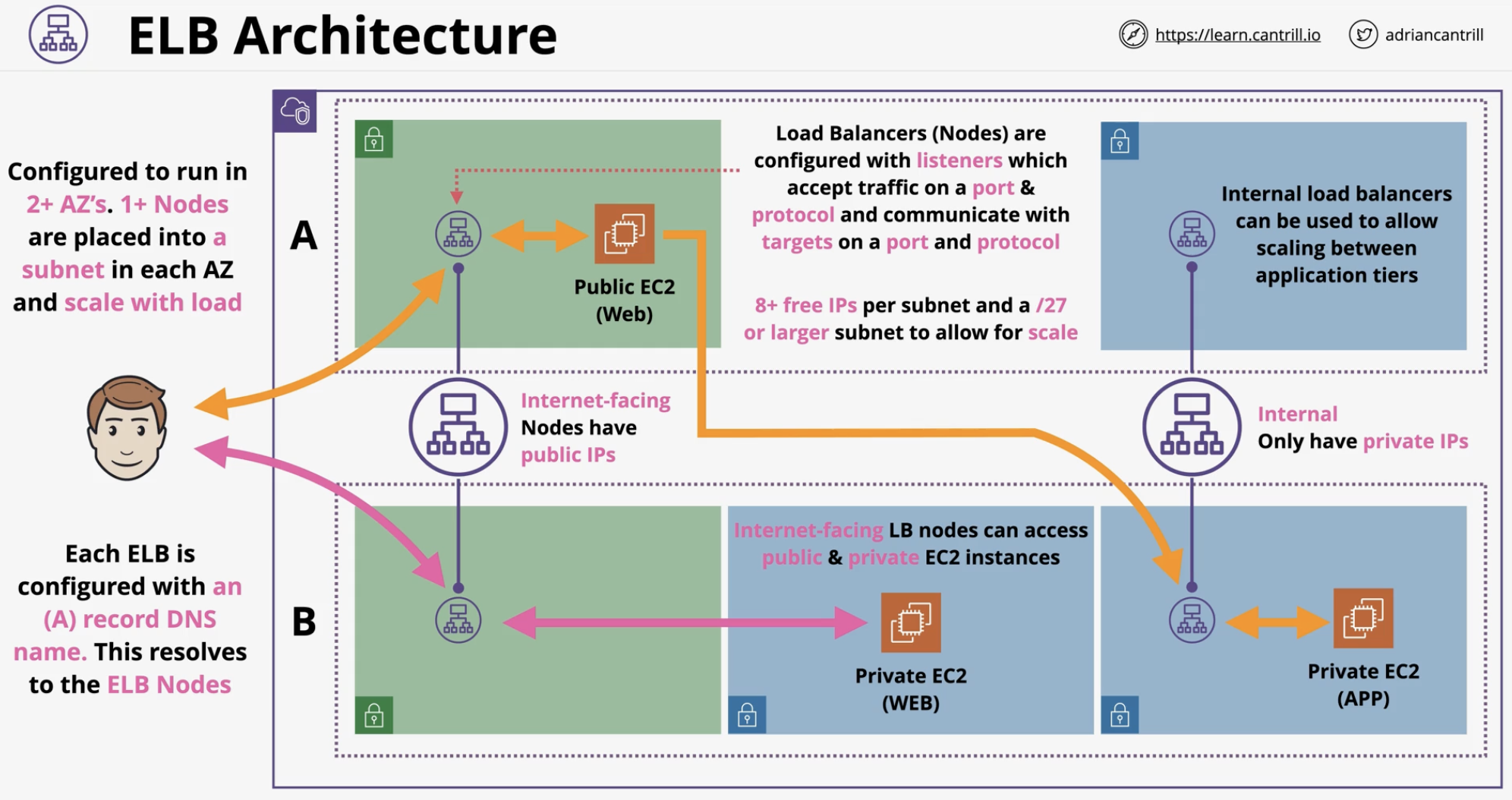

Architecture

ELB appears as a single entity but actually underlines multiple nodes in subnets..AZs you have chosen. Each ELB has an (A) DNS record which resolve to 1+ nodes per AZ.

It’s important to choose whether to use Internet facing or Internal facing balancer, this affects given addresses.

• Internet facing – public + private IP addresses
  • But EC2 instances that are used, do not have to be public
• Internal facing – private only IP addresses
  • Usually used to separate application tiers.

ELB Nodes are configured with listeners which accept traffic on port + protocol and communicate with target on a port + protocol.

8+ free IP addresses are required per subnet i.e a /27 or larger subnet for scale

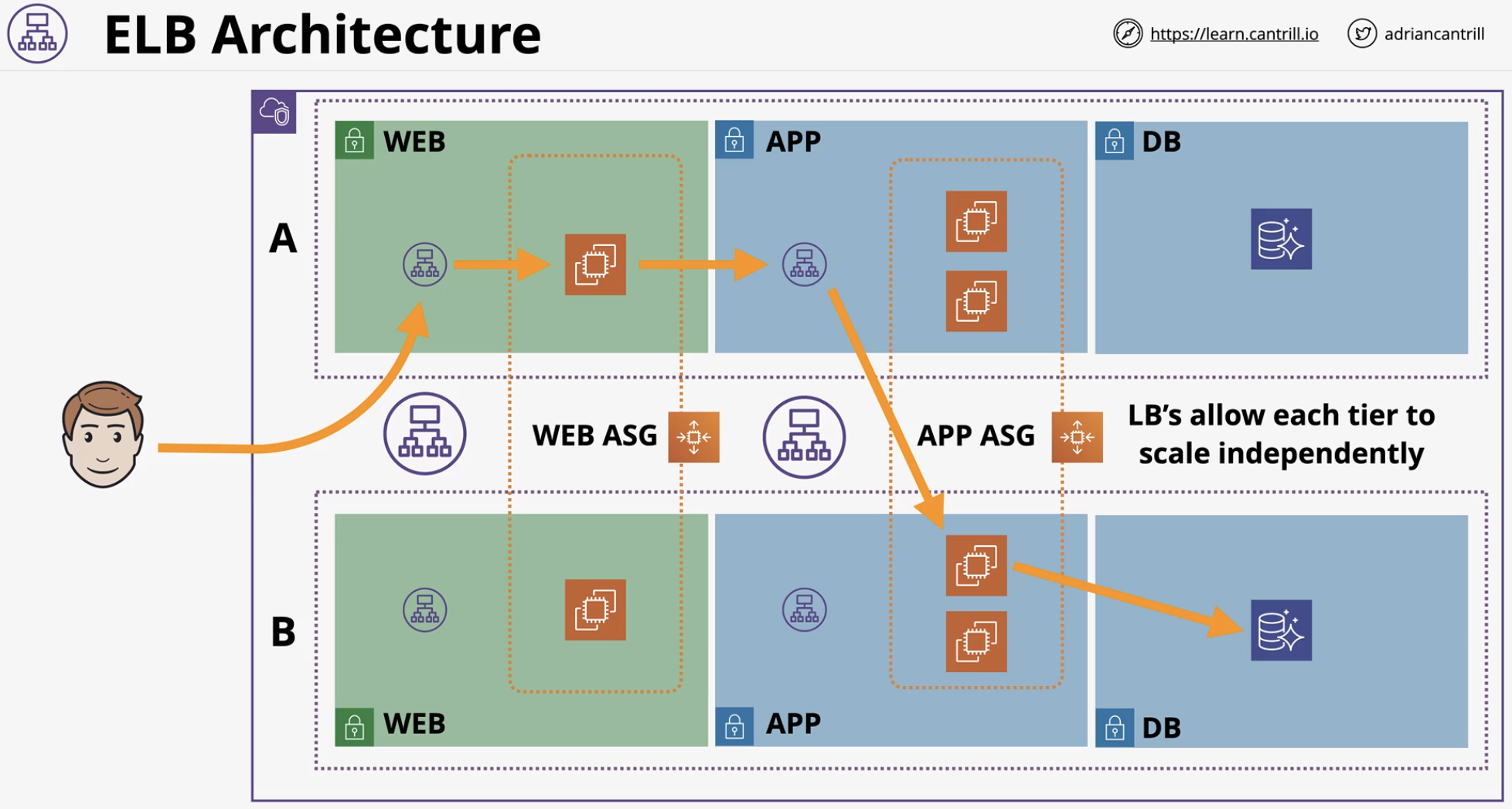

LBs allow each tier to scale independently

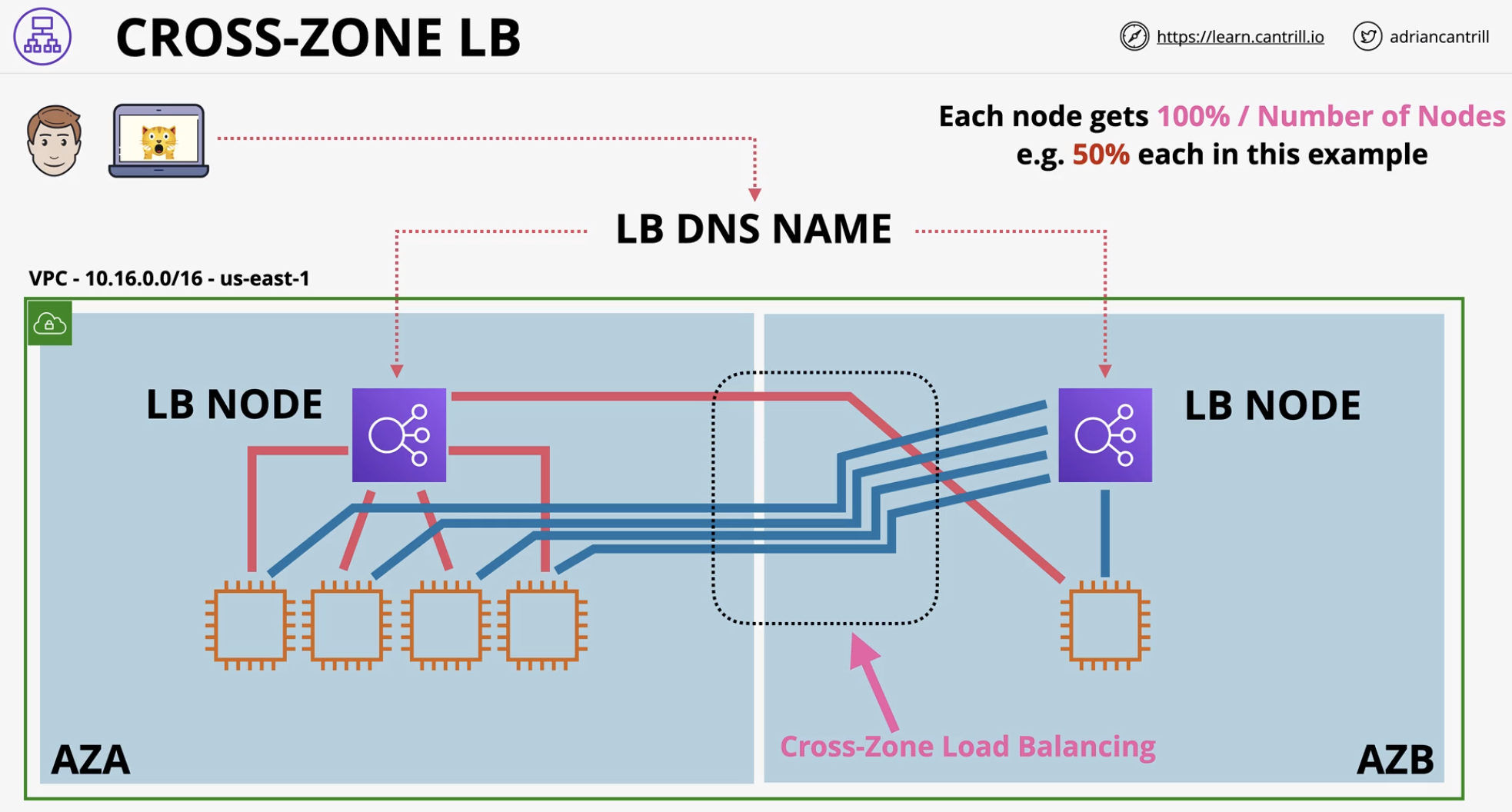

Cross-Zone LB

In usual architecture connections are split equally between nodes.
But nodes in AZ-A may have 4 instances, but nodes in AZ-B only 1 instance.
Cross-Zone LB eliminates this obstacle and allows nodes to distribute connections between instances in other AZs.

This feature is enabled by standard in ALB but I should be aware of it, in some cases uneven distribution of load my come from this feature not being enabled.

ALB vs ELB

| Feature | ENLB------ | -------- |
| Unbroken encryption NLB (ELB)#NLB]] |
| Static IP for white NLB (ELB)#NLB]] |
| The fastest performaNLB (ELB)#NLB]] |
| Not HTTP and HTTPS NLB (ELB)#NLB]] |
| AWS PrivateLink and VPC Endpoint ALB (ELB)#NLB]] |
| Otherwise | ALB |

ALB

• No other L7 protocols other than HTTP/S/WebSocket.
• No TCP/UDP/TLS listeners
• Can understand L7 components: cookies, custom headers, user location, app behavior
• Incoming connections is terminated on ALB no unbroken SSL.
  • New connection is made from LB to the application.
  • No end-to-end unbroken SSL encryption
  • Can’t pass-through connections from ALB to Instances.
• ALL ALBs with HTTPS require SSL certificate.
• ALBs are slower than NLB
• Application health checks are made at L7, aside from checking network connectivity it can make application requests.

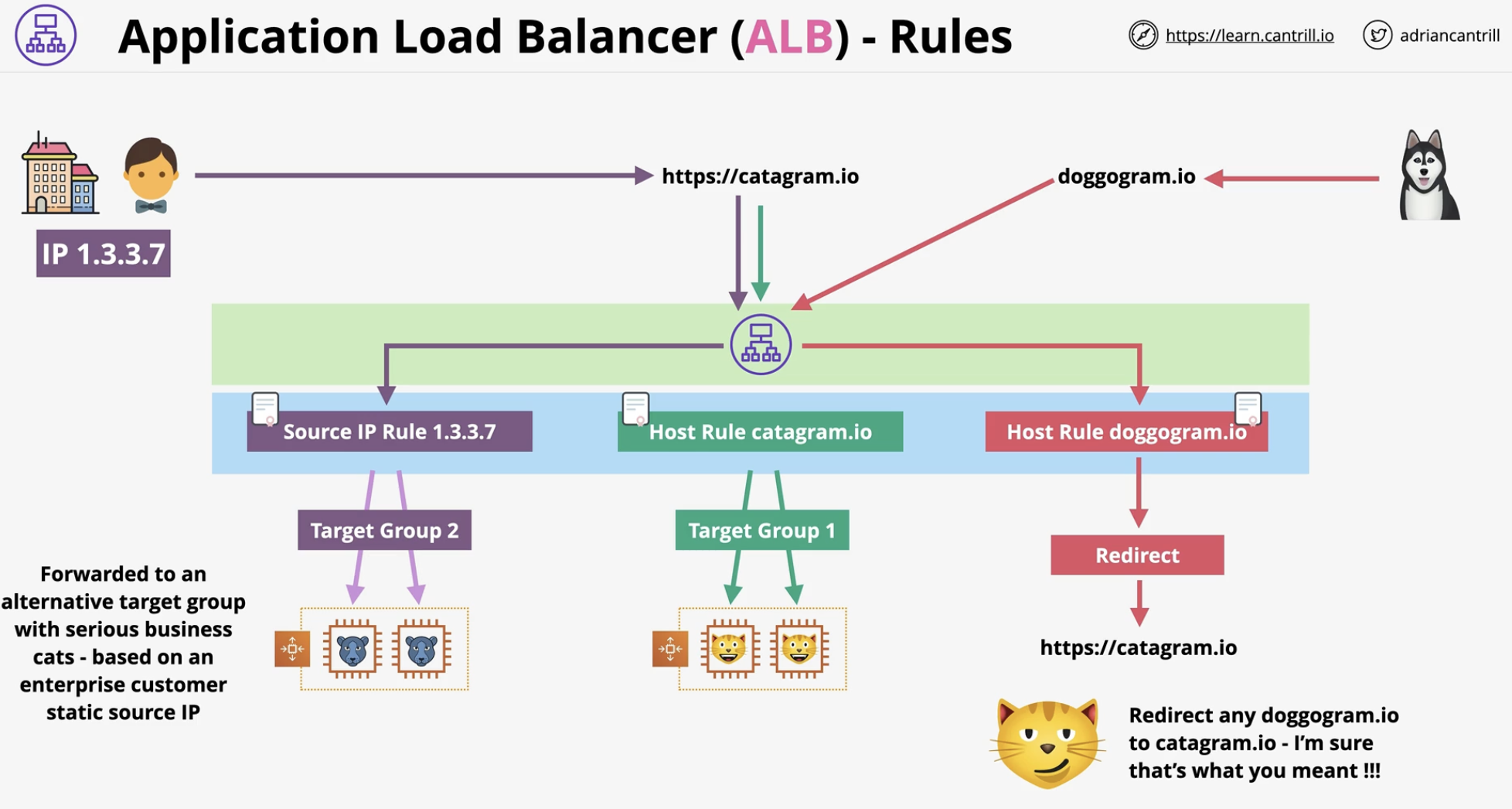

Rules:

• Direct connections which arrive at a listener
• Have priority order
• Default rule = catch-all
• Rule Conditions: host-header, http-header, http-request-method, path-pattern, query-string & source-ip
• Actions: forward, redirect, fixed response, authenticate oidc & authenticate-cognito



NLB

• TCP, UDP, TLS and SSL, TCP_UDP
• No headers, cookies, L7…
• Really fast (millions of RPS, 25% of ALB Latency)
• Ideal for non HTTP/HTTPS, like (SMTP, SSH, Game Servers, financial apps)
• Health check only check ICMP and basic TCP handshaking
• Can have static IP (good for whitelisting)
• Forward TCP to instances, unbroken encryption
• Used with AWS PrivateLink and VPC Endpoint to provide services to other VPCs

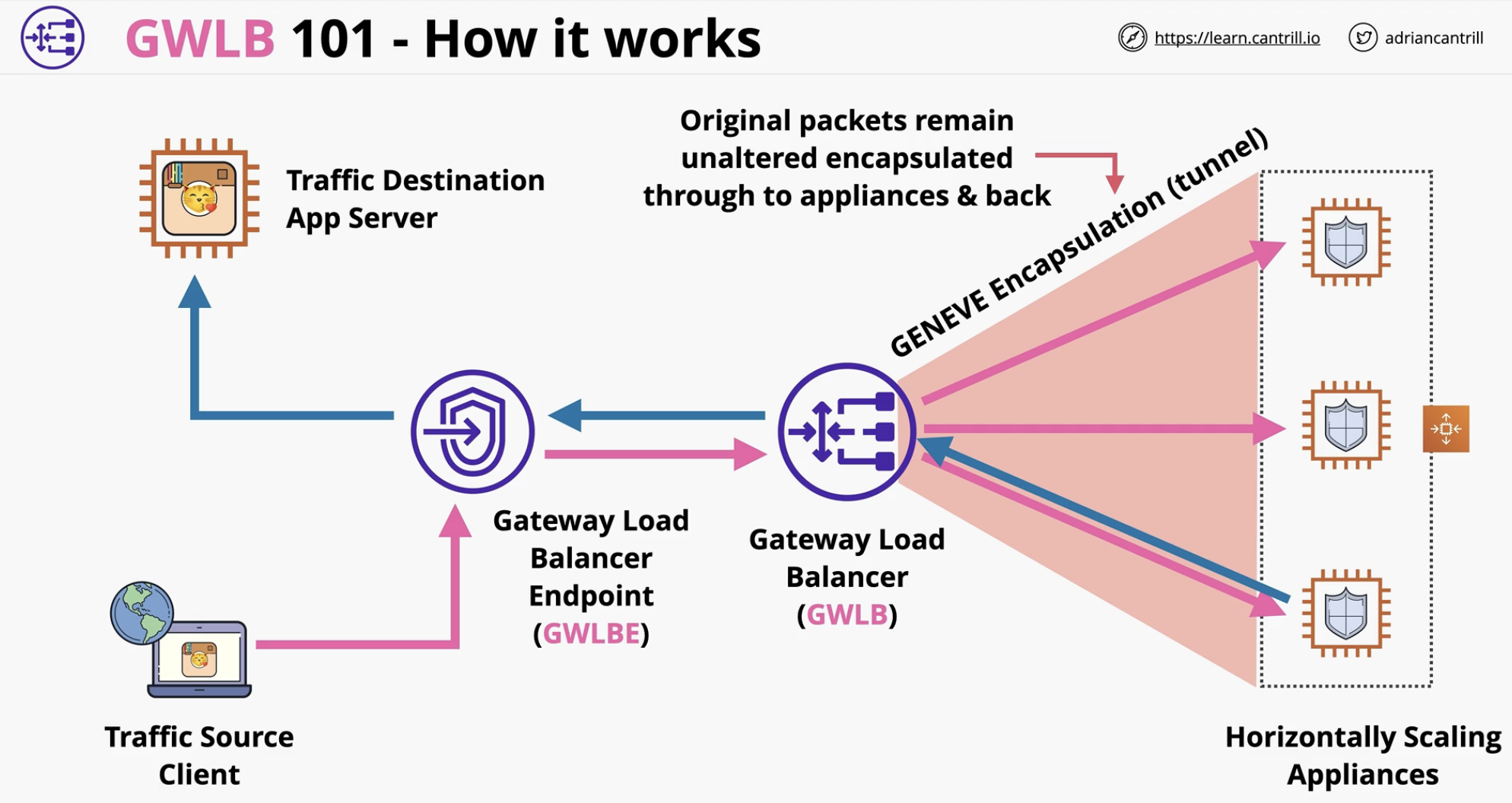

GWLB

Enables running and scaling third party security appliances at scale. Like firewalls, intrusion detection and prevention systems. Inbound and outbound traffic, transparent analysis tools. Can work along with ALB..

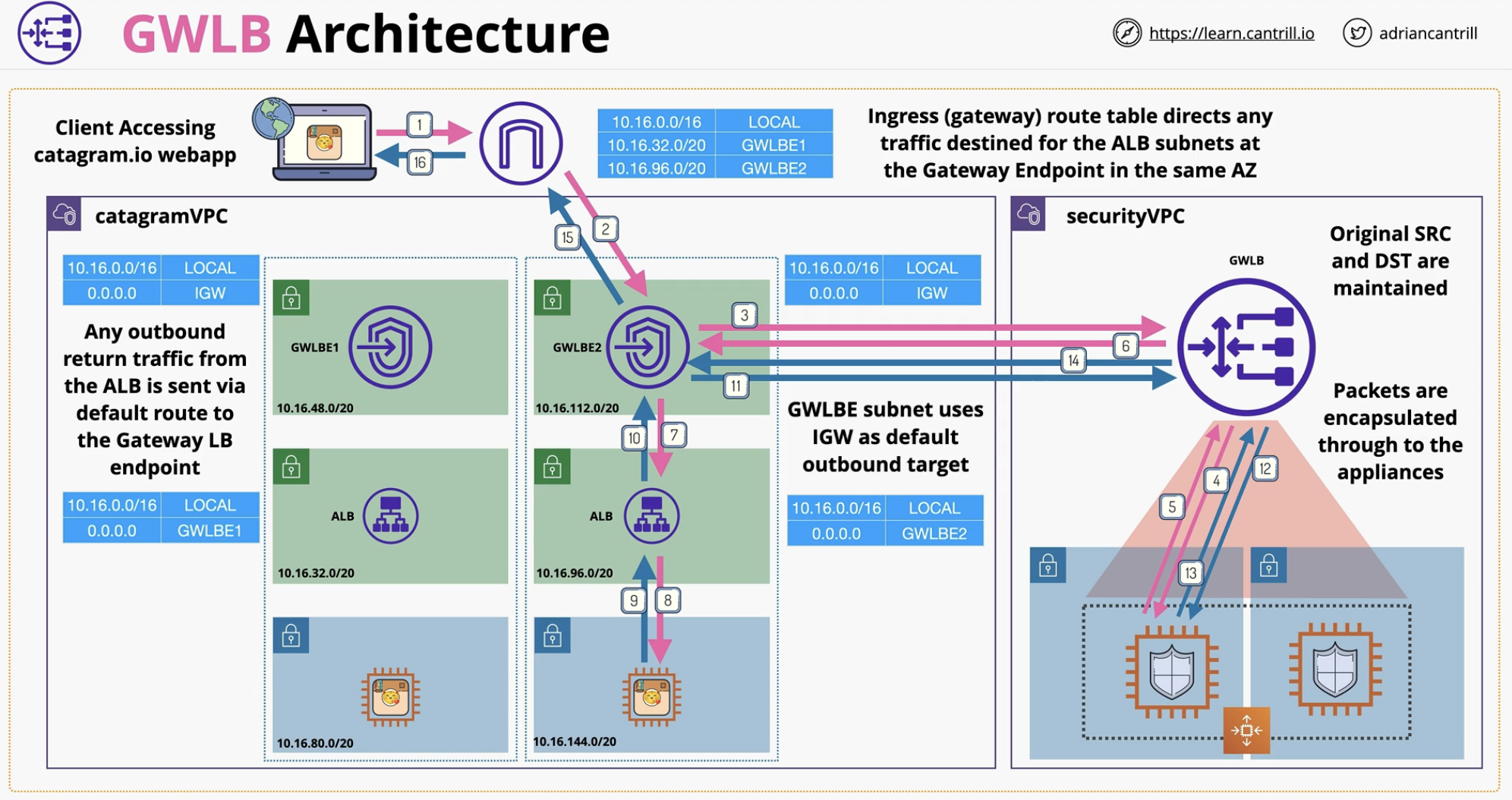

GWLB endpoints - traffic enters and leaves via them (can be added to Route Table)
GWLB balances - across multiple backend appliances.
Use GENEVE tunneling protocol between GWLB and backend instances. Takes traffic from source, encapsulates it and sends it to security appliance, security appliance returns the application and decapsulates it to the App destination server (SRC and DST are maintained). (But when the answer is sent, after scanning, the source IP of the internal instance will be replaced with DNS of the GWLBE)

Has flow Stickiness, so data stream is locked under single appliance
